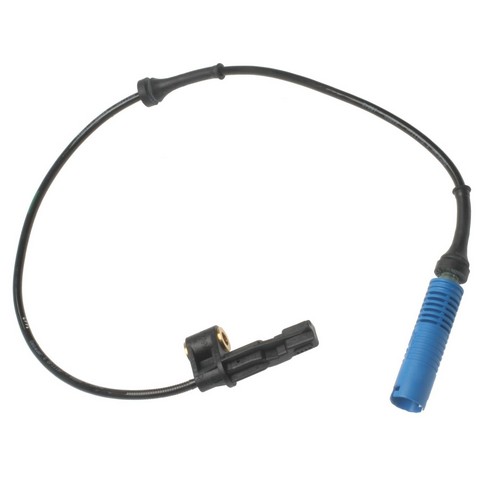

Standard Ignition ALS1831 front right ABS wheel speed sensor for the 2001-2002 BMW Z3 reports wheel speed to the ABS. It sits at the spindle and sends the signal through a harness with a round connector.
- Durable synthetic material made to withstand harsh operating conditions
- Sealed connector that protects against harsh conditions
- Harness length of 27.25 in (692 mm)
- Tested on vehicles for correct integration with electronic safety systems
Quick facts
- Part: Standard Ignition ALS1831 ABS wheel speed sensor
- Fits: 2001-2002 BMW Z3
- Position: Front right
- Condition: New
A lit ABS or traction control warning light, or a wheel speed signal that drops out, can mean a wheel speed sensor is failing. A warning light alone does not prove the sensor is at fault, since damaged wiring is another common cause.
Fits
This listing is one direct-fit sensor for the front right wheel of the 2001-2002 BMW Z3, which takes one in that position; the front left is a separate part.
Specifications
Fit and size
- Position: Front right
- Mounting location: Spindle
- Quantity per vehicle: 1
- Harness length: 27.25 in (692 mm)
- Number of bolt holes: 1
Build and materials
- Connector: round, female, 1 connector
- Terminals: 2, male pin
- Condition: New
- Country of origin: United States
In the box
One ABS wheel speed sensor. Mounting hardware is not included, so plan on a new bolt rather than reusing the old one.
Installation notes
- Location grommets and wire clips are on the harness for correct mounting and routing.
- This saves technicians time during installation.
Interchange: 34526752690 · ABS1924 · ABSC20461 · 532290
This part cross-references / interchanges with the following part numbers:
34526752690, ABS1924, ABSC20461, 532290, ALS1831
Frequently Asked Questions
Is this 2001-2002 BMW Z3 ABS sensor the front right one?
Yes. Standard Ignition ALS1831 is the front right ABS wheel speed sensor for the 2001-2002 BMW Z3, which takes one in this position.
Does this wheel speed sensor come with a mounting bolt?
No. Mounting hardware is not included, though the harness carries location grommets and wire clips for routing; the sensor mounts through one bolt hole.
How long is the harness on the Standard Ignition ALS1831?
The Standard Ignition ALS1831 harness is 27.25 in (692 mm) long. It ends in a round female connector with two male pin terminals.
What can a failing front right wheel speed sensor look like on the dash?
A lit ABS or traction control warning light, or a wheel speed signal that drops out, can come from a failing sensor. A shop can scan the codes to see which wheel is reporting.
Does the ABS1924 number match this front right sensor?
Yes. ABS1924 is on the interchange list for Standard Ignition ALS1831, so it can be used to cross-check this sensor.
