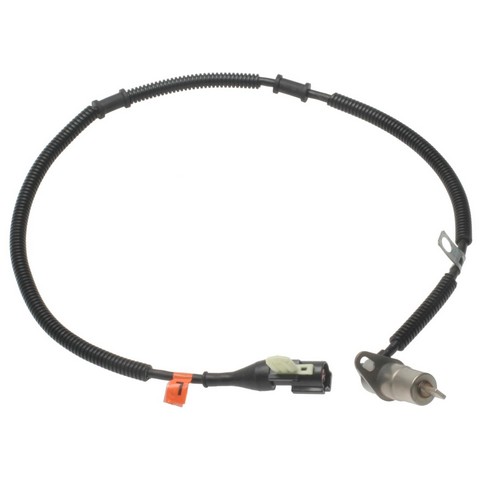

Standard Ignition ALS1844 front left ABS wheel speed sensor for the 2006-2012 Ford F-53 Motorhome Chassis and other vehicles reads wheel speed for the ABS. It mounts to the spindle and sends its signal along the harness to the ABS.
- Constructed from synthetic material to withstand harsh operating conditions
- Grommets and wire clips on the harness hold the wire in its proper mounting and routing
- Tested on vehicles for correct integration with electronic safety systems
- Sealed connector protects the connection in harsh conditions
Quick facts
- Part: Standard Ignition ALS1844 ABS wheel speed sensor
- Fits: 2006-2012 Ford F-53 Motorhome Chassis and other vehicles
- Position: Front left
A worn or failing wheel speed sensor can show up as an ABS warning light or a traction control light. If a failed sensor is the cause, this one replaces it. Before replacing it, look over the harness and connector with the engine off for chafing, cracks or corrosion, since damage there can set off the same lights. A shop can scan the codes to find the cause.
Fits
It fits the 2001-2004 and 2006-2012 Ford F-53 Motorhome Chassis and the 2011-2012 Ford F-59 Commercial Stripped Chassis. The front left position takes one sensor, and the front right side is its own part, ordered separately.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle: 1 for this position
- Mounting location: Spindle
- Mounting type: Bolt mount, 2 bolt holes
- Harness length: 36 in (914 mm)
Build and materials
- Connector: Round, female, 1 connector
- Terminals: 2 female pin terminals
- Country of origin: China
In the box
One ABS wheel speed sensor with its harness, grommets and wire clips. Mounting hardware and a dust shield are not included, so plan on new mounting bolts, since the old ones may not be reusable.
Frequently Asked Questions
Does the Standard Ignition ALS1844 fit the 2011-2012 Ford F-59 Commercial Stripped Chassis?
Yes. Standard Ignition ALS1844 is a front left ABS wheel speed sensor for the 2011-2012 Ford F-59 Commercial Stripped Chassis and also for the 2006-2012 Ford F-53 Motorhome Chassis.
Does the ALS1844 ABS sensor come with mounting bolts?
No. This Standard Ignition ALS1844 sensor comes without mounting hardware or a dust shield, so plan on new bolts. Grommets and wire clips are already on the harness.
How long is the harness on this front left ABS sensor?
The harness is 36 inches (914 mm) long. The sensor bolts to the spindle through its 2 bolt holes.
What signs can point to a failing front left wheel speed sensor?
An ABS warning light or a traction control light can come on. A shop can scan the codes to see which wheel is reporting the fault.
Does the ALS1844 use a sealed connector?
Yes. The Standard Ignition ALS1844 has a sealed round female connector with two pin terminals, made to protect the connection in harsh conditions.
