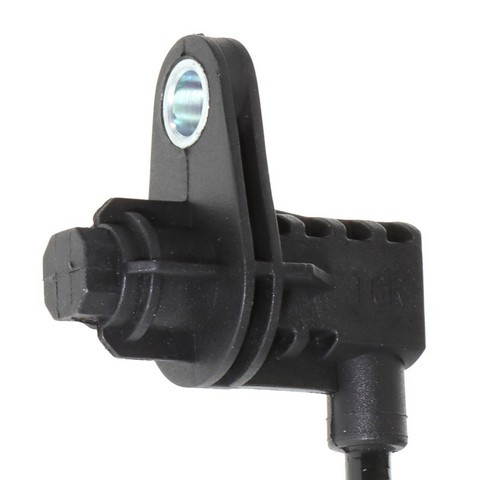

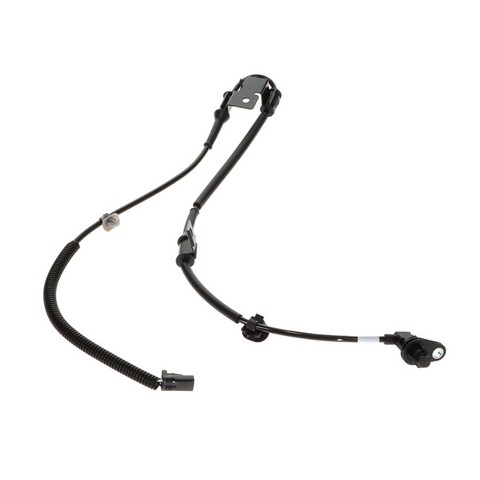

Standard Ignition ALS1966 front left ABS wheel speed sensor for the 2010-2013 Kia Forte and other vehicles sends wheel speed signals to the ABS module. It mounts on the spindle with bolts through three bolt holes.
- Synthetic material made to withstand harsh operating conditions
- Grommets and wire clips on the harness for mounting and routing
- Tested on vehicles for proper fit and correct integration with electronic safety systems
- Sealed connector for protection in harsh conditions
Quick facts
- Part: Standard Ignition ALS1966 ABS wheel speed sensor
- Fits: 2010-2013 Kia Forte and other vehicles
- Position: Front left
- Condition: New
An ABS or traction control warning light, or an ABS that stops working, can mean this sensor is worn, though a damaged tone ring or a wiring fault can be behind the same signs. If a failed sensor is the cause, this part replaces it.
Fits
It fits the 2010-2013 Kia Forte, the 2010-2013 Kia Forte Koup and the 2013 Kia FORTE5. This listing is one sensor for the front left wheel, and the front right is a separate part. The 2010-2013 Kia Forte takes one sensor at the front left position.
Specifications
Fit and size
- Position: front left
- Quantity per vehicle: 1
- Mounting location: spindle
- Number of bolt holes: 3
- Harness length: 914 mm (37 in)
- Connector: rectangular, male, 1 connector
Build and materials
- Mounting type: bolt mount
- Terminals: 2 blade terminals, female
- Material: synthetic
- Condition: new
- Country of origin: China
In the box
One ABS wheel speed sensor with its harness, grommets and wire clips. Mounting hardware and a dust shield are not included, so plan on new bolts, since the old ones may not be reusable.
Frequently Asked Questions
Does the Standard Ignition ALS1966 fit the 2013 Kia FORTE5?
Yes. Standard Ignition ALS1966 is a front left sensor and fits the 2013 Kia FORTE5 at the front left wheel.
Does the Standard Ignition ABS wheel speed sensor come with mounting bolts?
No. The Standard Ignition ALS1966 does not include mounting hardware or a dust shield. The harness does carry grommets and wire clips for mounting and routing.
How long is the harness on this front left ABS sensor?
The harness is 914 mm (37 in) long. It ends in one rectangular connector with two blade terminals.
What can a failing front left ABS sensor show up as on the dash?
An ABS or traction control warning light can come on, and the ABS may stop working. A shop can read the codes and test the sensor.

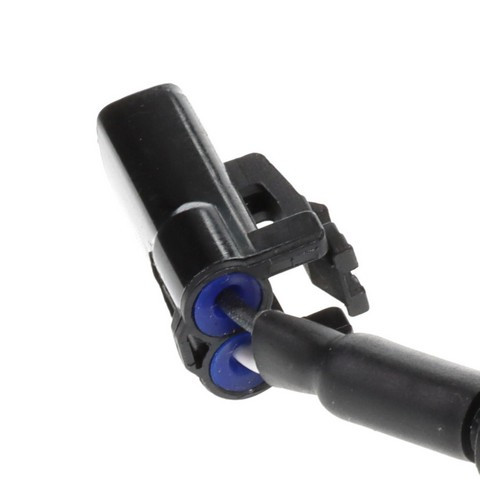

Is the connector on the ALS1966 sensor sealed?
Yes. Standard Ignition ALS1966 uses a sealed connector for protection in harsh conditions, and the sensor is tested on vehicles for proper fit and integration with electronic safety systems.
