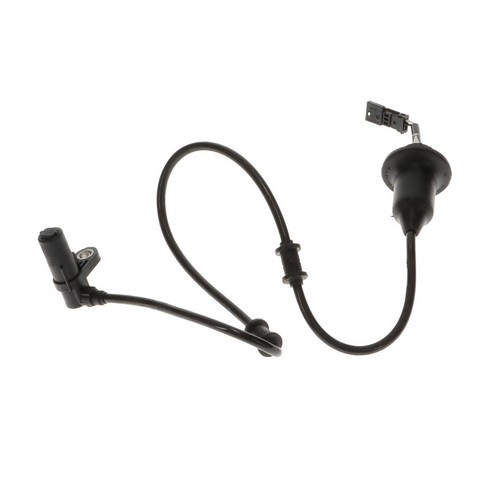

Standard Ignition ALS2207 rear left ABS wheel speed sensor for the 2000-2003 Mercedes-Benz S430 and other vehicles sends wheel speed signals to the ABS. It is engineered specifically for Mercedes-Benz vehicles.
- Durable synthetic material made to withstand harsh operating conditions
- Sealed connector for protection in harsh conditions
- Tested on vehicles for proper fit and correct integration with electronic safety systems
- Engineered for precision performance, durability and a long service life
Quick facts
- Part: Standard Ignition ALS2207 ABS wheel speed sensor
- Fits: 2000-2003 Mercedes-Benz S430 and other vehicles
- Position: Rear left
- Material: Synthetic
- Condition: New
An ABS or traction control warning light can mean this sensor is worn or failing, though damaged wiring or a damaged tone ring can be behind it too, so find the cause before replacing the sensor.
Fits
The 2000-2003 Mercedes-Benz S500 and the 2001-2002 Mercedes-Benz S55 AMG take it too, along with other vehicles, and it is an OE replacement for them. This listing is one sensor for the rear left wheel, which takes a single sensor; the rear right is a separate part. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Rear left
- Quantity per application: 1
- Harness length: 25 in (698.5 mm)
- Mounting location: Spindle

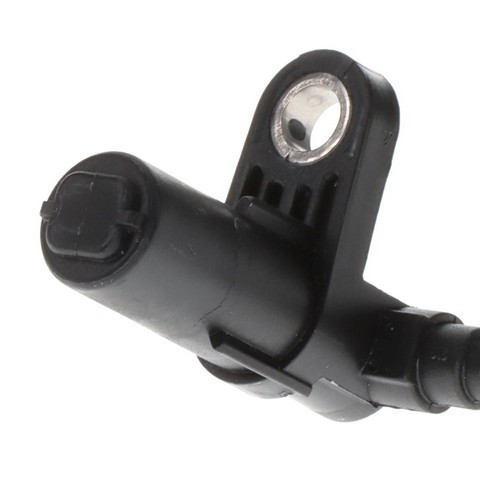

- Mounting type: Bolt mount, 1 bolt hole
Build and materials
- Condition: New
- Material: Synthetic

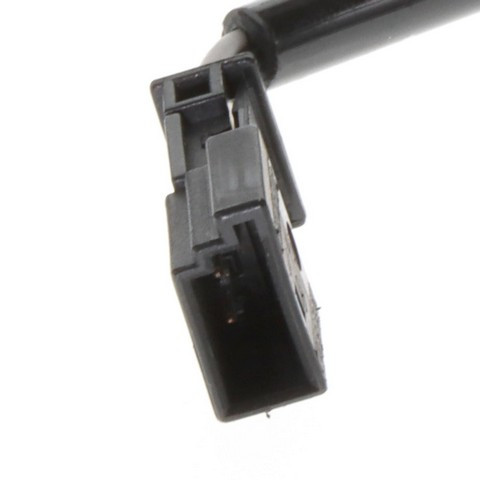

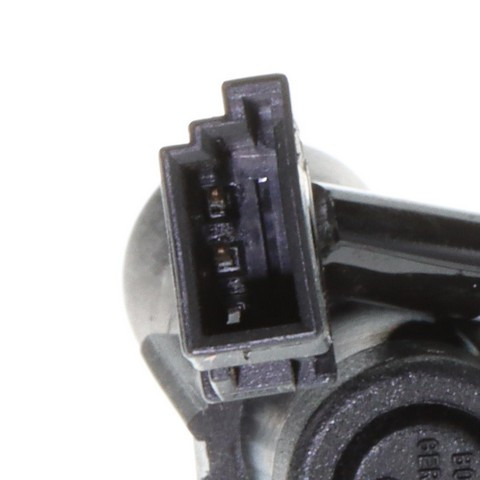

- Connector: Rectangular, female, 1 connector, sealed
- Terminals: 2, male pin
- Wiring harness: Included
- Country of origin: Germany
In the box
One ABS wheel speed sensor with its wiring harness. Mounting hardware and a dust shield are not included, so plan on a new mounting bolt, since the old one may not be reusable.
Installation notes
- Location grommets and wire clips come on the harness for mounting and routing, which saves technician time.
Interchange: ABS2300 · ABSD31035 · 532667 · 2205400917
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
ABS2300, ABSD31035, 532667, 2205400917, ALS2207
Frequently Asked Questions
Is the Standard Ignition ALS2207 right for the 2000-2003 Mercedes-Benz S500?
Yes. Standard Ignition ALS2207 is the rear left ABS wheel speed sensor for the 2000-2003 Mercedes-Benz S500. The rear right wheel takes its own sensor.
Does this Standard Ignition ABS wheel speed sensor come with its wiring harness?
Yes. The harness is included, with location grommets and wire clips on it. Mounting hardware and a dust shield are not included, so plan on a new mounting bolt.
How long is the harness on the Standard Ignition ALS2207?
The Standard Ignition ALS2207 harness is 25 inches (698.5 mm) long. It ends in a rectangular female connector with two male pin terminals.
Which warning lights can come on with a failing ABS wheel speed sensor?
An ABS warning light or a traction control light can come on when the sensor fails. A shop can test the sensor signal.
Does the Standard Ignition ALS2207 interchange with ABS2300?
Yes. ABS2300 is one of the numbers this sensor replaces, along with ABSD31035, 532667 and 2205400917.
