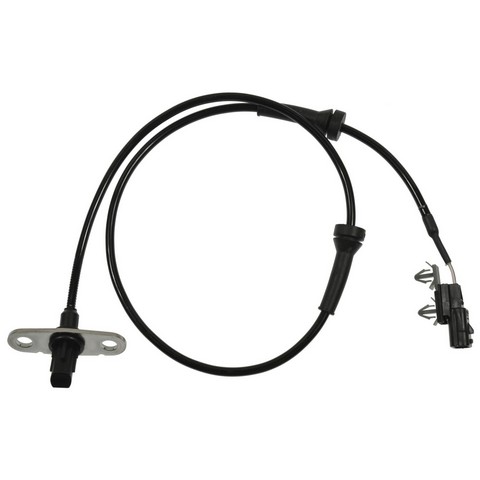

Standard Ignition ALS2267 rear left ABS wheel speed sensor for the 2012-2021 Nissan NV1500 and other vehicles reads how fast the wheel turns and reports it to the ABS. It bolts onto the spindle through a flange.
- Durable synthetic material made to withstand harsh operating conditions
- Sealed connector for protection in harsh conditions
- Tested on vehicles for proper fit and correct integration with electronic safety systems
- Grommets and wire clips on the harness for proper mounting and routing
Quick facts
- Part: Standard Ignition ALS2267 ABS wheel speed sensor
- Fits: 2012-2021 Nissan NV1500 and other vehicles
- Position: Rear left
- Condition: New
A wheel speed sensor that stops reporting can set an ABS warning light, and the traction control light may come on with it. If this sensor is the cause, this one replaces it; a shop can read the ABS codes to find which wheel is reporting the fault before parts are ordered.
Fits
It also fits the 2012-2021 Nissan NV2500 and the 2012-2021 Nissan NV3500. This listing is one sensor for the rear left wheel. A 2012-2021 Nissan NV1500 takes one in that spot, and the rear right wheel has its own sensor that is ordered separately.
Specifications
Fit and size
- Position: Rear left
- Quantity per vehicle: 1 (rear left)
- Mounting location: Spindle

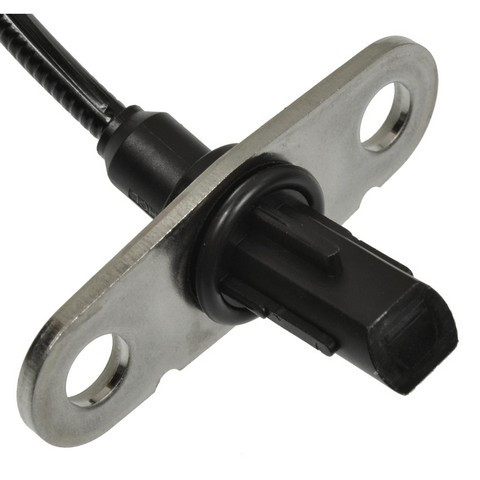

- Mounting type: Flange, 2 bolt holes
- Attachment method: Bolt on
- Harness length: 32 in (867 mm)
- Connector: Rectangular, female, 1 connector
- Terminals: 2, male, mini-blade
Build and materials
- Condition: New
- Wiring harness: Included
- Country of origin: China
In the box
One ABS wheel speed sensor with its wiring harness. Mounting hardware, a dust shield and a mounting bracket are not included, so plan on new bolts, since the old ones may not be reusable.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Standard Ignition ALS2267 fit the 2012-2021 Nissan NV3500?
Yes. Standard Ignition ALS2267 is the rear left ABS wheel speed sensor for the 2012-2021 Nissan NV3500, and the rear right wheel takes its own sensor.
Does this Standard Ignition ABS wheel speed sensor come with its wiring harness?
Yes. The Standard Ignition ALS2267 includes its wiring harness, with grommets and wire clips on it for mounting and routing.
What kind of connector does this rear left ABS sensor use?
It has one rectangular female connector with two male mini-blade terminals. The connector is sealed for protection in harsh conditions.
Does this wheel speed sensor come with mounting bolts?
No. Mounting hardware is not included, so plan on new bolts; the old ones may not be reusable.
Where does this ABS wheel speed sensor mount, and how long is its harness?
It bolts to the spindle through a flange with two bolt holes. The wiring harness is 32 inches (867 mm) long.
