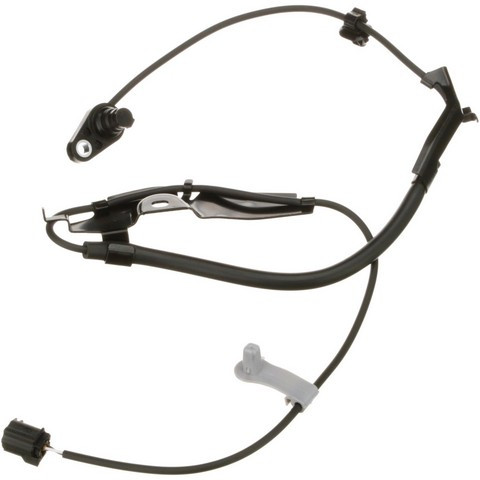

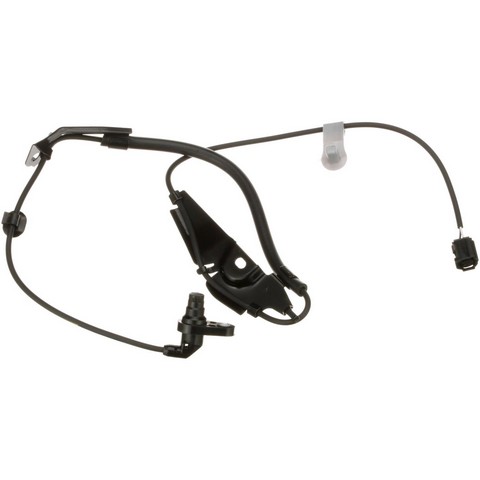

Standard Ignition ABS Wheel Speed Sensor P/N:ALS2317

Be the first to review this product
$91.99
MPN: ALS2317
UPC: 727943166548
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Standard Ignition ABS Wheel Speed Sensor P/N:ALS2317
Standard Ignition ABS Wheel Speed Sensor P/N:ALS2317
$91.99

Feed accurate wheel-speed data to your ABS and traction-control systems with the Standard Ignition ABS Wheel Speed Sensor ALS2317. This front right sensor is a direct-fit replacement for the 2013-2018 Lexus ES300H [All] and ES350 [All], the 2013-2018 Toyota Avalon [All], and the 2012-2017 Toyota Camry [All]. It monitors the rotation of its wheel and sends that signal to the electronic control module. If a faulty sensor is the cause of an ABS or traction-control warning light, this replaces it.

  • Durable build: constructed from high-quality, durable synthetic material made to withstand harsh operating conditions.
  • Ready to route: OE location grommets and wire clips are included on the 43 in (960 mm) harness for proper mounting and routing, and OE-style sealed connectors protect against harsh conditions.
  • Application-specific: engineered for Lexus and Toyota vehicles and tested on-vehicle for proper fit and correct integration with electronic safety systems.
  • Fit details: flange mount at the spindle location with 3 bolt holes; a rectangular connector with 2 female blade terminals. Dust shield and mounting hardware are not included. Country of origin: Thailand.

Interchange: ABS2401 · SU15543 · 532769 · 8954206040 · 8954206120 · 8954233100 · 8954233110 · 8954233120

This part cross-references / interchanges with the following part numbers:

ABS2401, SU15543, 532769, ALS2317, 8954206040, 8954206120, 8954233100, 8954233110, 8954233120

Frequently Asked Questions

Which vehicles does the ALS2317 fit?

It's a direct-fit replacement for the 2013-2018 Lexus ES300H [All] and ES350 [All], the 2013-2018 Toyota Avalon [All], and the 2012-2017 Toyota Camry [All]. See the Buyer's Guide tab to confirm your vehicle.

What position is this sensor for?

This is the front right ABS wheel speed sensor, mounted at the spindle with a flange mount and 3 bolt holes.

Does it include a wiring harness?

Yes. The harness is included and measures 43 in (960 mm), with OE location grommets and wire clips for proper mounting and routing plus OE-style sealed connectors.

Are a dust shield and mounting hardware included?

No. The dust shield and mounting hardware are not included. Consult the vehicle service information for the correct fasteners and whether they may be reused.

What does an ABS wheel speed sensor do?

It measures how fast its wheel is turning and sends that signal to the control module. If a failed sensor is the cause of an ABS or traction-control warning light, this part replaces it.
