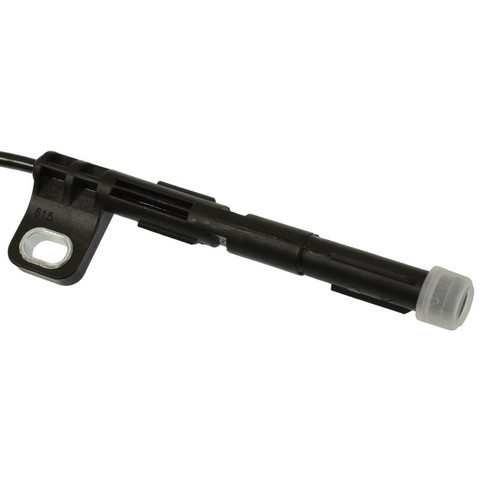

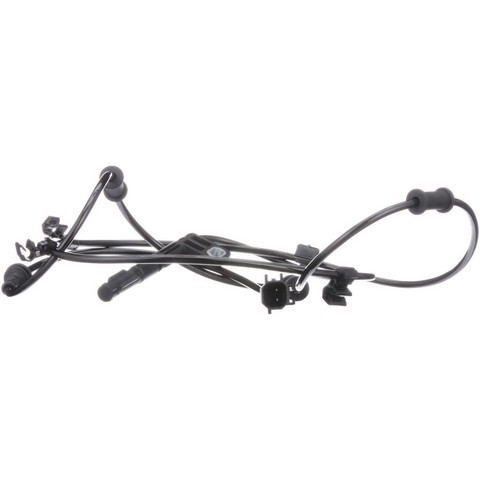

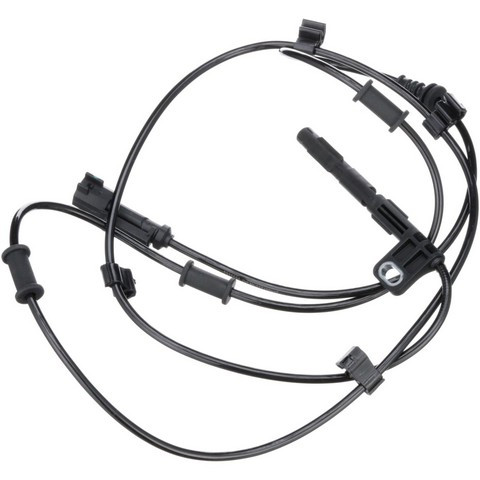

Standard Ignition ALS2815 rear right ABS wheel speed sensor for the 2013-2024 Ram 4500 and other vehicles senses wheel speed for the ABS. It bolts to the spindle at that wheel.
- Durable synthetic material made to withstand harsh operating conditions
- Tested on vehicles for correct integration with electronic safety systems
- Sealed connector for protection in harsh conditions
Quick facts
- Part: Standard Ignition ALS2815 ABS wheel speed sensor
- Fits: 2013-2024 Ram 4500 and other vehicles
- Position: Rear right
- Condition: New
An ABS warning light on the dash, or ABS that stops working, can mean a wheel speed sensor has failed. Before you replace this sensor, rule out a damaged harness, a loose connector or a damaged tone ring, since any of those can also set the light, and a shop can read the codes to find the wheel.
Fits
This sensor fits the 2013-2024 Ram 4500 and the 2013-2024 Ram 5500. This listing is one sensor for the rear right wheel; a 2013-2024 Ram 5500 takes one at this position, and the rear left sensor on that axle is a separate part.
Specifications
Fit and size
- Position: rear right
- Quantity per vehicle: 1
- Mounting: bolt mount on the spindle, 1 bolt hole
- Harness length: 70.25 in (1784 mm)
- Connector: 1, with 2 terminals
Build and materials
- Condition: new
- Connector: female, octagon shape
- Terminals: male, mini-blade
- Wiring harness: included
- Country of origin: China
In the box
One ABS wheel speed sensor with its wiring harness. Mounting hardware, a mounting bracket and a dust shield are not included, so plan on a new mounting bolt because the old one may not be reusable.
Installation notes
- Grommets and wire clips come on the harness for mounting and routing, which saves installation time.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Standard Ignition ALS2815 fit the 2013-2024 Ram 5500?
Yes. The Standard Ignition ALS2815 rear right ABS wheel speed sensor fits the 2013-2024 Ram 5500 as well as the 2013-2024 Ram 4500.
Does this ABS wheel speed sensor come with a mounting bolt?
No. Mounting hardware, a mounting bracket and a dust shield are not included. The sensor comes with its wiring harness, which carries grommets and wire clips.
How long is the harness on the Standard Ignition ALS2815?
The harness is 70.25 in (1784 mm) long. It ends in one female octagon connector with two male mini-blade terminals.
What can a failing rear right ABS wheel speed sensor look like?
An ABS warning light can come on, or the ABS may stop working. A shop can read the stored codes to see which wheel the fault is on.
Is the ALS2815 a bolt-on sensor?
Yes. The Standard Ignition ALS2815 uses a bolt mount at the spindle with one bolt hole.
