Front Right ABS Wheel Speed Sensor for 2020-2022 Toyota C-HR - Standard Ignition ALS3338

$373.99

Standard Ignition ABS Wheel Speed Sensor ALS3338

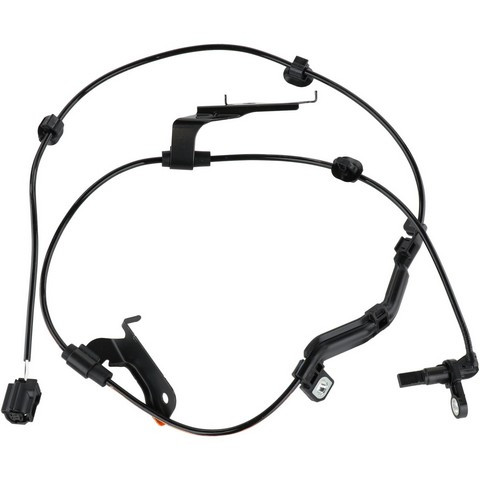

Standard Ignition ABS Wheel Speed Sensor ALS3338 - view 2

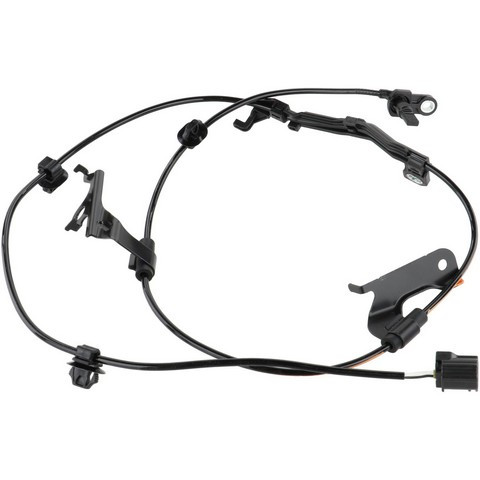

Standard Ignition ABS Wheel Speed Sensor ALS3338 - view 3

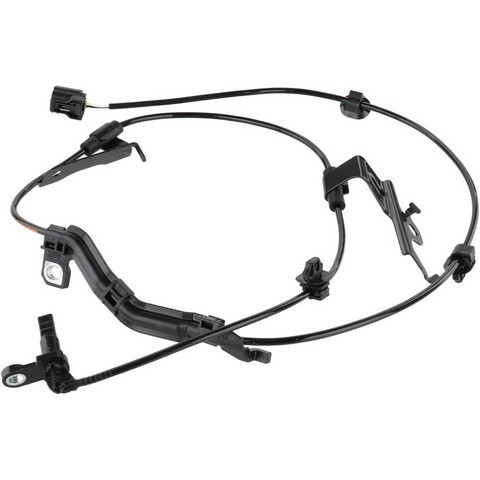

Standard Ignition ABS Wheel Speed Sensor ALS3338 - view 4

Standard Ignition ABS Wheel Speed Sensor ALS3338 - view 5

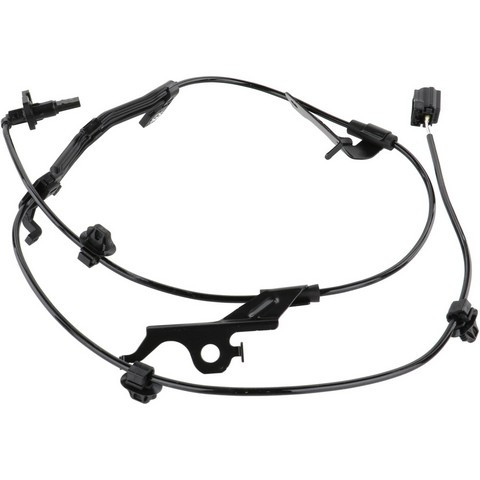

Standard Ignition ABS Wheel Speed Sensor ALS3338 - view 6

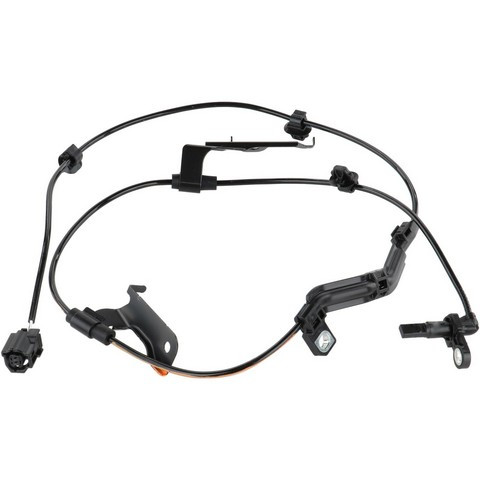

Standard Ignition ABS Wheel Speed Sensor ALS3338 - view 7

Part number: ALS3338

UPC: 033086724799

Condition: New

Weight: 0.47 LBS

Item Package Quantity: 1

$373.99

Current Stock: 10

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

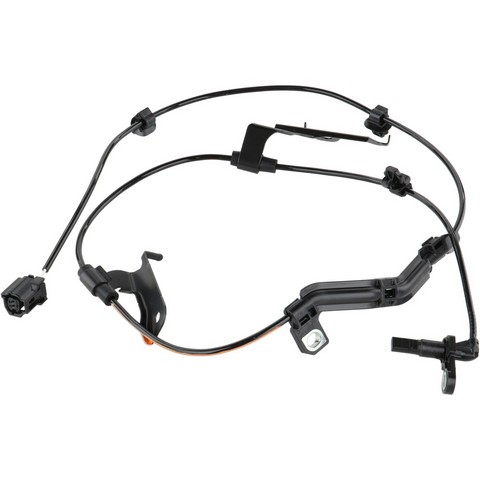

Standard Ignition ABS Wheel Speed Sensor P/N:ALS3338

$373.99

Description

Standard Ignition ALS3338 front right ABS wheel speed sensor for the 2020-2022 Toyota C-HR reads wheel speed for the ABS. The ABS and related electronic safety systems work from that reading.

Synthetic material construction made to withstand harsh operating conditions
Sealed connector for protection in harsh conditions
Tested on vehicles for correct integration with electronic safety systems
Harness length of 49.5 in (1257 mm)

Quick facts

Part: Standard Ignition ALS3338 ABS wheel speed sensor
Fits: 2020-2022 Toyota C-HR
Position: Front right
Material: Synthetic material
Condition: New

A lit ABS warning light or a wheel-speed signal that drops out can mean a sensor is failing. A damaged tone ring, a corroded connector or a chafed harness can be behind an ABS light too, so pin down the cause before buying a sensor.

Fits

It fits the 2020-2022 Toyota C-HR, which takes one sensor at this position. This listing is one sensor for the front right wheel; the front left is a separate part ordered on its own.

Specifications

Fit and size

Position: Front right
Quantity per vehicle: 1
Mounting: Bolt mount at the wheel, 4 bolt holes
Harness length: 49.5 in (1257 mm)

Build and materials

Material: Synthetic material

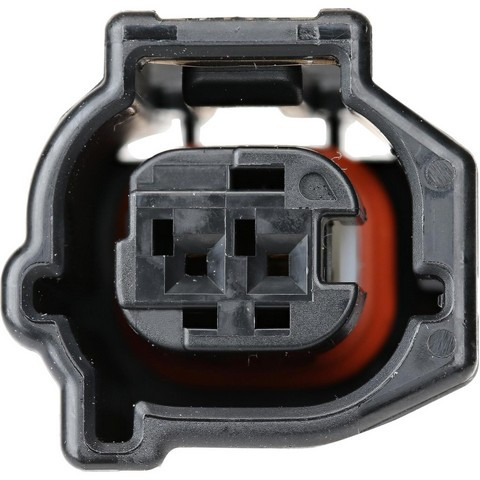

Connector: 1 oval, female
Terminals: 2, pin socket, female
Condition: New
Country of origin: China

In the box

One ABS wheel speed sensor with its harness. Mounting hardware and a dust shield are not included, so plan on new bolts, since the old ones may not be reusable.

Installation notes

OE location grommets and wire clips are on the harness for mounting and routing, which saves technicians time.

Product information is for general reference and may contain errors. See our Disclaimer.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Is the Standard Ignition ALS3338 the right sensor for the front right wheel of a 2020-2022 Toyota C-HR?

Yes. Standard Ignition ALS3338 is the front right ABS wheel speed sensor for the 2020-2022 Toyota C-HR. The front left wheel takes its own sensor, ordered separately.

Does the Standard Ignition ABS wheel speed sensor come with mounting bolts?

No. Mounting hardware and a dust shield are not included with the Standard Ignition ALS3338. The harness does carry grommets and wire clips.

What harness length and connector does this front right wheel speed sensor have?

The harness is 49.5 in (1257 mm) long and ends in one oval female connector with two female pin-socket terminals. The connector is sealed for harsh conditions.

What can a failing ALS3338 front right wheel speed sensor look like from the driver's seat?

A lit ABS warning light or an ABS that drops out can be signs. A shop can read the stored codes to see which wheel is reporting a fault.

How is the ALS3338 ABS speed sensor tested?

Standard Ignition ABS speed sensors are tested on vehicles for correct integration with electronic safety systems. The ALS3338 body is synthetic material made for harsh operating conditions.
