Rear ABS Wheel Speed Sensor for 2003-2005 Volkswagen Passat - Standard Ignition ALS515

$140.99

Vehicles this part fits

    Part number: ALS515
    UPC: 707390493138
    Condition: New
    Weight: 0.47 LBS
    Item Package Quantity: 1
    $140.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition ABS Wheel Speed Sensor P/N:ALS515
    Standard Ignition ABS Wheel Speed Sensor P/N:ALS515
    $140.99
    $140.99

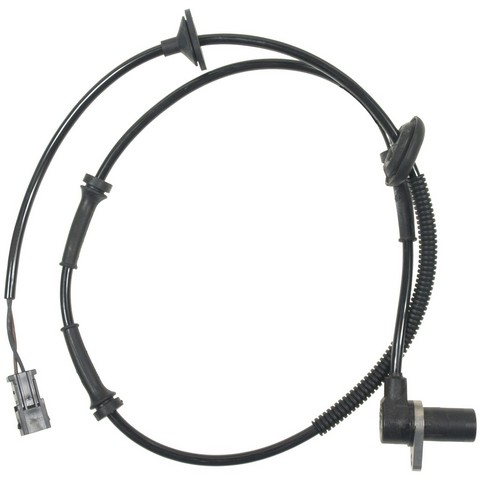

    Standard Ignition ALS515 rear ABS wheel speed sensor for the 2003-2005 Volkswagen Passat reads wheel rotation and passes it to the ABS. It is engineered specifically for Volkswagen vehicles and comes with a harness ending in a rectangular female connector.

    • Synthetic material made to withstand harsh operating conditions
    • Sealed connector for protection in harsh conditions
    • Tested on vehicles for proper fit and correct integration with electronic safety systems
    • Engineered for precision performance, durability and a long service life

    Quick facts

    • Part: Standard Ignition ALS515 ABS wheel speed sensor
    • Fits: 2003-2005 Volkswagen Passat and 1999-2000 Passat
    • Position: Rear, rear right, rear left
    • Material: Synthetic
    • Condition: New

    A lit ABS warning light can mean this sensor is worn or failing, though a damaged tone ring or a fault in the ABS control module can be behind it too. A shop can test the circuit to tell them apart.

    Fits

    This sensor fits the 2003-2005 Volkswagen Passat and the 1999-2000 Passat, on the rear left and rear right wheels. This listing is one sensor, so the other side of the axle needs its own.

    Specifications

    Fit and size

    • Position: rear, rear right, rear left
    • Mounting location: wheel
    • Quantity per application: varies by model year

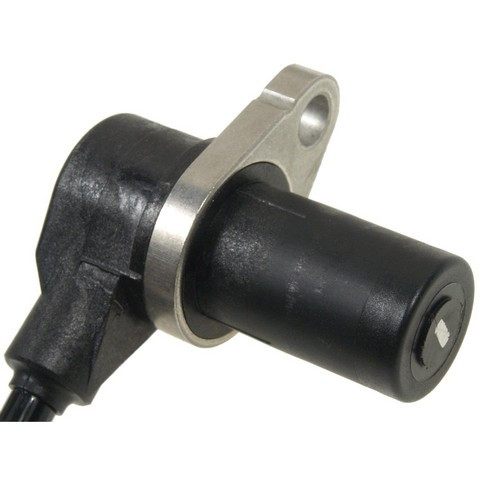

    • Number of bolt holes: 1
    • Harness length: 46.75 in (1190 mm)

    Build and materials

    • Material: synthetic

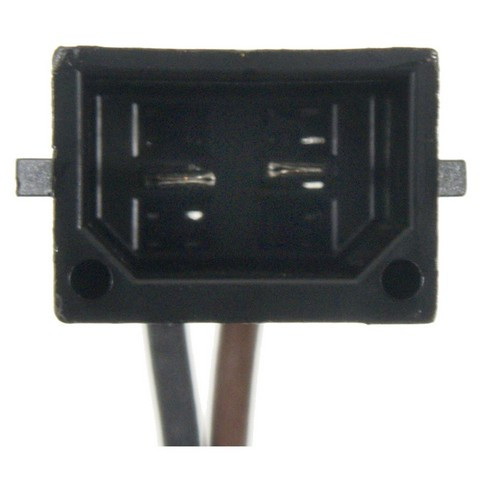

    • Connector: 1 rectangular, female
    • Terminals: 2, male blade
    • Condition: New
    • Country of origin: Thailand

    In the box

    One ABS wheel speed sensor with its harness. The vehicle takes one sensor for the 1999 and 2003-2005 Passat and two for the 2000 Passat. Mounting hardware is not included, and the old bolt may not be reusable, so plan on a new one.

    Installation notes

    • OE location grommets and wire clips come on the harness for proper mounting and routing, which saves technicians time.

    Interchange: ABS625 · SU12869 · 531188 · 3B0927807G

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    ABS625, SU12869, 531188, ALS515, 3B0927807G

    Frequently Asked Questions

    Is the ALS515 a wheel sensor for the 2003-2005 VW Passat?

    Yes. Standard Ignition ALS515 is a rear ABS wheel speed sensor for the 2003-2005 Volkswagen Passat, and it also fits the 1999-2000 Passat.

    Is ALS515 the rear ABS sensor for the 1999-2000 Volkswagen Passat?

    Yes. The 1999 Passat takes one sensor and the 2000 Passat takes two; this listing is a single Standard Ignition ALS515.

    Does the Standard Ignition ABS wheel speed sensor have a sealed connector?

    Yes. The ALS515 has a sealed connector: a rectangular female plug with two male blade terminals.

    How long is the harness on this rear wheel speed sensor?

    The harness is 46.75 inches (1190 mm) long. It has grommets and wire clips on it for mounting and routing.

    Does the ALS515 come with a mounting bolt?

    No. Mounting hardware is not included with this Standard Ignition ALS515 sensor, so have a bolt ready for its single bolt hole.
