Rear Right ABS Wheel Speed Sensor for 2001-2006 Hyundai Santa Fe - Standard Ignition ALS574

$132.99

Vehicles this part fits

    Part number: ALS574
    UPC: 707390608563
    Condition: New
    Weight: 0.50 LBS
    Item Package Quantity: 1
    $132.99
    Adding to cart… The item has been added

    Have questions?

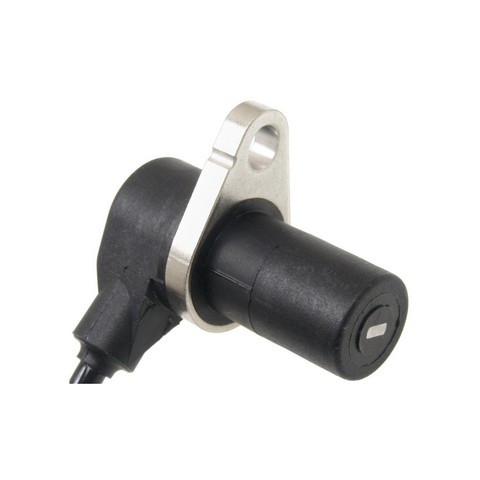

    Standard Ignition ABS Wheel Speed Sensor P/N:ALS574
    Standard Ignition ABS Wheel Speed Sensor P/N:ALS574
    $132.99
    $132.99

    Standard Ignition ALS574 rear right ABS wheel speed sensor for the 2001-2006 Hyundai Santa Fe monitors wheel rotation for the anti-lock brake system. That signal lets the ABS and other electronic safety systems react when a wheel slows or locks.

    • Synthetic material construction made to withstand harsh operating conditions
    • Location grommets and wire clips on the harness for mounting and routing
    • Tested on vehicles for proper fit and correct integration with electronic safety systems
    • Sealed connector style for protection in harsh conditions

    Quick facts

    • Part: Standard Ignition ALS574 ABS wheel speed sensor
    • Fits: 2001-2006 Hyundai Santa Fe
    • Position: Rear right
    • Condition: New

    An ABS warning light or erratic ABS behavior can mean this sensor is worn, though a damaged tone ring or a wiring fault can be behind the same signs. This listing is one sensor for the rear right wheel, which takes one on the 2001-2006 Hyundai Santa Fe; the rear left side is a separate part, ordered separately.

    Fits

    This sensor fits the 2001-2006 Hyundai Santa Fe.

    Specifications

    Fit and size

    • Position: rear right, at the wheel
    • Quantity per vehicle: 1
    • Bolt holes: 1
    • Harness length: 43 in (1090 mm)
    • Connector: 1 rectangular, male
    • Terminals: 2 blade, female

    Build and materials

    • Construction: synthetic material
    • Connector: sealed
    • Mounting hardware: not included
    • Condition: New
    • Country of origin: China

    In the box

    One ABS wheel speed sensor with its harness. Mounting hardware is not included, so plan on a new bolt, since the old one may not be reusable.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the Standard Ignition ALS574 fit the 2001-2006 Hyundai Santa Fe?

    Yes. The Standard Ignition ALS574 is a rear right ABS wheel speed sensor for the 2001-2006 Hyundai Santa Fe.

    Does the ALS574 ABS sensor come with a mounting bolt?

    No. Mounting hardware is not included with the ALS574. The sensor has one bolt hole, and its harness carries location grommets and wire clips.

    How long is the harness on this rear right ABS sensor?

    The harness is 43 inches (1090 mm) long. It ends in a sealed rectangular male connector with two female blade terminals.

    Is the ALS574 for the left or the right rear wheel?

    It is for the rear right wheel. This listing is a single sensor, and the rear left side takes its own separate part.

    How is this Standard Ignition ABS sensor tested?

    It is tested on vehicles for proper fit and correct integration with electronic safety systems.
