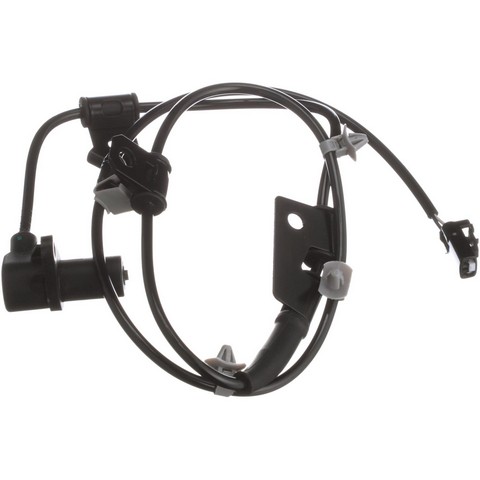

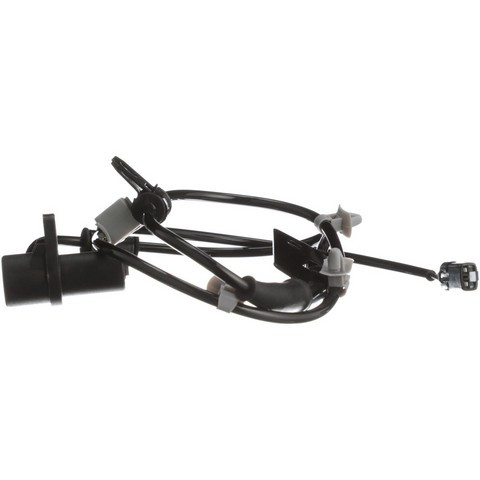

Standard Ignition ALS610 front left ABS wheel speed sensor for the 2003-2004 Hyundai Tiburon reads wheel rotation speed and passes it on to the ABS. This Standard Ignition ABS wheel speed sensor is engineered specifically for Hyundai vehicles.
- Durable synthetic material made to withstand harsh operating conditions
- Grommets and wire clips on the harness for proper mounting and routing
- Sealed connector for protection in harsh conditions
- Tested on vehicles for correct integration with electronic safety systems
Quick facts
- Part: Standard Ignition ALS610 ABS wheel speed sensor
- Fits: 2003-2004 Hyundai Tiburon
- Position: Front left
- Condition: New
A lit ABS warning light, or ABS and traction control that act up, can be signs of a faulty wheel speed sensor. If this sensor is the cause, it replaces the one at the front left. Wiring damage, the tone ring or the control module can also light that warning, so with the engine off, look over the harness and connector for cracks, chafing or corrosion first.
Fits
This sensor is a direct-fit replacement for the 2003-2004 Hyundai Tiburon. This listing is one sensor for the front left wheel of the 2003-2004 Hyundai Tiburon; the front right is a separate part.
Specifications
Fit and size
- Position: front left
- Mounting location: wheel
- Mounting type: bolt mount, 4 bolt holes
- Harness length: 45.5 in (1150 mm)
- Quantity per vehicle: 1
Build and materials
- Connector: rectangular, male, 1 connector
- Terminals: 2 female blade terminals
- Condition: new
- Country of origin: Republic of Korea
In the box
One ABS wheel speed sensor with grommets and wire clips on the harness. Mounting hardware is not included, so plan on new mounting bolts, since the old ones may not be reusable.
Interchange: ABS720 · SU9224 · 531278 · 956702C000
This part cross-references / interchanges with the following part numbers:
ABS720, SU9224, 531278, 956702C000, ALS610
Frequently Asked Questions
Does the Standard Ignition ALS610 fit the 2003-2004 Hyundai Tiburon?
Yes. Standard Ignition ALS610 is the front left ABS wheel speed sensor for the 2003-2004 Hyundai Tiburon, and the years are all that decide the fit.
Does the ALS610 ABS speed sensor come with mounting bolts?
No. Mounting hardware is not included. The harness does carry grommets and wire clips for mounting and routing.
How long is the harness on the Standard Ignition ALS610?
The harness on the Standard Ignition ALS610 is 45.5 inches (1150 mm) long and ends in one rectangular male connector with 2 female blade terminals.
What can a failing front left ABS wheel speed sensor look like?
A lit ABS warning light, or ABS and traction control that act up, can be signs. A shop can scan the system for codes to find the cause.
Does the ALS610 replace the 956702C000 sensor number?
Yes. 956702C000 is one of the numbers this Standard Ignition ALS610 sensor replaces, so it can be matched against that number.
