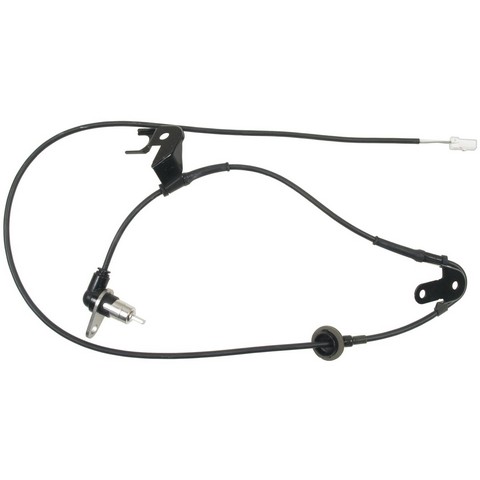

Standard Ignition ALS747 rear right ABS wheel speed sensor for the 1993-1997 Mazda 626 and other vehicles senses wheel rotation and reports it to the ABS. It is engineered specifically for Mazda vehicles.
- Synthetic material made to withstand harsh operating conditions
- Sealed connector that protects against harsh conditions
- Grommets and wire clips on the harness for correct mounting and routing
- Tested on vehicles for correct integration with electronic safety systems
Quick facts
- Part: Standard Ignition ALS747 ABS wheel speed sensor
- Fits: the 1993-1997 Mazda 626 and other vehicles
- Position: Rear right
- Condition: New
An ABS warning light or ABS that acts up can mean this sensor is worn or has failed, though a damaged wiring connector or a damaged tone ring can be behind them as well, so find the cause before replacing it. This listing is one sensor for the rear right; the 1993-1997 Mazda MX-6 takes one there, and the other side is ordered separately.
Fits
It fits the 1993-1997 Mazda 626 and the 1993-1997 Mazda MX-6.
Specifications
Fit and size
- Position: Rear right
- Mounting location: Wheel
- Quantity per vehicle: 1
- Number of bolt holes: 3
- Harness length: 50.5 in (1280 mm)
Build and materials
- Body: synthetic material
- Connector: 1 rectangular, female
- Terminals: 2 blade, female
- Condition: New
- Country of origin: Japan
In the box
One ABS wheel speed sensor with its harness. Mounting hardware is not included; the old bolts may not be reusable, so plan on new ones.
Interchange: ABS857 · ABSD30958 · 530430 · C0014371Y · G06T4371Y · GA2G4371Y · GA2G4371YA · GA2H4371Y
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
ABS857, ABSD30958, 530430, C0014371Y, G06T4371Y, GA2G4371Y, GA2G4371YA, GA2H4371Y, ALS747
Frequently Asked Questions
Does the Standard Ignition ALS747 work on the 1993-1997 Mazda MX-6?
Yes. Standard Ignition ALS747 is a rear right ABS wheel speed sensor for the 1993-1997 Mazda MX-6.
Is this Standard Ignition ABS wheel speed sensor for the rear right or the rear left?
Rear right. Standard Ignition ALS747 is one sensor for that wheel only; the rear left sensor is a separate part and is ordered on its own.
Do I need new bolts for this rear right ABS wheel speed sensor?
Yes, plan on new bolts. The sensor comes with its harness, but mounting hardware is not included, and the old bolts may not be reusable.

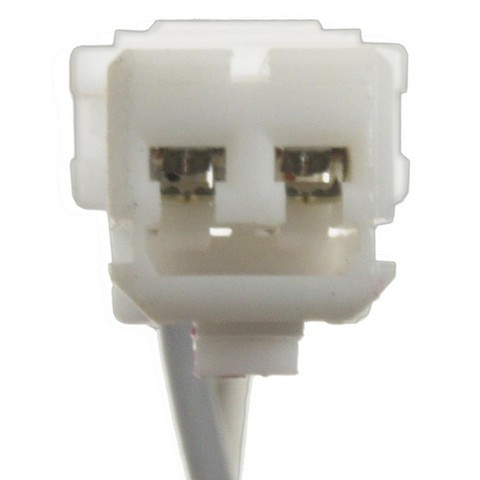

What kind of connector does this ABS wheel speed sensor have?
It has one rectangular female connector with two female blade terminals. The harness is 50.5 in (1280 mm) long.
How can I tell if a rear right ABS wheel speed sensor is going bad?
An ABS warning light, ABS that acts up or a traction control light can be signs of a worn sensor. A shop can read the codes and test the sensor to confirm it.
