Standard Ignition ABS Wheel Speed Sensor P/N:ALS1698
Standard Motor Products
Standard Ignition ALS751 front left ABS wheel speed sensor for the 1992-1996 Mazda MX-3 reads how fast the wheel turns and sends that signal to the ABS. This Standard Ignition ABS wheel speed sensor is engineered specifically for Mazda vehicles.
A lit ABS warning light, or an ABS or traction control system that stops working, can mean a wheel speed sensor has failed. A damaged tone ring, a wiring fault or a worn wheel bearing can be behind these signs too, so find the cause before you buy.
This sensor is a direct-fit replacement for the 1992-1996 Mazda MX-3 and is tested on vehicles for proper fit. The listing is one sensor for the front left wheel, which takes one at that position; the front right wheel's sensor is a separate part ordered on its own.
Fit and size
Build and materials
One front left ABS wheel speed sensor with its harness. Mounting hardware is not included, so plan on a new bolt.
Interchange: ABS861 · ABSD31130 · 530342 · B6034373XD · B6034373XE · E0424373X · E0424373XA
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Is the Standard Ignition ALS751 right for the 1992-1996 Mazda MX-3?
Yes. The Standard Ignition ALS751 is the front left ABS wheel speed sensor for the 1992-1996 Mazda MX-3. The front right wheel uses a separate sensor.
Does the ALS751 sensor come with a mounting bolt?
No. Mounting hardware is not included, so plan on a new bolt. The harness does carry grommets and wire clips for mounting and routing.
How long is the harness on this ABS wheel speed sensor?

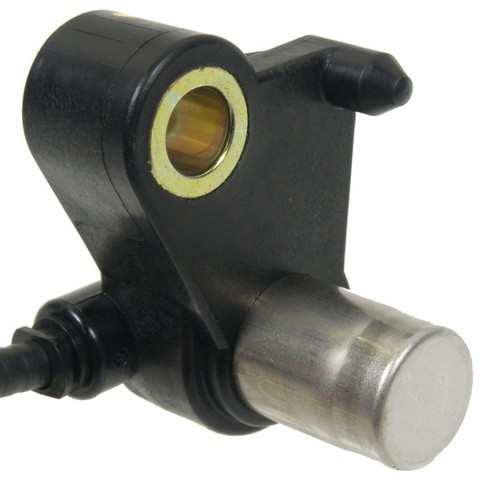

The Standard Ignition ALS751 harness is 30 inches (760 mm) long. It ends in one rectangular connector with two blade terminals.
Could a lit ABS light mean this front left wheel speed sensor has failed?
Yes, it can. An ABS or traction control system that stops working is another sign, and a shop can scan the system to read its fault codes.
Does the Standard Ignition ALS751 replace ABS861?
Yes. ABS861 is listed as an interchange number for the Standard Ignition ALS751, along with several other numbers on the Interchange line.
