Standard Ignition ALS725 rear right ABS wheel speed sensor for the 2004-2006 Lexus LS430 reports wheel rotation speed to the anti-lock brake system. The Standard Ignition ABS wheel speed sensor is engineered specifically for Lexus vehicles.
- Location grommets and wire clips on the harness for proper mounting and routing
- Sealed connector for protection in harsh conditions
- Durable synthetic material made to withstand harsh operating conditions
- Tested on vehicles for correct integration with electronic safety systems
Quick facts
- Part: Standard Ignition ALS725 ABS wheel speed sensor
- Fits: the 2004-2006 Lexus LS430
- Position: Rear right
- Condition: New
A lit ABS warning light, or ABS and traction control that stop working, can mean the wheel speed sensor is failing. A damaged tone ring, a damaged wire or a corroded connector can be behind that light too, so find the cause before you buy.
Fits
This sensor is a direct-fit replacement for the 2004-2006 Lexus LS430, which takes one at the rear right wheel. The rear left sensor is a separate part, ordered on its own.
Specifications
Fit and size
- Position: Rear right
- Mounting location: Wheel
- Quantity per vehicle: 1
- Number of bolt holes: 2
- Harness length: 44 in (1120 mm)
Build and materials
- Material: Synthetic
- Connector: 1 rectangular, male
- Terminals: 4 female blade
- Condition: New
- Country of origin: Japan
In the box
One ABS wheel speed sensor. Hardware is not included, so plan on new mounting bolts, as the old ones may not be reusable.
Interchange: ABS835 · SU12367 · 531375 · 8954550050
This part cross-references / interchanges with the following part numbers:
ABS835, SU12367, 531375, 8954550050, ALS725
Frequently Asked Questions
Is the Standard Ignition ALS725 the right sensor for the 2004-2006 Lexus LS430?
Yes. Standard Ignition ALS725 is the rear right ABS wheel speed sensor for the 2004-2006 Lexus LS430, which takes one at that position. The rear left sensor is a separate part.
Does this ABS wheel speed sensor come with mounting bolts?
No. Hardware is not included, so plan on new bolts for the sensor's 2 bolt holes. The harness does carry location grommets and wire clips for mounting and routing.

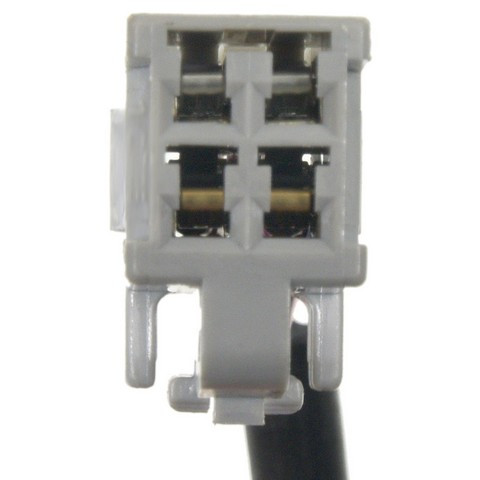

What connector does the Standard Ignition ALS725 use?
Standard Ignition ALS725 has one rectangular male connector with 4 female blade terminals. The harness is 44 in (1120 mm) long, and the connector is sealed for harsh conditions.
My ABS light is on: could the rear right wheel speed sensor be the reason?
Yes, a failing sensor can light the ABS warning light, and ABS or traction control may stop working. Have a lit brake warning light checked promptly rather than driving on it.
Does the Standard Ignition ALS725 interchange with 8954550050?
Yes. Standard Ignition ALS725 replaces 8954550050, and it is also listed against ABS835, SU12367 and 531375.
