Accelerator Pedal Sensor for 2008-2014 Scion xD & More - Standard Ignition APS296

$290.99

Vehicles this part fits

    Part number: APS296
    UPC: 727943144782
    Condition: New
    Weight: 2.83 LBS
    Item Package Quantity: 1
    $290.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition Accelerator Pedal Sensor P/N:APS296
    Standard Ignition Accelerator Pedal Sensor P/N:APS296
    $290.99
    $290.99

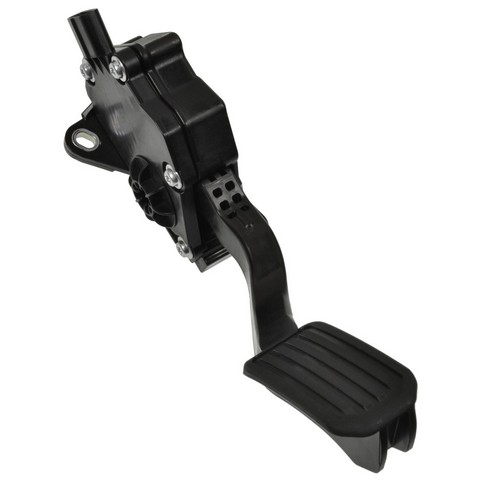

    Standard Ignition APS296 accelerator pedal sensor for the 2008-2014 Scion xD and other vehicles reads pedal position for the electronic throttle control system. It bolts on at the floor-mounted pedal.

    • Designed and tested for signal accuracy
    • Engineered to integrate with the electronic throttle control system
    • Polyamide 6 material
    • Female oval plug-in connector with six male blade terminals

    Quick facts

    • Part: Standard Ignition APS296 accelerator pedal sensor
    • Fits: 2008-2014 Scion xD and other vehicles
    • Material: Polyamide 6
    • Condition: New

    Slow or delayed throttle response, reduced power or a check engine light can mean the pedal sensor is failing. A fault in the throttle body, the wiring or the connector can be behind the same signs, so find the cause before buying a new sensor.

    Fits

    This is an accelerator pedal sensor for the 2007-2011 Toyota Yaris and the 2008-2014 Scion xD. The 2008-2014 Scion xD takes one.

    Specifications

    Fit and size

    • Mounting location: Floor mounted
    • Attachment method: Bolt on
    • Quantity per vehicle: 1
    • Terminal quantity: 6
    • Connector quantity: 1

    Build and materials

    • Material: Polyamide 6
    • Connector: Oval, plug-in, female
    • Terminals: Blade, male
    • Condition: New
    • Country of origin: China

    In the box

    One accelerator pedal sensor with its pedal assembly and mounting bracket. Linkage is not attached, and hardware is not included, so plan on new fasteners rather than reusing the old ones.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Will the Standard Ignition APS296 fit a 2007-2011 Toyota Yaris?

    Yes. Standard Ignition APS296 is listed for the 2007-2011 Toyota Yaris and the 2008-2014 Scion xD, and each takes one.

    Does the Standard Ignition APS296 include the pedal assembly and bracket?

    Yes, the pedal assembly and the mounting bracket come with the Standard Ignition APS296. Mounting hardware is not included, and linkage is not attached.

    How many terminals does this accelerator pedal sensor connector have?

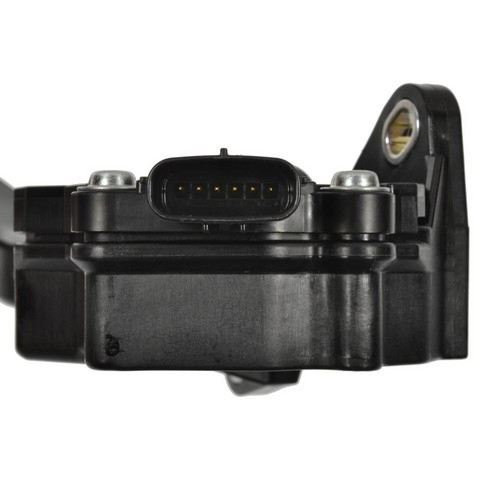

    The connector is an oval, female, plug-in type with six male blade terminals. This accelerator pedal sensor has one connector.

    Could a hesitating throttle point to this accelerator pedal sensor?

    It can. Delayed throttle response, reduced power or a check engine light may come from a failing pedal sensor, and a shop can scan and test it.

    What material is the Standard Ignition APS296 made of?

    Polyamide 6 is the material listed for this accelerator pedal sensor, in black. Its country of origin is China.
