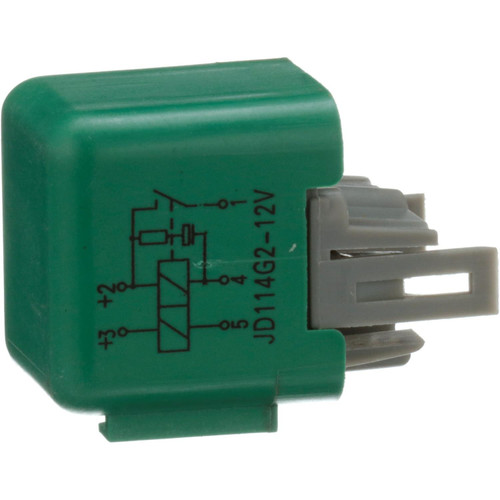

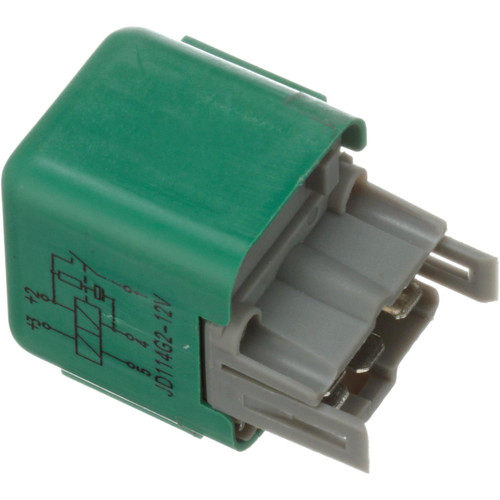

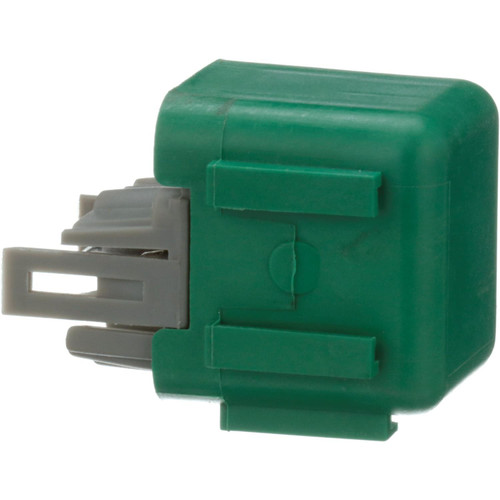

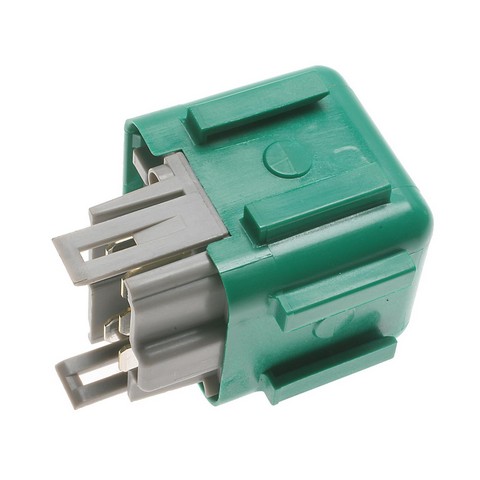

Standard Ignition RY-358 fuel pump relay for the 1992-1996 Toyota Camry and other vehicles switches the fuel pump circuit on and off. Also sold as a circuit opening relay, it is a Toyota Camry fuel pump relay for the 1992-1996 model years.
- Composite housing made for harsh temperatures and demanding under-hood conditions
- Brass or copper contacts, where specified, for extended wear resistance

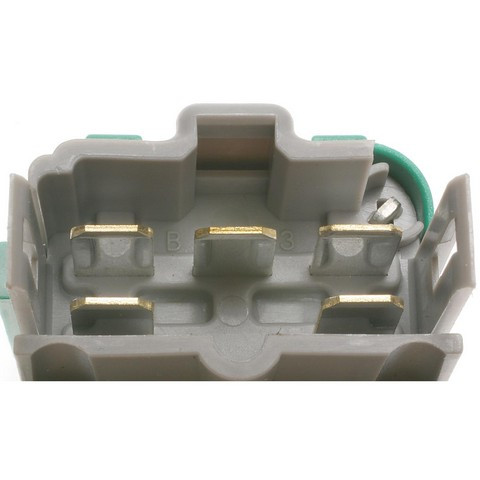

- Five male blade terminals in one rectangular female connector
- Rated for 12 V and 10 A
Quick facts
- Part: Standard Ignition RY-358 fuel pump relay
- Also called: circuit opening relay
- Fits: 1992-1996 Toyota Camry and other vehicles
- Condition: New
Hard starting, an engine that cranks but does not start, or a stall can mean the relay is failing. A fuel pump, a fuse, or the wiring and connector can be behind these signs too, so find the cause before buying a relay. The 1992-1996 Toyota Camry takes one relay.
Fits
This fuel pump relay fits the 1992-1996 Toyota Camry, the 1993-1998 Toyota T100 and the 1992-1996 Lexus ES300.
Specifications
Fit and size
- Quantity per vehicle: 1
- Voltage: 12 V
- Amperage rating: 10 A
- Terminal quantity: 5
- Connector quantity: 1
Build and materials
- Function: fuel injection relay
- Terminal type: blade, male
- Connector: rectangular, female
- Continuous duty: No
- Condition: New
- Country of origin: China
In the box
One fuel pump relay. A mounting bracket is not included.
Frequently Asked Questions
Is this the right T100 relay for a 1993-1998 Toyota T100?
Yes. Standard Ignition RY-358 fits the 1993-1998 Toyota T100, which takes one relay.
Is Standard Ignition RY-358 the Lexus ES300 relay for a 1992-1996 Lexus ES300?
Yes. Standard Ignition RY-358 fits the 1992-1996 Lexus ES300, which takes one relay.
Does the Standard Ignition RY-358 fuel pump relay come with a mounting bracket?
No. This listing is one relay, and a mounting bracket is not included.
What voltage and amperage is this fuel pump relay rated for?
This relay is rated 12 V and 10 A. It has five male blade terminals and a rectangular female connector.
Is the Standard Ignition RY-358 relay rated for continuous duty?
No. Standard Ignition RY-358 is listed as not continuous duty. Its contacts are brass or copper where specified.
