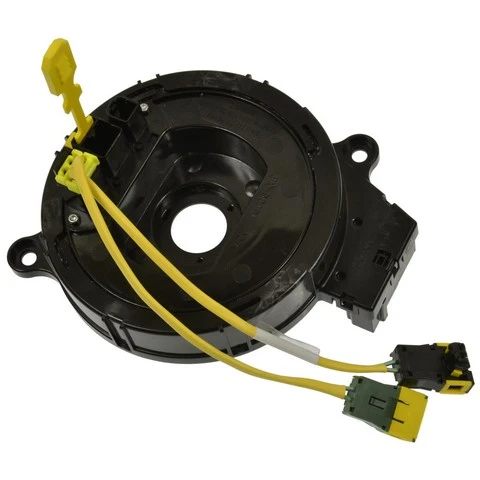

Standard Ignition CSP284 air bag clockspring for the 2002-2004 Jeep Grand Cherokee carries electrical connections between the steering column and the steering wheel as the wheel turns.
- Copper alloy conductors with low resistive losses

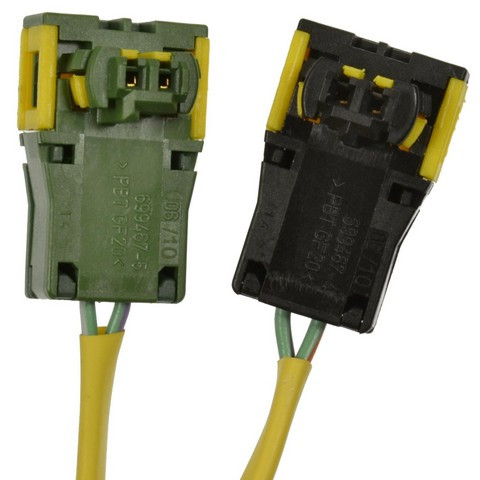

- Four rectangular connectors, female and male
- 14 blade and pin terminals, female and male
- Four wires, each 5.75 in (146.05 mm) long
Quick facts
- Part: Standard Ignition CSP284 air bag clockspring
- Fits: 2002-2004 Jeep Grand Cherokee
- Condition: New
A clockspring that is wearing out can show up as an airbag warning light, a horn that stops working or steering wheel controls that quit. A faulty airbag module, horn switch or steering wheel control switch can be behind these signs too, so find the cause before buying a clockspring. Because this is an airbag part, a shop can test the circuit.
Fits
This clockspring is a direct-fit replacement for the 2002-2004 Jeep Grand Cherokee.
Specifications
Fit and size
- Quantity per vehicle: 1
- Wire length: 5.75 in (146.05 mm)
- Wire quantity: 4
- Connector quantity: 4
- Terminal quantity: 14
- Voltage: 12 V
Build and materials
- Conductors: copper alloy
- Connector shape: rectangular
- Connector gender: female and male
- Terminal type: blade and pin
- Terminal gender: female and male
- Condition: New
- Country of origin: China
In the box
One clockspring; the 2002-2004 Jeep Grand Cherokee takes one. Hardware is not included, and the old fasteners may not be reusable, so plan on new ones.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Standard Ignition CSP284 clockspring fit the 2002-2004 Jeep Grand Cherokee?
Yes. Standard Ignition CSP284 is a direct-fit replacement for the 2002-2004 Jeep Grand Cherokee, and that vehicle takes one clockspring.
Does this clockspring come with hardware?
No. The listing is one clockspring and hardware is not included. The old fasteners may not be reusable, so plan on new ones.
How many connectors and terminals does the CSP284 clockspring have?
Standard Ignition CSP284 has four rectangular connectors and 14 blade and pin terminals. Both the connectors and the terminals are female and male.
How long are the wires on this clockspring?
This clockspring has four wires, each 5.75 in (146.05 mm) long.
Can a bad clockspring affect the horn and steering wheel buttons?
Yes, it can. A worn clockspring can show up as an airbag warning light, a horn that stops or dead wheel controls; a shop can test the airbag circuit.
