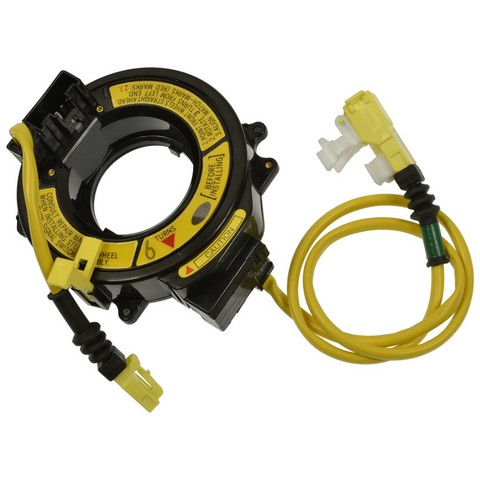

Standard Ignition CSP288 air bag clockspring for the 1993-1997 Toyota Corolla and other vehicles keeps the steering wheel's electrical circuits connected as it turns. It is made to OE spec for fit, form and function.
- Copper alloy conductors for good electrical conductivity with low resistive losses
- Three female connectors with ten male blade and pin terminals
- Design and high grade materials built for the demands of professional service
Quick facts
- Part: Standard Ignition CSP288 air bag clockspring
- Fits: 1993-1997 Toyota Corolla and other vehicles
A worn clockspring can show up as an airbag warning light, a horn that stops working or steering-wheel buttons that stop responding. A lit airbag light alone does not prove the clockspring is bad; a damaged wire in the airbag circuit can cause it too. Have a shop test the airbag circuit.
Fits
This clockspring is a direct-fit part for the 1993-1997 Toyota Corolla, the 1992-1996 Toyota Camry, the 1992-1998 Lexus SC300 and many other Toyota and Lexus models. If your car is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Wire length: 23.5 in (596.9 mm)
- Wire quantity: 4
- Connector shape: Rectangular
Build and materials
- Voltage: 12
- Country of origin: Japan
In the box
One clockspring; the vehicle takes one. Hardware is not included, so plan on new fasteners, since the old ones may not be reusable.
Interchange: CLS389 · ACSC20058 · CPI488 · 8430624010 · 8430628020 · 8430630060 · 8430633020 · 8430650080 · 8430620040
This part cross-references / interchanges with the following part numbers:
CLS389, ACSC20058, CPI488, 8430624010, 8430628020, 8430630060, 8430633020, 8430650080, 8430620040
Frequently Asked Questions
Will the Standard Ignition CSP288 work as a 1992-1996 Toyota Camry air bag clockspring?
Yes. Standard Ignition CSP288 fits the 1992-1996 Toyota Camry, and the car takes one. For other cars, look in the Vehicles it fits section on this page.
Do I need to buy hardware separately for the Standard Ignition CSP288 clockspring?
Yes. This listing is one clockspring and hardware is not included, so plan on new fasteners; the old ones may not be reusable.
What connectors and terminals does the CSP288 air bag clockspring have?
Standard Ignition CSP288 has three rectangular female connectors and ten male blade and pin terminals, with four wires 23.5 in (596.9 mm) long.
Can a failing clockspring turn on the airbag light?
Yes, a failing clockspring can be one source of an airbag light. A horn or steering-wheel buttons that stop working are other signs. A shop should test airbag circuits; do not probe them yourself.
Does Standard Ignition CSP288 interchange with part number 8430624010?
Yes. 8430624010 is on the Interchange line for Standard Ignition CSP288, along with CLS389 and ACSC20058.
