Air Bag Clockspring for 2009-2010 Subaru Forester & More - Standard CSP290

$498.99

Standard Ignition Air Bag Clockspring CSP290

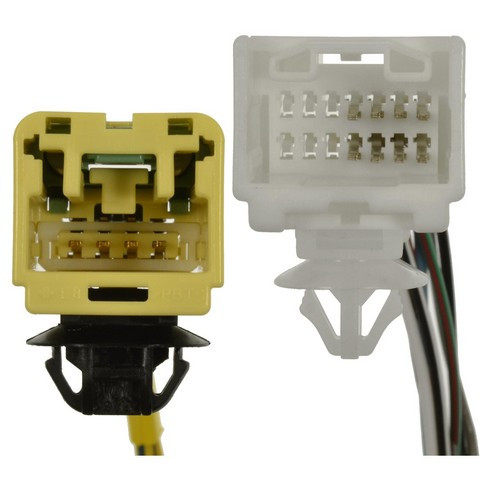

Standard Ignition Air Bag Clockspring CSP290 - view 2

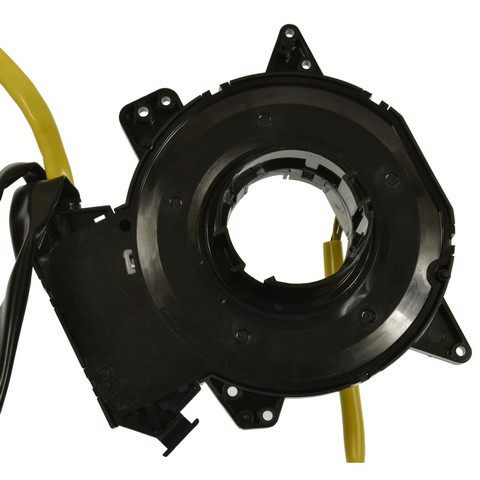

Standard Ignition Air Bag Clockspring CSP290 - view 3

Part number: CSP290

UPC: 033086378541

Condition: New

Weight: 0.76 LBS

Item Package Quantity: 1

$498.99

Current Stock: 16

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Standard Ignition Air Bag Clockspring P/N:CSP290

$498.99

Description

Standard Ignition CSP290 air bag clockspring for the 2009-2010 Subaru Forester and other vehicles keeps the steering wheel wiring connected as the wheel turns.

Copper alloy conductors with low resistive losses for consistent electrical conductivity
High-grade materials chosen to meet the demands of service professionals
Five connectors and 20 blade and pin terminals for the wiring connections

Quick facts

Part: Standard Ignition CSP290 air bag clockspring
Fits: 2009-2010 Subaru Forester and other vehicles
Condition: New

A lit airbag warning light or a horn that stops working can mean the clockspring has worn out. A faulty airbag module, a steering wheel switch or a damaged connector can produce those same signs, so find the actual cause before buying a new clockspring. A shop can test the airbag circuit.

Fits

This clockspring fits the 2009-2010 Subaru Forester and the 2008-2010 Subaru Impreza.

Specifications

Fit and size

Quantity per vehicle: 1
Voltage: 12 V
Wire length: 13.25 in (336.55 mm)
Wire quantity: 16

Build and materials

Connector shape: rectangular, female and male
Terminal type: blade and pin, female and male
Condition: New
Country of origin: Japan

In the box

One clockspring, which is the quantity these cars need. Hardware is not included, so plan on new fasteners where needed.

Interchange: CLS391 · ACSB10045 · CPI490 · 83196FG020

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

CLS391, ACSB10045, CPI490, CSP290, 83196FG020

Buyer's Q&A

Frequently Asked Questions

Does the Standard Ignition CSP290 clockspring fit the 2008-2010 Subaru Impreza?

Yes. Standard Ignition CSP290 fits the 2008-2010 Subaru Impreza and the 2009-2010 Subaru Forester, with one clockspring per car.

Does the CSP290 air bag clockspring come with mounting hardware?

No. Hardware is not included. The box holds one clockspring, so plan on new fasteners where needed.

What voltage and connector layout does this clockspring use?

Standard Ignition CSP290 is a 12 V part with five rectangular connectors, 20 blade and pin terminals and 16 wires. Wire length is 13.25 in (336.55 mm).

Can a worn clockspring make the horn stop working?

It can. A worn clockspring can break the circuits that run to the steering wheel, such as the horn. A shop should test any airbag circuit.

What are the conductors in the Standard Ignition CSP290 made of?

The conductors are copper alloy, which gives low resistive losses and consistent electrical conductivity. This clockspring's country of origin is Japan.
