Alternator Connector for 1975-1978 Ford F-150 & More - Standard Ignition S-92

$6.99
WARNING:California Proposition 65▾
Standard Ignition Alternator Connector S-92
Standard Ignition Alternator Connector S-92 - view 2
Standard Ignition Alternator Connector S-92 - view 3
Standard Ignition Alternator Connector S-92
Standard Ignition Alternator Connector S-92 - view 2
Standard Ignition Alternator Connector S-92 - view 3

Vehicles this part fits
    Part number: S-92
    UPC: 091769029326
    Condition: New
    Weight: 0.10 LBS
    Item Package Quantity: 1
    $6.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

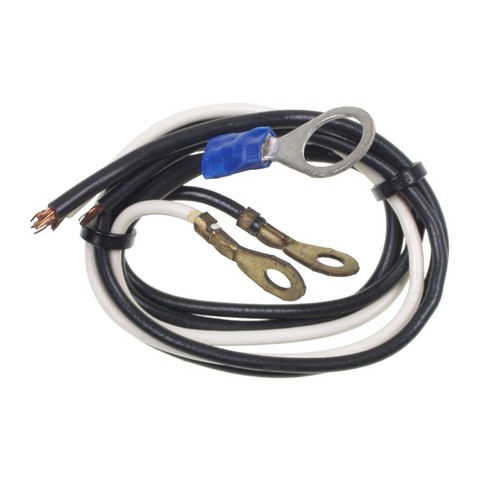

    Standard Ignition Alternator Connector P/N:S-92
    Standard Ignition Alternator Connector P/N:S-92
    $6.99
    $6.99

    Replace a worn or damaged alternator connector with the Standard Ignition Alternator Connector S-92, a factory-assembled connector and wiring harness that joins your vehicle's charging-system wiring to the alternator. It fits many vehicles, among them the 1975-1978 Ford F-150 4.9L / 5.0L / 5.8L / 5.9L / 6.4L / 6.6L / 7.5L and the 1964-1973 Ford Mustang 2.8L / 3.3L / 4.1L / 4.3L / 4.7L / 5.0L / 5.8L / 6.4L / 7.0L. See the "Vehicles it fits" section for the full list of years, models, and engines.

    • Built to exact OE standards: Produced in TS16949- and ISO9001-certified facilities and designed for specific vehicle applications.
    • Tested at every stage: Each connector goes through thorough quality checks and rigorous testing throughout production.
    • Factory-assembled: Arrives assembled on a 12-inch (304.8 mm) wiring harness.

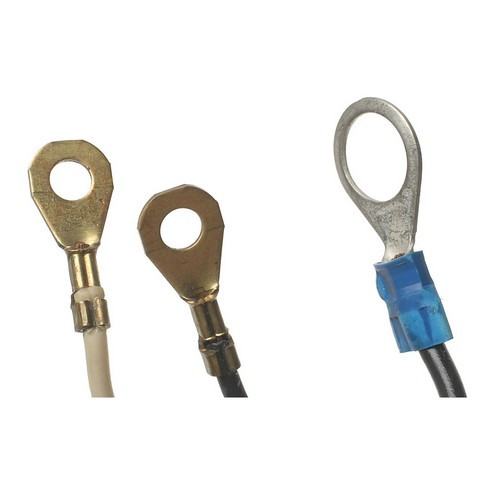

    • Harness details: Three wires in 14 and 18 gauge, finished with three metal ring terminals. Splice connectors and a dust shield are not included.

    The alternator connector links the vehicle's wiring to the alternator. Heat and age can leave the wire insulation cracked or brittle, or the terminals burnt or corroded. If a damaged connector is the cause of a poor or intermittent connection at the alternator, this part replaces it. The listed applications use one connector each. Country of origin: Taiwan.

    Interchange: PT70 · 395 · VRA428

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    PT70, 395, VRA428

    Frequently Asked Questions

    What does the S-92 alternator connector do?

    It links the vehicle's charging-system wiring to the alternator. It is a factory-assembled connector on a 12-inch (304.8 mm) harness with three ring terminals.

    What comes with this connector?

    You get the assembled connector and its wiring harness, with three wires and three metal ring terminals. Splice connectors and a dust shield are not included.

    What wire gauge does the harness use?

    The harness has three wires in 14 and 18 gauge, and it is 12 inches (304.8 mm) long.

    Will this connector fit my vehicle?

    It fits many vehicles, including the 1975-1978 Ford F-150 4.9L / 5.0L / 5.8L / 5.9L / 6.4L / 6.6L / 7.5L and 1964-1973 Ford Mustang 2.8L / 3.3L / 4.1L / 4.3L / 4.7L / 5.0L / 5.8L / 6.4L / 7.0L. See the "Vehicles it fits" section.

    How can I tell if my alternator connector needs replacing?

    Signs it may need replacing include cracked or brittle wire insulation, burnt or corroded terminals, or a loose connection at the alternator. Diagnose the charging system first, because other parts can cause similar symptoms.
