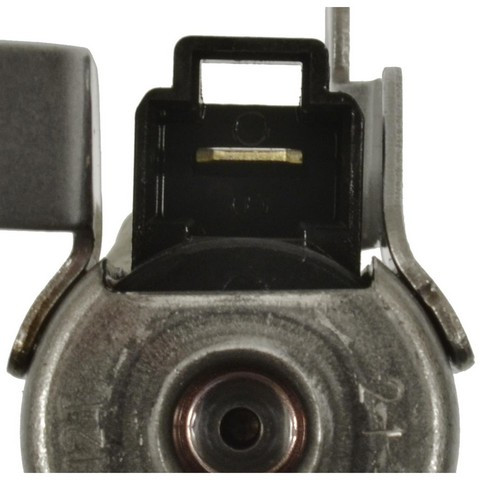

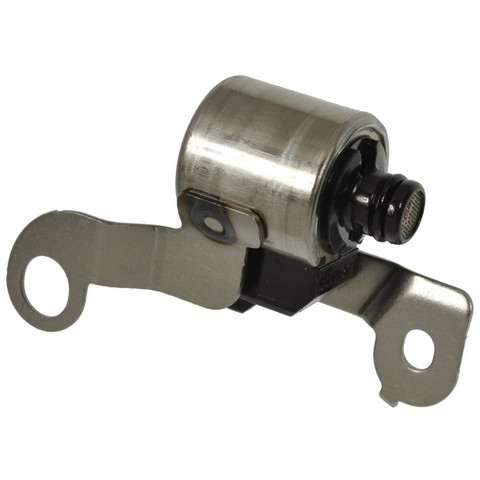

Standard Ignition TCS182 transmission control solenoid for the 2006-2016 Toyota Tacoma and other vehicles blocks or vents fluid pressure on command. Also called an automatic transmission control solenoid, it has resistance and inductance matched to OE.
- 100% copper winding for positive valve actuation on command
- Precision-ground pintle that moves freely to block or vent fluid pressure
- Stainless steel filter screen to prevent contamination of valve components
- 100% end-of-line testing on every solenoid
- Rectangular connector and blade terminal for a precise connection to the wire harness
Quick facts
- Part: Standard Ignition TCS182 transmission control solenoid
- Also called: automatic transmission control solenoid
- Fits: the 2006-2016 Toyota Tacoma and other vehicles
- Material: Metal, Plastic
- Condition: New
A worn solenoid can show up as harsh or delayed shifts or a transmission warning light. Before you replace it, rule out a damaged harness or connector and other transmission faults, because those signs can have other causes. Only one solenoid is needed per application, and this listing holds one.
Fits
The 2006-2016 Toyota Tacoma, the 2000-2005 Toyota 4Runner and the 2000-2005 Toyota Tundra are among the vehicles this solenoid fits, along with others.
Specifications
Fit and size
- Quantity per application: 1
- Solenoid quantity included: 1
- Mounting holes: 2
- Connector shape: Rectangular, 1 connector
- Terminal: 1 blade terminal, male
Build and materials
- Material: Metal, Plastic
- Attachment method: Bolt mount
- Connector gender: Female
- Gasket: Molded rubber/plastic
- Grounded base: Yes
- Condition: New
- Country of origin: Taiwan
In the box
One solenoid with its molded rubber/plastic gasket and a mounting bracket. Mounting hardware and a wiring harness are not included; plan on new bolts, since the old ones may not be reusable.
Interchange: TCS105 · TCS725 · 3525030060 · 3525030070 · 8542022170 · 8542024030 · 8542024040
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
TCS105, TCS725, 3525030060, 3525030070, 8542022170, 8542024030, 8542024040, TCS182
Frequently Asked Questions
Does the Standard Ignition TCS182 transmission control solenoid fit a 2006-2016 Toyota Tacoma?
Yes, Standard Ignition TCS182 fits the 2006-2016 Toyota Tacoma and the 2000-2005 Toyota 4Runner, among others. If your car is not named here, look for it in the "Vehicles it fits" section on this page.
Do bolts or a wiring harness come with the TCS182 solenoid?
No. The Standard Ignition TCS182 comes with one solenoid, a molded rubber/plastic gasket and a mounting bracket. Mounting hardware and a wiring harness are not included.
What kind of connector does this transmission control solenoid have?
It has a rectangular female connector with one male blade terminal and a grounded base. The solenoid is bolt mount and has two mounting holes.
Does this solenoid have a filter screen?
Yes. It uses a stainless steel filter screen to prevent contamination of valve components, and its winding is 100% copper.
Does the TCS182 solenoid replace number 3525030060?
Yes. Standard Ignition TCS182 is listed as a replacement for 3525030060. The Interchange line on this page gives the other numbers it replaces.
