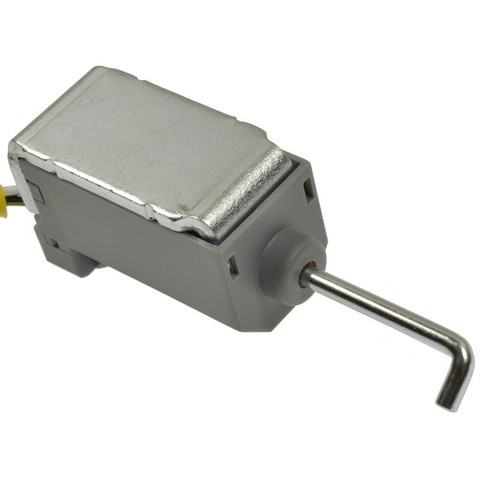

Standard Ignition TCS196 transmission control solenoid for the 2011-2012 Kia Sorento and other vehicles blocks or vents fluid pressure on command. Also called an automatic transmission control solenoid, it takes the place of a worn or failed solenoid.
- 100% copper winding for positive valve actuation on command
- Precision-ground pintle that moves freely to block or vent fluid pressure
- Stainless steel filter screen that prevents contamination of valve components
- 100% end-of-line testing on every solenoid

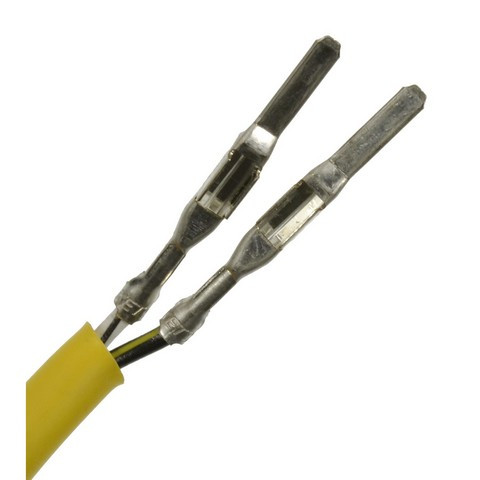

- Two male blade terminals with a push-on attachment
Quick facts
- Part: Standard Ignition TCS196 transmission control solenoid
- Also called: automatic transmission control solenoid
- Fits: 2011-2012 Kia Sorento and other vehicles
- Material: Metal
- Condition: New
A worn solenoid can show up as harsh or delayed shifts or a transmission warning light. Low fluid, a damaged wiring harness or a worn valve body can be behind those signs too, so find the cause before buying a solenoid. The transmission takes one solenoid.
Fits
It fits the 2009-2013 Hyundai Tucson, the 2009 Kia Sorento and the 2011-2012 Kia Sorento. Its resistance and inductance are matched to OE, and end-of-line testing is meant to meet or exceed OE performance.
Specifications
Fit and size
- Quantity per vehicle: 1
- Solenoids included: 1
- Harness length: 6.5 in (165 mm)
- Terminal quantity: 2
- Wire quantity: 2
Build and materials
- Material: Metal
- Filter screen: stainless steel
- Terminals: male blade, push-on attachment
- Condition: New
- Country of origin: Republic of Korea
In the box
One solenoid with its wiring harness. Gaskets, hardware and a mounting bracket are not included, so plan on new fasteners and gaskets, since the old ones may not be reusable.
Installation notes
- Blade terminals connect with a push-on attachment.
- Terminals match OE for a precise connection to the wire harness and a fast installation.
Interchange: TCS119 · TCS739 · 8402P000 · 958402P000
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
TCS119, TCS739, 8402P000, 958402P000, TCS196
Frequently Asked Questions
Is the Standard Ignition TCS196 transmission control solenoid right for a 2009-2013 Hyundai Tucson?
Yes. Standard Ignition TCS196 fits the 2009-2013 Hyundai Tucson. The 2009 Kia Sorento and the 2011-2012 Kia Sorento take it too.
Does this transmission control solenoid come with a wiring harness and gaskets?
Standard Ignition TCS196 comes with a 6.5 in (165 mm) wiring harness. Gaskets, hardware and a mounting bracket are not included.
What is the filter screen on this transmission control solenoid made of?
It is stainless steel. The screen is there to prevent contamination of the valve components.
What signs can mean a transmission control solenoid is wearing out?
Harsh or delayed shifts or a transmission warning light can be signs. A shop can test the solenoid and its circuit.
Is 8402P000 an interchange for the Standard Ignition TCS196?
Yes. 8402P000 is on the interchange list for Standard Ignition TCS196.
