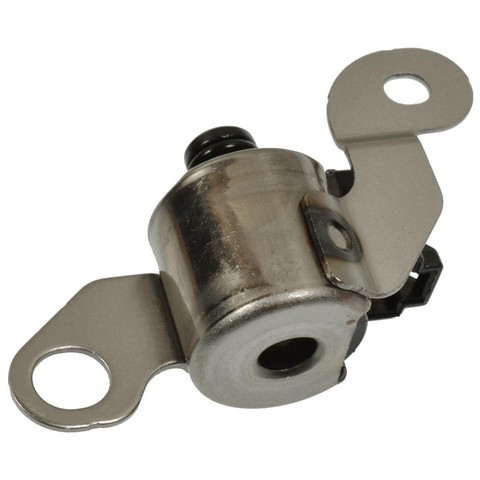

Standard Ignition TCS224 transmission control solenoid for the 2006-2016 Toyota Tacoma and other vehicles blocks or vents fluid pressure inside the transmission on command. Resistance and inductance are matched to OE, and every unit undergoes 100% end-of-line testing.
Harsh or delayed shifts, or a transmission that hangs in one gear, can mean the solenoid is worn, though the wire harness or the transmission control module can be behind the same symptoms.
This transmission control solenoid is a direct-fit replacement for the 2006-2016 Toyota Tacoma, the 2000-2005 Toyota 4Runner and the 2000-2004 Toyota Tundra. This listing is one solenoid, and the 2006-2016 Toyota Tacoma takes one.
Fit and size
Build and materials
One transmission control solenoid with seals and a mounting bracket. A wiring harness and mounting hardware are not included, so plan on new bolts.
Interchange: TCS147 · TCS767 · 3525030040 · 3525030050 · 8542022150 · 8542024010 · 8542024020
This part cross-references / interchanges with the following part numbers:
Is the Standard Ignition TCS224 the right transmission control solenoid for a 2006-2016 Toyota Tacoma?
Yes. Standard Ignition TCS224 fits the 2006-2016 Toyota Tacoma, the 2000-2005 Toyota 4Runner and the 2000-2004 Toyota Tundra. For any other car, look it up in the "Vehicles it fits" section.
Does this automatic transmission control solenoid come with a wiring harness?
No. Standard Ignition TCS224 comes as one solenoid with seals and a mounting bracket. The wiring harness and mounting hardware are not included.

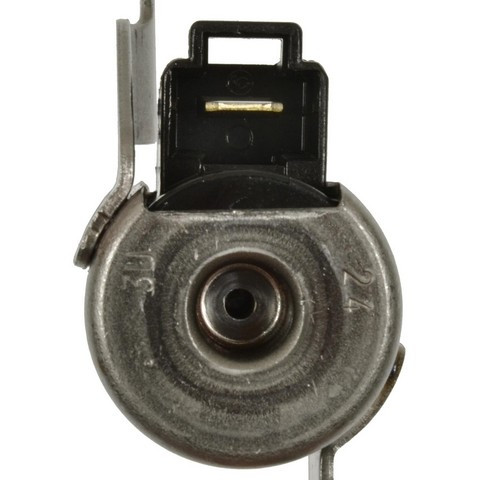

What connector and terminal does this transmission control solenoid have?
It has one rectangular female connector and one male blade terminal. The body bolts on through two mounting holes and has a grounded base.

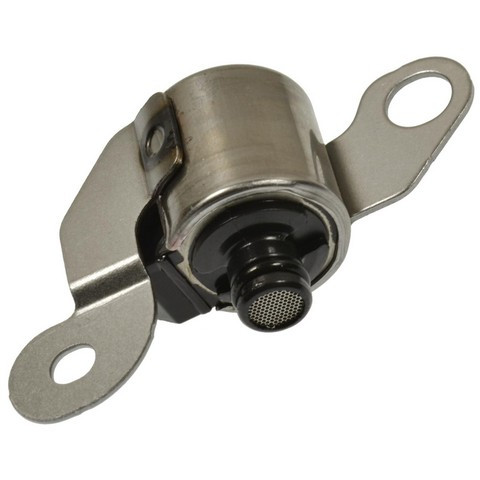

What does the stainless steel screen on this transmission control solenoid do?
The stainless steel filter screen keeps contamination away from the valve components. The pintle is precision-ground and moves freely to block or vent fluid pressure.
Is 8542022150 an interchange number for the TCS224 solenoid?
Yes. Standard Ignition TCS224 is listed with 8542022150, along with TCS147, TCS767 and the other numbers on the Interchange line.
