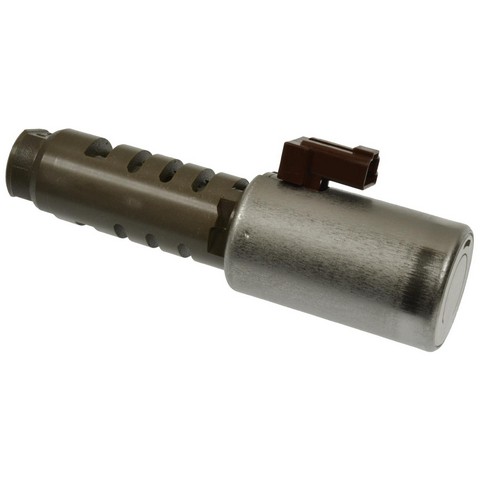

Standard Ignition TCS265 transmission control solenoid for the 2014-2018 Toyota RAV4 and other vehicles moves a pintle to block or vent fluid pressure in the transmission. Catalogs also list it as an automatic transmission control solenoid.
- 100% copper winding for positive valve actuation on command
- Precision-ground pintle that moves freely to block or vent fluid pressure
- Stainless steel filter screen to prevent contamination of valve components

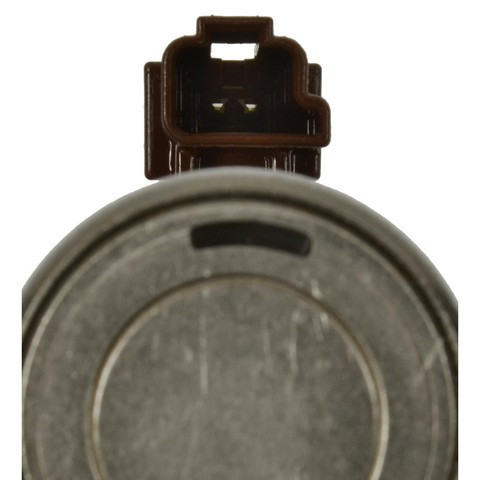

- Square female connector with two male blade terminals and push-on attachment
- 100% end-of-line testing on every solenoid
Quick facts
- Part: Standard Ignition TCS265 transmission control solenoid
- Also called: automatic transmission control solenoid
- Fits: 2014-2018 Toyota RAV4 and other vehicles
- Material: Metal
- Condition: New
Harsh or delayed shifts, or a transmission warning light, can mean a control solenoid is failing. A low fluid level, a damaged wire harness or a valve body fault can be behind these signs as well, so find the cause before buying. This listing is one solenoid, which is the quantity the transmission takes.
Fits
This transmission control solenoid is a direct-fit replacement for the 2014-2018 Toyota RAV4, the 2007-2017 Toyota Camry and the 2014-2019 Toyota Highlander, with resistance and inductance matched to OE for proper fit, form and function. If your Toyota, Lexus or Scion is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Solenoid quantity included: 1
- Connector: 1, square, female
- Terminals: 2, blade, male
- Attachment method: push on
Build and materials
- Material: Metal
- Winding: 100% copper
- Filter screen: stainless steel
- Condition: New
- Country of origin: Taiwan
In the box
One transmission control solenoid. Gaskets, hardware, a mounting bracket and a wiring harness are not included; plan on new gaskets and hardware, as the old ones may not be reusable.
Installation notes
- OE-matching connector and terminals for a precise connection to the engine wire harness and faster installation.
Interchange: TCS188 · TCS808 · 3521033030 · 3521073010
This part cross-references / interchanges with the following part numbers:
TCS188, TCS808, 3521033030, 3521073010, TCS265
Frequently Asked Questions
Does the Standard Ignition TCS265 fit a 2014-2018 Toyota RAV4?
Yes, Standard Ignition TCS265 fits the 2014-2018 Toyota RAV4 and the 2007-2017 Toyota Camry; other models are in the "Vehicles it fits" section.
Does this transmission control solenoid come with a wiring harness or gaskets?
No. This listing is one solenoid; the wiring harness, gaskets, hardware and mounting bracket are not included.
What connector does the TCS265 solenoid have?
Standard Ignition TCS265 has one square female connector with two male blade terminals, and it attaches push-on.
What does the stainless steel screen on this solenoid do?
The stainless steel filter screen prevents contamination of the valve components. Separately, the precision-ground pintle moves freely to block or vent fluid pressure.
Is the TCS265 interchangeable with 3521033030?
Yes. 3521033030 is one of the numbers this Standard Ignition TCS265 solenoid replaces.
