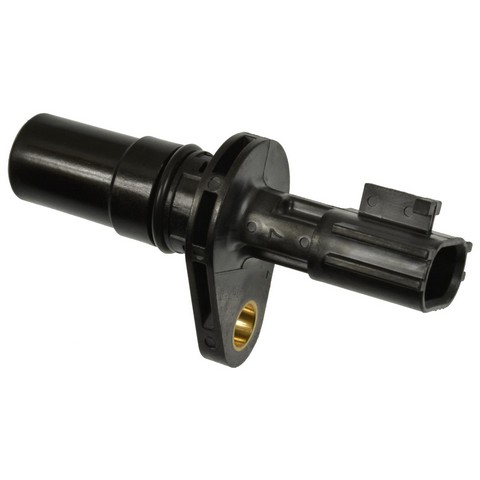

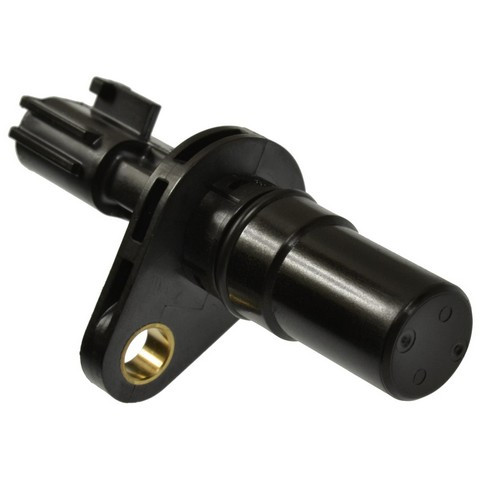

Standard Ignition SC580 input shaft speed sensor for the 2008-2011 Mitsubishi Lancer and other vehicles senses the speed of the transmission input shaft. That signal goes to the vehicle's control module, which uses it to manage shifting.
- Designed to support smooth transmission shifting and proper cruise control functionality
- Withstands extreme conditions, gunk and transmission fluid contamination
- Extensive testing by a quality assurance team to check reliability
- Designed to fix the inherent failure issues of the sensor it replaces
Quick facts
- Part: Standard Ignition SC580 input shaft speed sensor
- Also called: input speed sensor
- Fits: 2008-2011 Mitsubishi Lancer and other vehicles
- Condition: New
A failing input shaft speed sensor can show up as harsh or erratic shifts, cruise control that quits working or a check engine light, though other faults produce similar symptoms. Before you buy, and with the engine off and cool, look at the wiring and connector you can reach for damage, cracks or fluid seepage. A shop can read the stored codes.
Fits
It is a direct-fit OE replacement for the 2008-2011 Mitsubishi Lancer and the 2008-2010 Mitsubishi Outlander.
Specifications
Fit and size
- Quantity per vehicle: 1
- Attachment: bolt mount, 1 mounting hole
- Connector: oval, female, 1 connector
- Terminals: 3 male blade terminals
Build and materials
- Condition: New
- Country of origin: Japan
In the box
One input shaft speed sensor, and each vehicle takes one. Mounting hardware, a mounting bracket and a wiring harness are not included, so plan on new bolts, since the old ones may not be reusable.
Interchange: SN8282 · VSSA220 · VSS1114 · 8651A066 · 8651A290 · 8651A335
This part cross-references / interchanges with the following part numbers:
SN8282, VSSA220, VSS1114, 8651A066, 8651A290, 8651A335, SC580
Frequently Asked Questions
Is the Standard Ignition SC580 input speed sensor right for the 2008-2011 Mitsubishi Lancer?
Yes. The Standard Ignition SC580 is a direct-fit replacement for the 2008-2011 Mitsubishi Lancer, and the 2008-2010 Mitsubishi Outlander takes it as well.
Does the SC580 come with mounting bolts or a wiring harness?
No. This listing is one sensor; the mounting hardware, mounting bracket and wiring harness are not included, so plan on new bolts.
What connector does the Standard Ignition SC580 have?
The Standard Ignition SC580 has one oval female connector with three male blade terminals. It attaches with a bolt through one mounting hole.
Can the SC580 sensor handle transmission fluid contamination?
Yes. This sensor is made to withstand extreme conditions, gunk and transmission fluid contamination.
Does the SC580 replace number 8651A066?
Yes. 8651A066 is one of the numbers the Standard Ignition SC580 replaces, along with SN8282 and VSSA220.
