Give a worn switch harness a fresh, sealed plug with this Standard Ignition switch connector, part number S-594. It is a factory-assembled pigtail that replaces a damaged plug housing and its leads. It fits many vehicles, among them the 1981-1983 Chevrolet Malibu, 1980-1985 Chevrolet Impala and 1987 Dodge Charger. See the Buyer's Guide tab for the full list.
Standard Ignition describes this part as an A/C Pressure Switch Connector. It is also cataloged as a Barometric Pressure Sensor Connector and a Cruise Control Release Switch Connector, so you may find it under any of those names.
- Built to OE standards: Made to exact OE standards for specific vehicle applications, in facilities certified to TS16949 and ISO9001.
- Tested throughout production: Each connector goes through thorough quality checks and testing at every stage of manufacturing.
- Factory-assembled pigtail: Arrives assembled with 8.75 in (222.25 mm) wiring harness leads, designed for an easier install that needs no specialized tools.
- Sealed against the elements: Weatherproof sealed and weather resistant, with a push-on attachment.

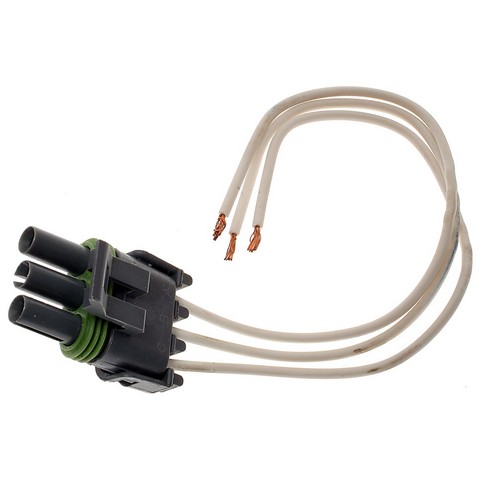

Specifications: Oval plastic connector with 3 male pin terminals, which are made of metal. It carries 3 wires of 16 gauge and has a 0° bend angle. The package contains one pigtail assembly. Splice connectors and a dust shield are not included. The listed applications use one connector. Country of origin: Taiwan.
Signs this connector may need replacing include a cracked or melted housing, corroded or loose terminals, and damaged wires at the plug. A faulty switch or sensor can cause similar symptoms, so diagnose the circuit before replacing parts.
Interchange: PT179 · 264 · EC13 · 12085507 · 88862231
This part cross-references / interchanges with the following part numbers:
PT179, 264, EC13, 12085507, 88862231
