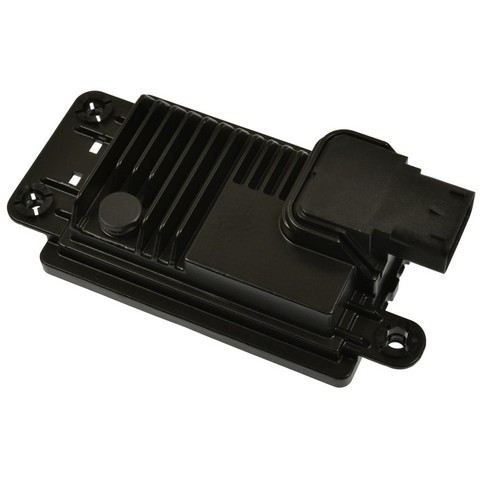

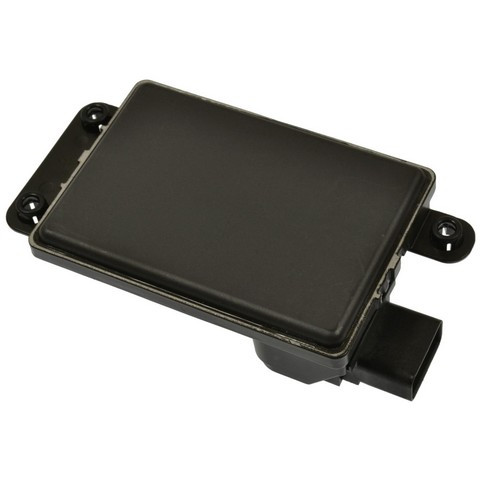

Standard Ignition CCD15 cruise control distance sensor for the 2014 Ford Fusion 4-cylinder 1.6L and the 2014-2016 Fusion 4-cylinder 1.5L, 2.0L or 2.5L senses the distance to the vehicle ahead for the cruise control system.
- Plug-in connector with 18 pin terminals
- Components and materials built to withstand harsh engine conditions
- Extensive testing and validation for proper performance and reliability
Quick facts
- Part: Standard Ignition CCD15 cruise control distance sensor
- Fits: 2014 Ford Fusion 4-cylinder 1.6L and the 2014-2016 Fusion 4-cylinder 1.5L, 2.0L or 2.5L
A cruise control that will not engage, or a cruise control warning on the dash, can mean the distance sensor has failed. Before you replace the sensor, rule out a damaged connector, loose wiring and other cruise control parts, since they can show up the same way. If the sensor is the cause, this unit replaces it. This listing is one sensor, which is the quantity the car takes.
Fits
It is a direct-fit OE replacement for the 2014 Ford Fusion 4-cylinder 1.6L and the 2014-2016 Fusion 4-cylinder 1.5L, 2.0L or 2.5L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Connector quantity: 1
- Terminal quantity: 18
Build and materials
- Connector type: plug in
- Connector gender: female
- Terminal type: pin
- Terminal gender: male
- Country of origin: Mexico
Interchange: 862-005
CCN15 · CDSC20003 · CCW15 · DG9Z9E731E · DG9Z9E731EE · DG9Z9E731H · DG9Z9E731L · DY1340 · DY1355 · DY1408
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
CCN15, CDSC20003, CCW15, DG9Z9E731E, DG9Z9E731EE, DG9Z9E731H, DG9Z9E731L, DY1340, DY1355, DY1408, 862-005
Frequently Asked Questions
Is the Standard Ignition CCD15 the right cruise control distance sensor for the 2014 Ford Fusion 4-cylinder 1.6L?
Yes. Standard Ignition CCD15 fits the 2014 Ford Fusion 4-cylinder 1.6L and the 2014-2016 Fusion 4-cylinder 1.5L, 2.0L or 2.5L, with one sensor per car.
How many pin terminals does the CCD15 connector have?
The connector is a female plug-in type with 18 male pin terminals. The Standard Ignition CCD15 has one connector.
Can this sensor replace number DG9Z9E731H?
Yes. DG9Z9E731H is one of the numbers this Standard Ignition CCD15 replaces, and it appears on the Interchange line of this page.
Why won't my cruise control engage, and could this distance sensor be involved?
A failed distance sensor can be one reason cruise control will not engage or a warning appears. A shop can test the sensor and its circuit.
Is the CCD15 distance sensor tested for reliability?
Yes. This sensor undergoes extensive testing and validation for proper performance and reliability.
