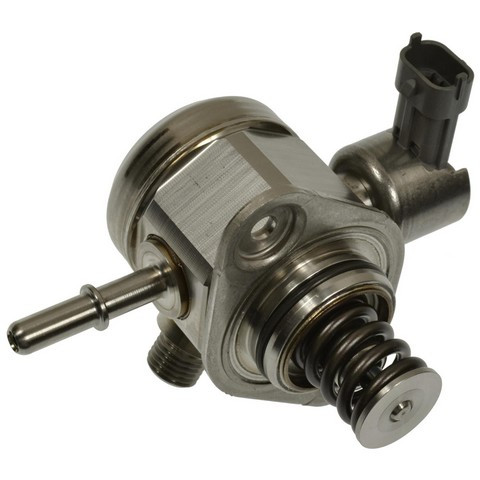

Standard Ignition GDP407 direct injection high pressure fuel pump for the 2011 Hyundai Equus V8 4.6L, the 2012 Equus V8 5.0L and other vehicles raises fuel pressure for the injectors of a GDI engine.
- Mechanical pump for gasoline direct injection (GDI) fuel systems
- Validated with 200+ hours of vibration testing, 1000+ hours of extreme heat and cold operational testing and on-vehicle testing
Quick facts
- Part: Standard Ignition GDP407 direct injection high pressure fuel pump
- Fits: the 2011 Hyundai Equus V8 4.6L, the 2012 Equus V8 5.0L and other vehicles
- Condition: New
A weak pump can show up as hard starting, rough running or a loss of power, though other fuel and ignition faults look the same. Before replacing it, look around the pump with the engine off and cool for fuel seepage or a damaged connector, and leave fuel pressure tests to a shop. This listing is one pump; the 2011 Hyundai Equus V8 4.6L takes two.
Fits
This direct-fit OE replacement suits the 2011 Hyundai Equus V8 4.6L and the 2012 Equus V8 5.0L, as well as the 2009-2012 Hyundai Genesis V8 4.6L and the 2012 Genesis V8 5.0L.
Specifications
Fit and size
- Quantity per vehicle: 2

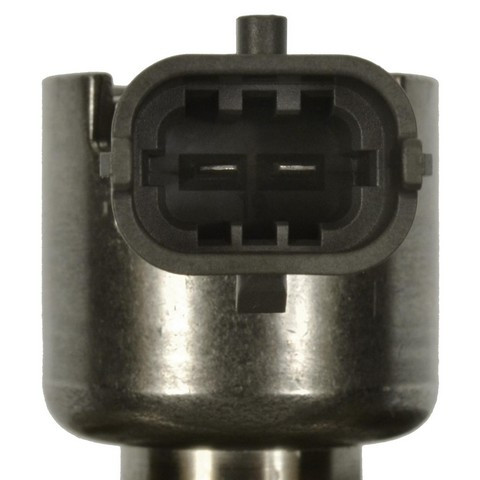

- Connector: oval, 2 blade terminals
Build and materials
- Type: mechanical, direct (GDI) fuel injection
- Fuel delivery: gas
- Condition: New
- Country of origin: Republic of Korea
In the box
One direct injection high pressure fuel pump with an O-ring and seals. The wiring harness and mounting hardware are not included, so plan on new bolts rather than reusing old ones.
Interchange: 2-34133 · 800-6234
PGD47 · 3203F200 · 3203F230 · 3263F200 · 3263F230 · 353203F000 · 353203F200 · 353203F230 · 353263F000 · 353263F200 · 353263F230
This part cross-references / interchanges with the following part numbers:
PGD47, 2-34133, 3203F200, 3203F230, 3263F200, 3263F230, 353203F000, 353203F200, 353203F230, 353263F000, 353263F200, 353263F230, 800-6234, GDP407
Frequently Asked Questions
Does the Standard Ignition GDP407 fit the 2009-2012 Hyundai Genesis V8 4.6L?
Yes. Standard Ignition GDP407 fits the 2009-2012 Hyundai Genesis V8 4.6L and the 2012 Genesis V8 5.0L.
Does the Standard Ignition direct injection high pressure fuel pump come with seals?
Yes. The pump comes with an O-ring and seals. The wiring harness and mounting hardware are not included.
What kind of connector does the GDP407 fuel pump have?
Standard Ignition GDP407 has an oval connector with 2 blade terminals.
What signs can a failing GDI high pressure fuel pump show?
Hard starting, rough running or a drop in power can go with a weak pump. A shop can test fuel pressure to confirm.
Does the GDP407 replace number 2-34133?
Yes. Standard Ignition GDP407 is listed as a replacement for 2-34133, along with the other numbers on the Interchange line.
