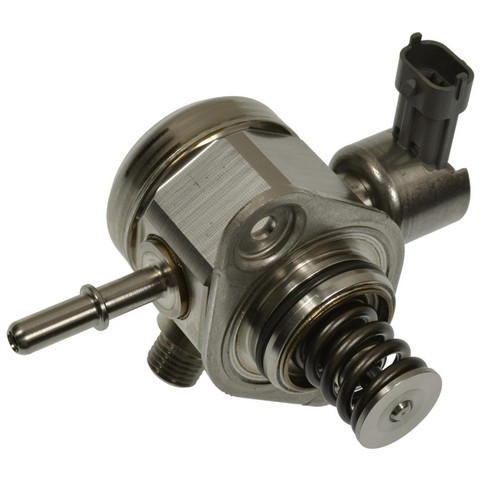

Restore high-pressure fuel delivery to your direct-injection Hyundai V8 with the Standard Ignition Direct Injection High Pressure Fuel Pump (GDP407). It's a direct-fit OE replacement for the 2011 Hyundai Equus [V8-4.6L], 2012 Hyundai Equus [V8-5.0L], 2009-2012 Hyundai Genesis [V8-4.6L] and 2012 Hyundai Genesis [V8-5.0L]. This mechanical pump raises the fuel to the high pressure the GDI (direct injection) system's injectors require. If a worn or failing high-pressure pump is the cause of hard starts, long cranking, rough running, or low fuel-rail-pressure codes, this replaces it.
- Direct-fit OE replacement: flagged as an O.E.M. replacement, designed to drop in on the listed applications for straightforward installation.
- Mechanical GDI pump: a mechanical, gasoline direct-injection high-pressure pump built to handle harsh engine conditions.
- Seals included: ships with an O-ring and seals (gasket or seal included); a wiring harness and mounting hardware are not included.
- Validated build: engineering validation runs 200+ hours of vibration testing plus 1000+ hours of extreme heat-and-cold and on-vehicle testing.

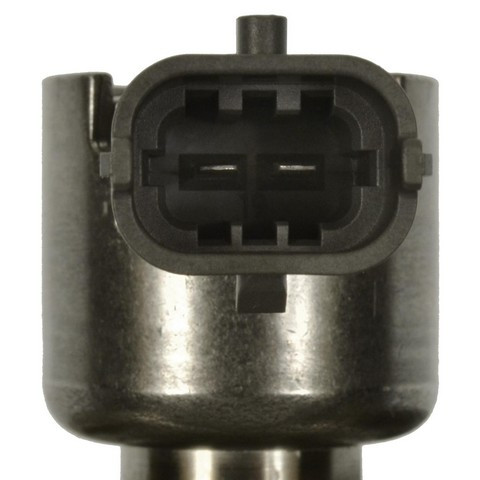

The pump uses an oval connector with two blade terminals. Each listed application uses two pumps, so plan accordingly; this listing is for one pump. Country of origin: Korea, Republic of.
Manufacturer part number GDP407.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
What does the GDP407 pump do?
It's the mechanical high-pressure fuel pump for the GDI system, raising fuel to the high pressure the direct injectors need on the listed Hyundai V8 applications.
Which vehicles does GDP407 fit?
It's a direct-fit OE replacement for the 2011 Equus (V8-4.6L), 2012 Equus (V8-5.0L), 2009-2012 Genesis (V8-4.6L) and 2012 Genesis (V8-5.0L). See the Buyer's Guide tab for the full list.
How many pumps do I need?
Each listed application uses two pumps (quantity 2 per application), so order two for a complete replacement. This listing is for one pump.
Are seals or hardware included?
Yes—it includes an O-ring and seals (gasket or seal included). A wiring harness and mounting hardware are not included.
What are signs this high-pressure pump may need replacing?
Hard starting, extended cranking, power loss, stalling under load, or stored low fuel-rail-pressure codes. Diagnose the cause first, since other parts can produce these signs.
