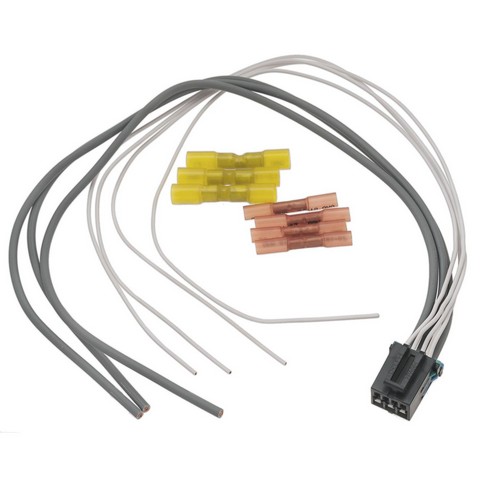

Standard S2350 door harness connector for the 2000-2007 Chevrolet Silverado 1500 and other vehicles joins the door wiring through a rectangular plastic housing. This multi-function connector is made to exact OE standards for its specific vehicle applications.

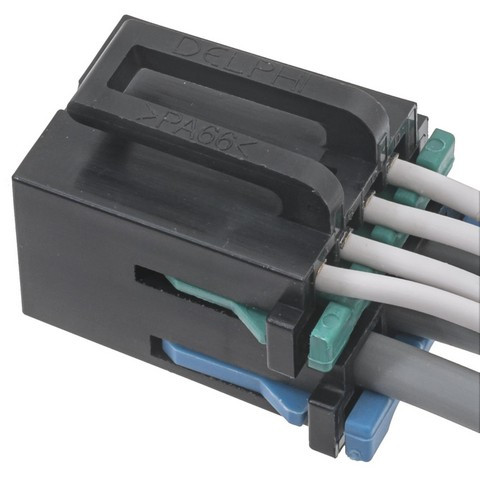

- Rectangular plastic housing with metal contact terminals
- Seven blade terminals with push-on attachment for seven wires in 12 and 20 gauge
- 17-inch (431.8 mm) wiring harness with seven splice connectors included
- Quality-checked and tested at every stage of production
Quick facts
- Part: Standard S2350 door harness connector
- Fits: 2000-2007 Chevrolet Silverado 1500 and other vehicles
- Material: Plastic
- Condition: New
Door electrics that cut in and out, or a plug with a cracked housing or corroded terminals, can mean the connector is worn. A chafed wire or a failed switch can also act this way, so look the connector over with the ignition off before you replace it.
Fits
This door harness connector fits the 2000-2007 Chevrolet Silverado 1500, the 2000-2007 Chevrolet Silverado 2500 and the 2000-2007 GMC Sierra 1500, one connector for each truck, while the quantity differs on other vehicles. The listing is a single connector. If your vehicle is a different model, look up its year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: varies by vehicle
- Number of wires: 7
- Wire gauge: 12, 20
- Wiring harness length: 17 in (431.8 mm)
- Splice connectors included: 7
- Connector shape: Rectangle
Build and materials
- Material: Plastic
- Contact terminal material: Metal
- Terminal type: Blade, 7 terminals
- Attachment method: Push on
- Dust shield: not included
- Condition: New
- Country of origin: Mexico
In the box
One door harness connector with its 17-inch wiring harness and seven splice connectors. A dust shield is not included.
Installation notes
- Comes factory-assembled with wire connectors and extended lead wires where applicable.
- No specialized tools are needed.
Interchange: PT2338 · 1314 · EC2253 · 15305947
This part cross-references / interchanges with the following part numbers:
PT2338, 1314, EC2253, 15305947
Frequently Asked Questions
Does the Standard S2350 door harness connector fit the 2000-2007 Chevrolet Silverado 2500?
Yes. Standard S2350 fits the 2000-2007 Chevrolet Silverado 2500 and takes one per truck. Other years and models are in the "Vehicles it fits" section.
What wiring comes with the Standard S2350 connector?
The S2350 comes with a 17-inch (431.8 mm) wiring harness and seven splice connectors. A dust shield is not included.
How many wires and what wire gauge does this door harness connector have?
This connector has seven wires and seven blade terminals. The wire gauge is 12 and 20.
What should I look for on a worn door harness connector?
With the ignition off, look for a cracked plastic housing, bent or corroded blade terminals, or chafed wires. If the connector looks fine, a shop can test the circuit.
Do I need special tools to install the Standard S2350 connector?
No. The S2350 is factory-assembled with wire connectors and extended lead wires where applicable, so specialized tools are not needed.
