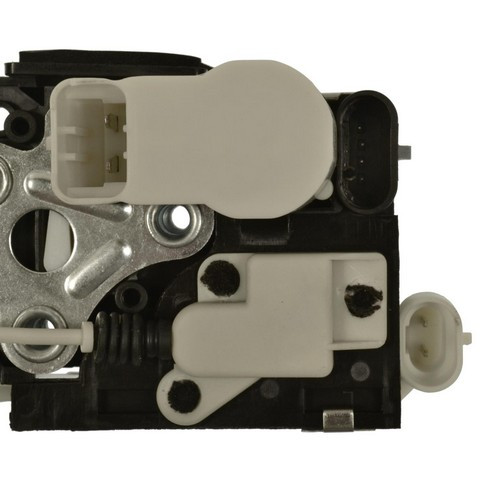

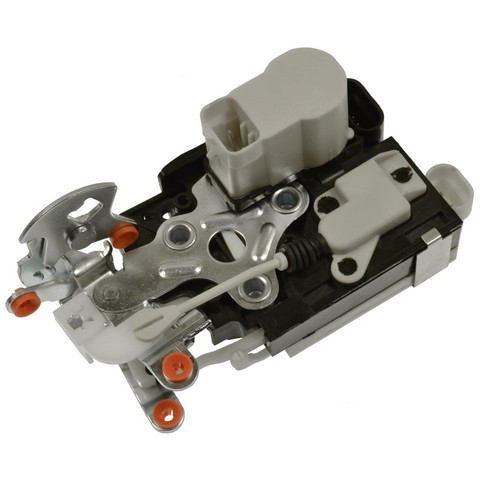

Standard Ignition DLA-693 front left door lock actuator for the 1995-2005 Chevrolet Blazer and other vehicles operates the power lock on the front left door. It comes with the latch.
If the front left door will not lock, will not unlock, or only works some of the time from the power switch, the actuator can be worn, though the door lock switch and the wiring to the door can also be behind those signs.
It fits the 1995-2005 Chevrolet Blazer, the 1995-2002 GMC Jimmy and the 1996-2001 Oldsmobile Bravada, and it has been tested to ensure proper fit. This listing is one actuator for the front left door; the 1996-2001 Oldsmobile Bravada takes one on that side, and the front right door's actuator is ordered separately.
Fit and size
Build and materials
One door lock actuator with its latch. Mounting hardware, a wiring harness and activation rods are not included, so plan on new bolts, since the old ones may not be reusable.
Product information is for general reference and may contain errors. See our Disclaimer.
Is this the right Chevy Blazer door lock actuator for a 1995-2005 Blazer?
Yes. Standard Ignition DLA-693 fits the 1995-2005 Chevrolet Blazer and is made for the front left door.
Is this the GMC Jimmy door lock actuator for the front left door on a 1995-2002 Jimmy?
Yes. It fits the 1995-2002 GMC Jimmy on the front left door. The front right door's actuator is a separate part.
Does the front left actuator come with the latch and bolts?
It comes with the latch. Mounting hardware, a wiring harness and activation rods are not included, so plan on new bolts.
How many connectors and terminals does this door lock actuator have?
It has three female connectors with blade terminals, carrying 4, 2 and 2 terminals. The wiring harness is not included.
Is the Standard Ignition DLA-693 housing corrosion-resistant?
Yes. The corrosion-resistant housing adds to the latch's durability. The actuator is also designed to meet Federal Safety Standards to reduce the possibility of passenger entrapment.
