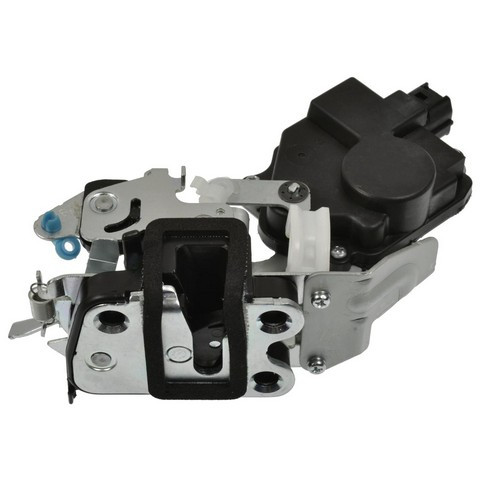

Standard Ignition DLA-714 rear left door lock actuator for the 2001-2005 Kia Rio locks and unlocks the door latch when the power lock system sends the signal.
- Designed to meet Federal Safety Standards to reduce the possibility of passenger entrapment
- Durable corrosion-resistant housing for the latch
- Tested for reliable service
- Latch included with the actuator
Quick facts
- Part: Standard Ignition DLA-714 door lock actuator
- Fits: 2001-2005 Kia Rio
- Position: Rear left
- Condition: New
A door that ignores the power lock switch, locks only some of the time, or buzzes inside the panel can mean the actuator is wearing out. A blown fuse, damaged wiring or a faulty lock switch can be behind these symptoms too, so track down the cause before you buy. This listing is one actuator for the rear left door; the rear right door takes its own. The rear left door takes one.
Fits
This door lock actuator is a direct-fit replacement for the 2001-2005 Kia Rio.
Specifications
Fit and size
- Position: Rear left
- Quantity per application: 1
- Attachment method: Bolt on
- Connector: 1 square, female
- Terminals: 2, male blade
Build and materials
- Latch: included
- Activation rods: not included
- Wiring harness: not included
- Condition: New
- Country of origin: Korea, Republic of
In the box
One door lock actuator with its latch. The wiring harness, mounting hardware and activation rods are not included; plan on new bolts, since the old ones may not be reusable.
Interchange: DLA1437 · DLA1235 · DLA937 · 81415FD100
This part cross-references / interchanges with the following part numbers:
DLA1437, DLA1235, DLA937, 81415FD100, DLA-714
Frequently Asked Questions
Is the Standard Ignition DLA-714 the right door lock actuator for the 2001-2005 Kia Rio?
Yes. Standard Ignition DLA-714 is the rear left door lock actuator for the 2001-2005 Kia Rio. The rear right door takes a separate actuator.
Does the DLA-714 come with the door latch?
Yes, the latch is included with the actuator. The wiring harness, mounting hardware and activation rods are not part of this listing.
What kind of connector does this rear left door lock actuator have?
It has one square female connector with two male blade terminals, and it attaches to the door with bolts.
How can I tell a rear left door lock actuator is going bad?
A door that locks or unlocks only some of the time, ignores the power lock switch, or buzzes inside the panel can be signs of a worn actuator. A shop can test it.
Does DLA1437 interchange with Standard Ignition DLA-714?
Yes. DLA1437 is listed as an interchange number for Standard Ignition DLA-714, along with DLA1235, DLA937 and 81415FD100.
