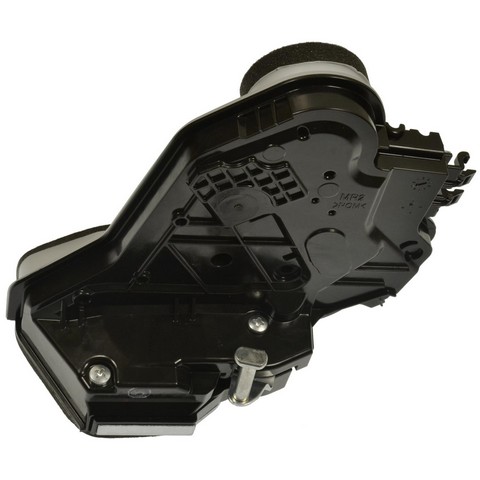

Standard Ignition DLA1427 rear right door lock actuator for the 2014-2020 Toyota Highlander locks and unlocks that door when the power lock is operated.
- Designed to meet Federal Safety Standards to reduce the possibility of passenger entrapment
- Corrosion-resistant housing adds to the latch's durability

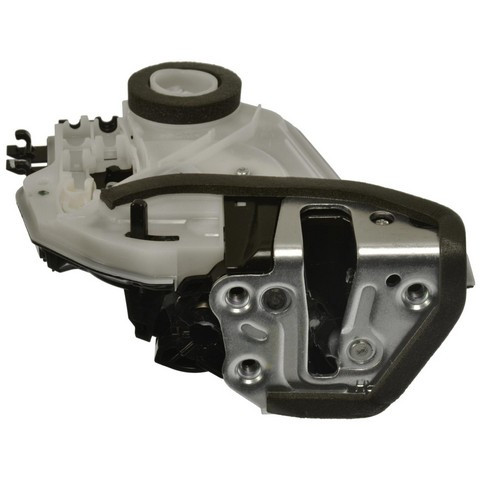

- Door latch included with the actuator

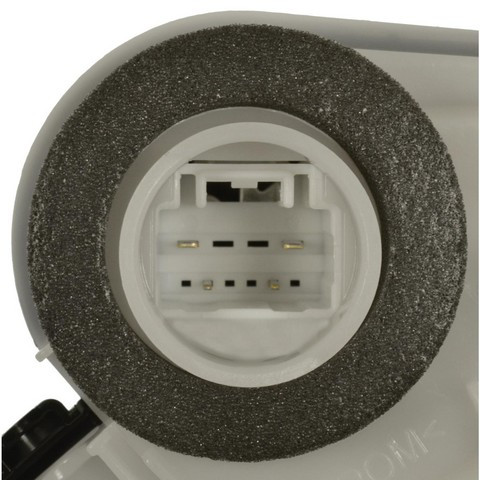

- One rectangular female connector with four male blade terminals
Quick facts
- Part: Standard Ignition DLA1427 door lock actuator
- Fits: 2014-2020 Toyota Highlander
- Position: Rear right
- Condition: New
A rear door that will not lock or unlock from the switch or key fob, a buzzing or grinding noise inside the door, or a lock that works only some of the time can mean the actuator is wearing out. Before replacing it, look at the connector and wiring at the door with the engine off for corrosion or damage; a poor connection can act like a failed actuator.
Fits
This is a direct-fit replacement for the 2014-2020 Toyota Highlander, and it has undergone testing to ensure proper fit and reliable service. This listing is one actuator for the rear right door; the 2014-2020 Toyota Highlander takes one in that position, and the rear left is ordered separately.
Specifications
Fit and size
- Position: Rear right
- Quantity per vehicle: 1
- Connector: 1 rectangular, female
- Terminals: 4, male blade
- Attachment method: Bolt on
Build and materials
- Condition: New
- Country of origin: China
In the box
One door lock actuator with its latch. The wiring harness, mounting hardware and activation rods are not included, and the old mounting hardware may not be reusable, so plan on new pieces.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is the Standard Ignition DLA1427 rear right door lock actuator right for the 2014-2020 Toyota Highlander?
Yes. The Standard Ignition DLA1427 is a rear right door lock actuator listed for the 2014-2020 Toyota Highlander. The rear left door takes a separate part.
Does the DLA1427 come with a wiring harness or mounting hardware?
No. This Standard Ignition DLA1427 comes with its latch, but the wiring harness, mounting hardware and activation rods are not included.
What kind of connector does this door lock actuator have?
This rear right door lock actuator has one rectangular female connector with four male blade terminals.
How can I tell if a rear door lock actuator is failing?
A lock that moves slowly or not at all, a buzzing or grinding from inside the door, or a door that locks only some of the time can mean a failing actuator. A shop can test the circuit.
Is this door lock actuator designed to meet a safety standard?
Yes. The Standard Ignition DLA1427 is designed to meet Federal Safety Standards, which aim to reduce the chance of a passenger being trapped.
