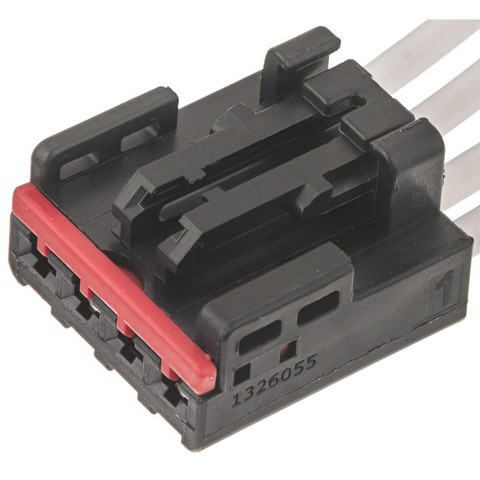

Standard Ignition S2508 left switch for the 2003-2006 Chevrolet Silverado 1500 and other vehicles is a multi-function connector for door lock and power window switch wiring. This Standard Ignition switch connector replaces a damaged plug on the door lock or power window switch.
A door lock or power window that works only some of the time can mean this connector is worn, though the switch itself or the window motor can be behind it too, so find the actual cause before replacing the connector.
The listing covers a wide range of Chevrolet, GMC and Cadillac models, including the 2003-2007 Chevrolet Silverado 2500 and the 2003-2006 GMC Sierra 1500. To check your exact model and engine, open the "Vehicles it fits" section. The 2003-2006 Chevrolet Silverado 1500 takes one on the left side; the other side is a separate part.
Fit and size
Build and materials
One switch connector with its 18-inch wiring harness and four splice connectors. A dust shield is not included.
Is the S2508 among the 2003-2006 GMC Sierra 1500 switches for the left side?
Yes. Standard Ignition S2508 is listed for the 2003-2006 GMC Sierra 1500 as a left-side switch connector.
Does the S2508 switch connector come with splice connectors and a wiring harness?
Yes. Standard Ignition S2508 includes an 18-inch wiring harness and four splice connectors. A dust shield is not included.
What wire gauge and terminal type does this switch connector use?
The harness has four 12-gauge wires and runs 18 inches (457.2 mm), with four female blade terminals on the connector.
Do I need special tools to install this door lock switch connector?
No. The connector comes factory-assembled with wire connectors and extended lead wires where applicable, and needs no specialized tools.
How can I tell if a power window switch connector is worn?
Look for cracked or melted plastic, corrosion on the metal terminals or a loose plug with the ignition off, and note whether the lock or window works only part of the time.
