Standard Ignition DWS1699 front right door lock switch for the 2006-2008 Cadillac DTS and other vehicles works the passenger window up/down controls and the lock/unlock function. It is also sold as a power window switch with two switches.
- Copper alloy conductors for low resistive losses
- Testing verifies both mechanical and electrical switching performance
- Two switches: passenger window up/down controls plus lock/unlock
- Rectangular female connector with a snap-fit attachment
- 12V rating with plastic construction
Quick facts
- Part: Standard Ignition DWS1699 door lock switch
- Fits: 2006-2008 Cadillac DTS and other vehicles
- Position: Front right
- Material: Plastic
- Condition: New
A worn switch can show up as a passenger window that moves slowly or not at all, or a lock and unlock control that does not respond. Before you replace the switch, rule out a blown fuse, a damaged wire at the connector or a faulty window motor, since those can produce similar symptoms.
Fits
This door lock switch is an OE replacement for the 2006-2008 Cadillac DTS and the 2007 Cadillac SRX. It is made for the front right; the front left is a separate part.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1
- Number of switches: 2
- Window up/down controls: Passenger
- Voltage: 12V

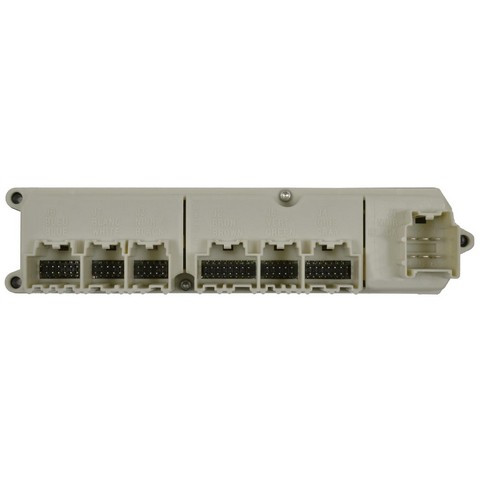

- Connector: Rectangular, female
Build and materials
- Material: Plastic
- Color/finish: Black, Tan
- Attachment method: Snap fit
- Master switch: No
- Lock/unlock: Included
- Condition: New
- Country of origin: Mexico
In the box
One door lock switch; the front right position takes one. A wiring harness and mounting hardware are not included, and old fasteners may not be reusable.
Interchange: WST1799 · PA4569 · 10366693 · 15297035 · 15848179 · 15911987 · 25860477
This part cross-references / interchanges with the following part numbers:
WST1799, PA4569, 10366693, 15297035, 15848179, 15911987, 25860477
Frequently Asked Questions
Is this DTS switch right for the 2006-2008 Cadillac DTS?
Yes. Standard Ignition DWS1699 is a front right door lock switch that fits the 2006-2008 Cadillac DTS.
Does this SRX switch fit the 2007 Cadillac SRX?
Yes. Standard Ignition DWS1699 fits the 2007 Cadillac SRX at the front right position.
Is this Standard Ignition switch a master switch?
No. This door lock switch is not a master switch. It has two switches, the passenger window up/down controls plus lock/unlock, and it is not illuminated.
Does the door lock switch come with a wiring harness?
No. The listing is one door lock switch; a wiring harness and mounting hardware are not included.
What voltage and connector does the DWS1699 use?
The DWS1699 is rated 12V. It has a rectangular female connector with blade and pin terminals and attaches with a snap fit.
