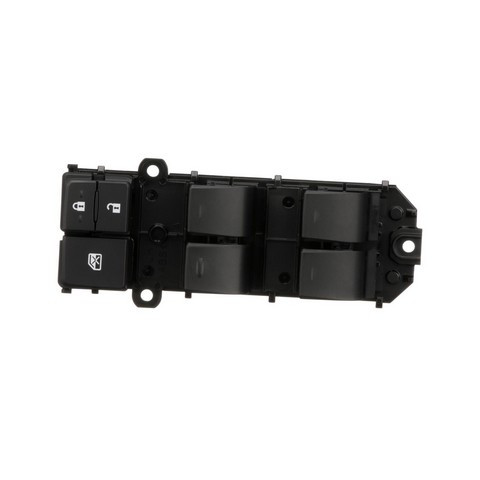

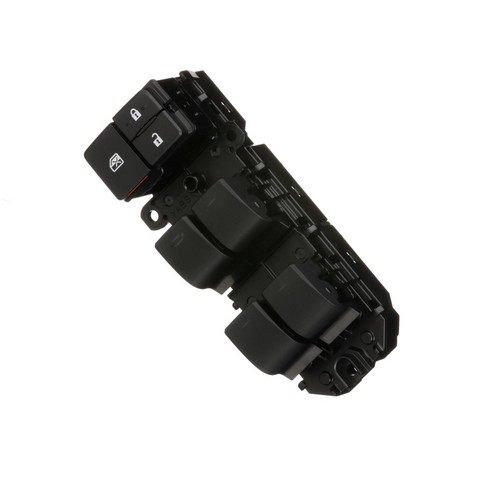

Standard Ignition DWS2211 front left door lock switch for the 2018-2021 Lexus NX300 and other vehicles passes your input to the door's electrical circuits. It is also called a power window switch.
- Copper alloy conductors with low resistive losses
- Testing verifies both mechanical and electrical switching performance

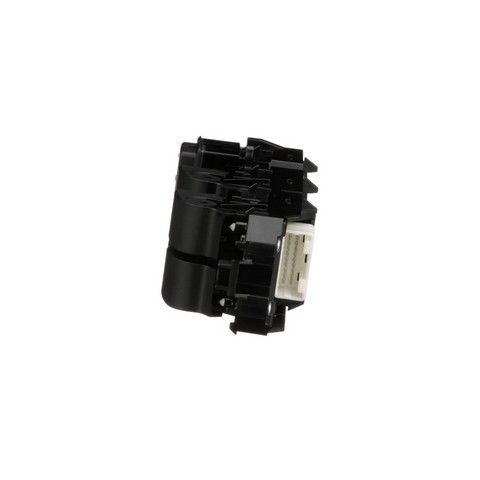

- 20 male blade terminals in one female polygon-shaped connector
- Plastic and metal finish in black and white
Quick facts
- Part: Standard Ignition DWS2211 door lock switch
- Also called: power window switch
- Fits: 2018-2021 Lexus NX300 and other vehicles
- Position: Front left
- Condition: New
A switch that responds only sometimes, or not at all, can mean it is worn, though the door lock actuator or the wiring connector can be behind the same signs, so find the cause before replacing it.
Fits
It is a direct-fit OE replacement for the 2018-2021 Lexus NX300, the 2015-2021 Lexus NX300h and the 2015-2017 Lexus NX200t.
Specifications
Fit and size
- Position: front left
- Quantity per vehicle: 1
- Terminals: 20, male blade
- Connector: 1, female, polygon shape
Build and materials
- Attachment method: snap/bolt in
- Finish: plastic, metal
- Color: black, white
- Condition: new
- Country of origin: Japan
In the box
One door lock switch. This listing holds one switch, and the front left takes one; switches for other doors are ordered separately.
Installation notes
- Attaches by snap or bolt in.
- Engineered for simplified installation.
Interchange: WST2312 · PA5104 · 8404078010 · 8404078030
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
WST2312, PA5104, 8404078010, 8404078030, DWS2211
Frequently Asked Questions
Does the Standard Ignition DWS2211 fit the 2015-2021 Lexus NX300h?
Yes. Standard Ignition DWS2211 is a front left door lock switch for the 2015-2021 Lexus NX300h, which takes one for that position.
How many terminals does this Standard Ignition switch have?
Standard Ignition DWS2211 has 20 male blade terminals and one female polygon-shaped connector.
Does this front left door lock switch come as a single piece?
Yes. The listing holds one switch, and the front left takes one; switches for other doors are ordered separately.
What can a failing front left door lock switch look like?
Signs can include a button that works only sometimes, one that does nothing, or a cracked housing. A shop can test the circuit.
How does the DWS2211 attach in the door?
The attachment method is snap/bolt in, and this switch is engineered for simplified installation.
