Front Left Door Window Switch for 1995-1996 Nissan Maxima & More - Standard Ignition DS-1740

$375.99
Standard Ignition Door Window Switch DS-1740
Standard Ignition Door Window Switch DS-1740 - view 2
Standard Ignition Door Window Switch DS-1740 - view 3
Standard Ignition Door Window Switch DS-1740
Standard Ignition Door Window Switch DS-1740 - view 2
Standard Ignition Door Window Switch DS-1740 - view 3

Vehicles this part fits
    Part number: DS-1740
    UPC: 091769799526
    Condition: New
    Weight: 0.40 LBS
    Item Package Quantity: 1
    $375.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

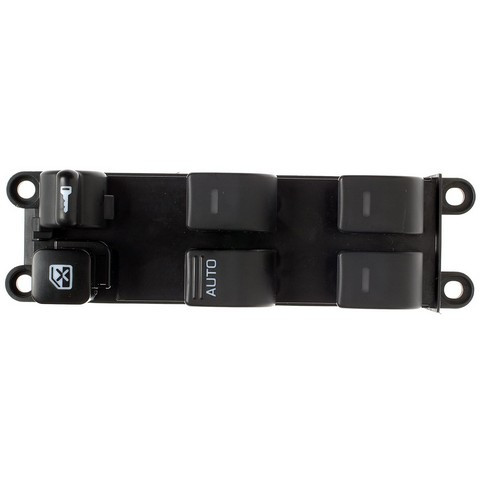

    Standard Ignition Door Window Switch P/N:DS-1740

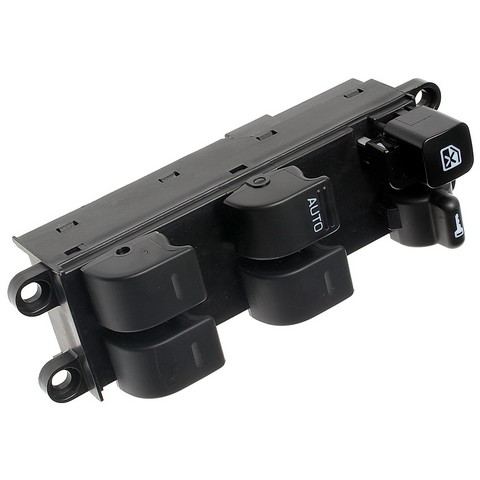

    Standard Ignition Door Window Switch P/N:DS-1740
    $375.99
    $375.99

    Standard Ignition DS-1740 left door window switch for the 1995-1996 Nissan Maxima and other vehicles is the switch you press to raise or lower a power window.

    • Copper alloy conductors give good electrical conductivity with low resistive losses
    • Testing verifies both the mechanical and the electrical switching performance
    • One rectangular connector with 16 terminals, blade and pin type

    Quick facts

    • Part: Standard Ignition DS-1740 door window switch
    • Fits: 1995-1996 Nissan Maxima and other vehicles
    • Position: Front left
    • Material: Copper alloy conductors
    • Condition: New

    A window that ignores the button, or responds only part of the time, can mean a worn switch. Before you replace the switch, rule out a failed window motor, a blown fuse and a damaged wiring connection, since each of those can leave a window unresponsive too. This listing is one switch for the left side, and that side takes one; the other side is a separate part.

    Fits

    It fits the 1995-1996 Nissan Maxima and the 1996-1997 Infiniti I30, and is engineered as an OE replacement for these vehicles.

    Specifications

    Fit and size

    • Position: Front left, left
    • Quantity per vehicle: 1
    • Connector shape: Rectangular
    • Connector quantity: 1
    • Connector gender: Female
    • Terminal quantity: 16

    Build and materials

    • Function: Power window switch
    • Terminal type: Blade; Pin
    • Terminal gender: Male
    • Conductors: Copper alloy
    • Condition: New
    • Country of origin: Japan

    Interchange: S9764 · SW7477 · PA760 · 2540140U00 · 2540140U01

    This part cross-references / interchanges with the following part numbers:

    S9764, SW7477, PA760, 2540140U00, 2540140U01, DS-1740

    Frequently Asked Questions

    Does the Standard Ignition DS-1740 fit the 1996-1997 Infiniti I30?

    Yes. The Standard Ignition DS-1740 is a left door window switch that fits the 1996-1997 Infiniti I30 and the 1995-1996 Nissan Maxima.

    How many terminals does this window switch have?

    The Standard Ignition DS-1740 has one rectangular female connector with 16 male terminals, blade and pin type.

    Is this door window switch tested for electrical performance?

    Yes. This switch undergoes testing that verifies both its mechanical and its electrical switching performance.

    My left window only moves some of the time; could the switch be worn?

    It can be. A worn window switch may make the window respond only part of the time, and a shop can test the switch and its circuit to find the cause.

    Does the DS-1740 window switch cross-reference to SW7477?

    Yes. SW7477 is one of the numbers this switch replaces, along with S9764, PA760, 2540140U00 and 2540140U01.
