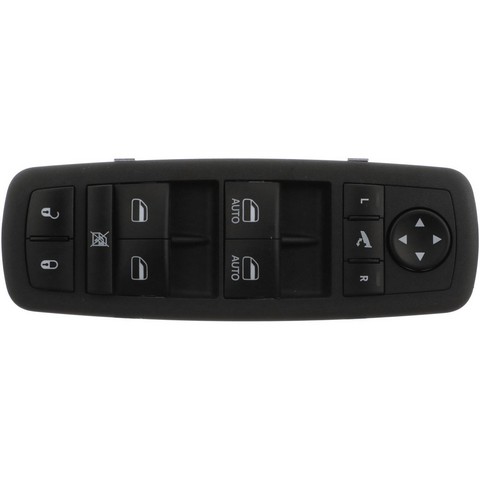

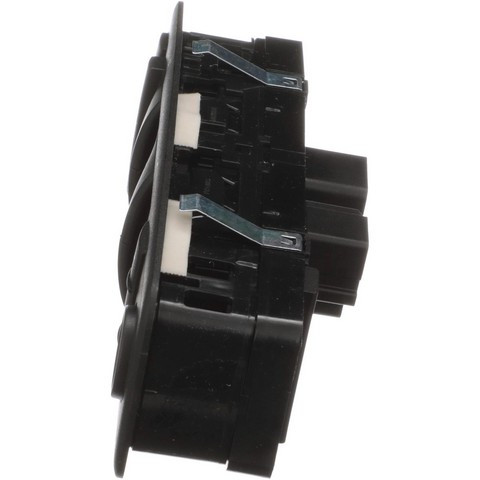

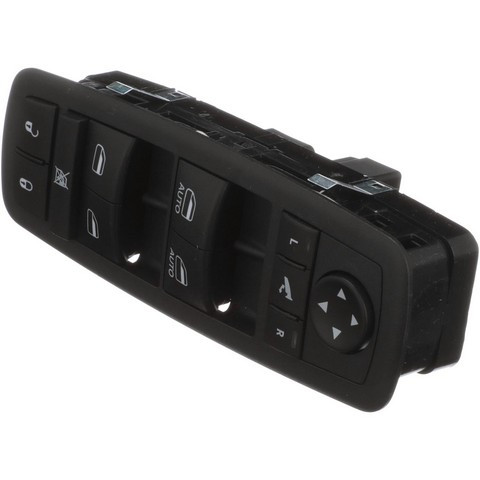

Standard Ignition DWS2132 front left door window switch for the 2014-2015 Ram 2500 operates the power window from the front left door. This Standard Ignition switch has indicator markings and is sold as a single unit.
- Copper alloy conductors for electrical conductivity with low resistive losses
- Testing verifies both mechanical and electrical switching performance
- Two rectangular female connectors
- 12 male blade and pin terminals
Quick facts
- Part: Standard Ignition DWS2132 door window switch
- Fits: 2014-2015 Ram 2500
- Position: Front left
A power window that responds only now and then, or not at all from this switch, can mean the switch is worn, but other parts in the window circuit may be behind it. Before replacing the switch, look over its face and connector with the ignition off for cracks, debris or a loose plug; a shop can test the circuit if nothing shows.
Fits
It is an OE replacement for the 2014-2015 Ram 2500, which takes one at the front left. This listing is one switch for that position, so the front right is a separate part ordered on its own.
Specifications
Fit and size
- Position: Front left
- Quantity per application: 1
- Connector quantity: 2
- Connector shape: Rectangular
- Terminal quantity: 12
Build and materials
- Terminal type: Blade and pin
- Terminal gender: Male
- Connector gender: Female
- Attachment method: Direct, snap fit
- Finish: Plastic, metal
- Color: Black, silver, white
- Indicator markings: Included
- Country of origin: China
In the box
One door window switch. A wiring harness and mounting hardware are not included.
Installation notes
- Attaches directly with a snap fit.
- Engineered for simplified installation.
Interchange: WST2232 · 68212784AA · 68212784AB · 68620453AA · SW11254 · PA5023
This part cross-references / interchanges with the following part numbers:
WST2232, 68212784AA, 68212784AB, 68620453AA, SW11254, PA5023
Frequently Asked Questions
Is DWS2132 one of the 2014-2015 Ram 2500 switches for the front left door?
Yes. Standard Ignition DWS2132 is the front left door window switch for the 2014-2015 Ram 2500, and it is sold one per listing.
Does the Standard Ignition DWS2132 come with a wiring harness?
No. This listing is the door window switch only; a wiring harness and mounting hardware are not included.
How many terminals does this front left window switch have?
It has 12 male blade and pin terminals. They sit on two rectangular connectors, which are female.
What are the signs of a failing door window switch?
A window that moves only sometimes, does not move from this switch, or a switch face that is cracked or worn can mean the switch is failing. A shop can test the circuit to confirm.
How does this window switch attach to the door?
Standard Ignition DWS2132 attaches directly with a snap fit. Mounting hardware is not included, and the switch has indicator markings.
