Camshaft Synchronizer for 1996-1997 Ford Explorer & More - Standard Ignition CSA8

$115.99
Standard Ignition Engine Camshaft Synchronizer CSA8
Standard Ignition Engine Camshaft Synchronizer CSA8

Vehicles this part fits
    Part number: CSA8
    UPC: 025623463292
    Condition: New
    Weight: 1.02 LBS
    Item Package Quantity: 1
    $115.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Standard Ignition Engine Camshaft Synchronizer P/N:CSA8
    Standard Ignition Engine Camshaft Synchronizer P/N:CSA8
    $115.99
    $115.99

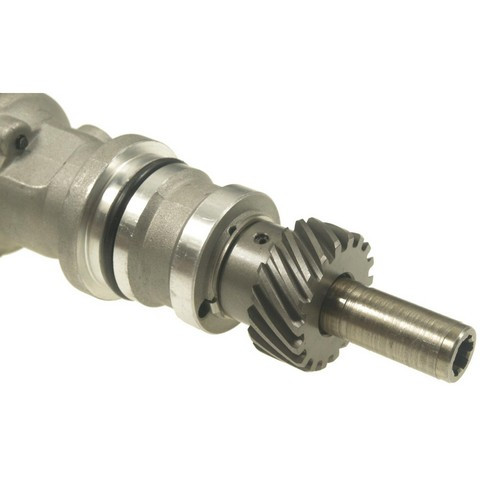

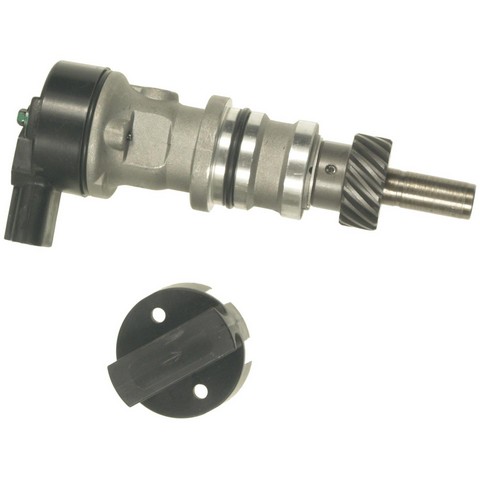

    Standard Ignition CSA8 camshaft synchronizer for the 1996-1997 Ford Explorer V6 4.0L and other vehicles reports camshaft position to the engine computer.

    • 100% environmental, endurance and end-of-line testing for timing, pulse width and signal amplitude
    • Advanced circuitry protects the system from stray electro-magnetic fields and power spikes
    • Custom magnetic circuit programming calibrates the sensor in testing and improves timing accuracy between target wheel and sensor output
    • Integrated A/D converter and digital signal processing with a dynamically adaptive switch point improve accuracy

    Quick facts

    • Part: Standard Ignition CSA8 camshaft synchronizer
    • Also called: engine camshaft synchronizer
    • Fits: 1996-1997 Ford Explorer V6 4.0L and other vehicles

    When an engine camshaft synchronizer wears out or fails, the engine can start hard or stall, and the check engine light may come on. Before you replace it, rule out a damaged wiring harness or a poor connector at the terminals, which can produce similar symptoms.

    Fits

    This synchronizer is listed for a wide range of Ford and Mazda models with the V6 4.0L, including the 1996-1997 Ford Ranger V6 4.0L and the 1996-1999 Mazda B4000 V6 4.0L. Each engine takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Terminals: 3 male blade terminals

    Build and materials

    • Contents: complete kit, includes O-ring
    • Country of origin: China

    In the box

    One camshaft synchronizer and one O-ring.

    Interchange: CZA107 · ECS1001 · CSU107 · DA2099 · F67Z12A362AAA · F67Z12A362AAB

    This part cross-references / interchanges with the following part numbers:

    CZA107, ECS1001, CSU107, DA2099, F67Z12A362AAA, F67Z12A362AAB

    Frequently Asked Questions

    Is CSA8 the Ford Ranger camshaft synchronizer for a 1996-1997 V6 4.0L?

    Yes, Standard Ignition CSA8 is listed for the 1996-1997 Ford Ranger V6 4.0L. If your vehicle is not named here, look it up in the "Vehicles it fits" section.

    Will a Ford Explorer camshaft synchronizer like the CSA8 fit a 1996-1997 Ford Explorer V6 4.0L?

    Yes, Standard Ignition CSA8 is listed for the 1996-1997 Ford Explorer V6 4.0L, and that engine takes one.

    Does the Standard Ignition CSA8 camshaft synchronizer come with an O-ring?

    Yes. The CSA8 is sold as a complete kit and includes an O-ring along with the synchronizer.

    How many terminals does the Standard Ignition CSA8 camshaft synchronizer have?

    Standard Ignition CSA8 has three male blade terminals.

    Does the CSA8 replace Ford F67Z12A362AAA?

    Yes. F67Z12A362AAA is one of the numbers this Standard Ignition CSA8 replaces; the others are on the Interchange line.
