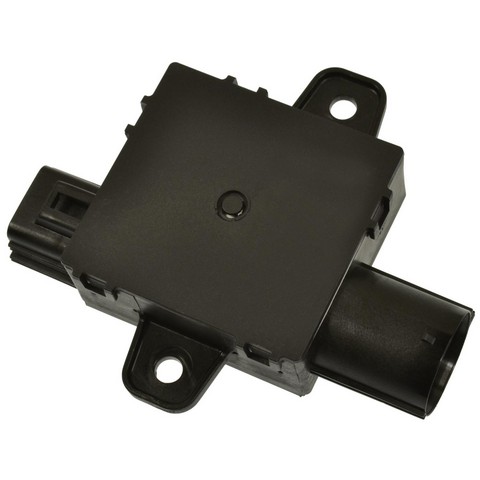

Standard Ignition RY1941 cooling fan module for the 2016-2020 Chevrolet Camaro 4-cylinder 2.0L, V6 3.6L or V8 6.2L and other vehicles helps control the engine cooling fan. It is also called an engine cooling fan module.
- Copper alloy conductors with minimal resistive losses
- Aluminum contacts for durability and longevity
- Composite housing that protects against harsh temperatures and severe under-hood conditions
- Epoxy that protects the relay from dust, heat and moisture
- Extensive testing and validation for proper performance
Quick facts
- Part: Standard Ignition RY1941 cooling fan module
- Also called: engine cooling fan module
- Fits: the 2016-2020 Chevrolet Camaro 4-cylinder 2.0L, V6 3.6L or V8 6.2L and other vehicles
- Condition: New
Signs can include a fan that does not start, a fan that runs constantly, or temperature that climbs at idle. A fan motor, a fuse or relay, a coolant temperature sensor or low coolant can be behind these signs too, so find the cause before buying; a shop can test the circuit.
Fits
This module fits the 2016-2020 Chevrolet Camaro 4-cylinder 2.0L, V6 3.6L or V8 6.2L, the 2014 Cadillac CTS V6 3.0L and the 2014-2019 CTS 4-cylinder 2.0L, V6 3.6L or V8 6.2L, and the 2013-2017 Cadillac ATS 4-cylinder 2.5L and the 2013-2019 ATS 4-cylinder 2.0L or V6 3.6L, with a single module per car.
Specifications
Fit and size
- Quantity per vehicle: 1
- Connectors: 2, rectangular, male
- Terminals: 4 male blade terminals
Build and materials
- Conductors: copper alloy
- Contacts: aluminum
- Housing: composite
- Condition: New
- Country of origin: China
Interchange: R7444 · AR7445 · 22761222 · 23188752 · 23506648
This part cross-references / interchanges with the following part numbers:
R7444, AR7445, 22761222, 23188752, 23506648
Frequently Asked Questions
Does the Standard Ignition RY1941 fit the 2016-2020 Chevrolet Camaro V6 3.6L?
Yes. Standard Ignition RY1941 is listed for the 2016-2020 Chevrolet Camaro in 4-cylinder 2.0L, V6 3.6L and V8 6.2L, with one module per car.
Is this cooling fan module right for the 2013-2017 Cadillac ATS 4-cylinder 2.5L?
Yes. Standard Ignition RY1941 is listed for the 2013-2017 Cadillac ATS 4-cylinder 2.5L, and also for the 2013-2019 ATS in 4-cylinder 2.0L and V6 3.6L.
What connectors and terminals does the RY1941 cooling fan module have?
This module has two rectangular male connectors and four male blade terminals.
What can a failing cooling fan module look like on the road?
Signs can include a fan that does not start, a fan that runs constantly, or engine temperature that rises at idle. A shop can test the fan circuit to confirm the cause.
Does Standard Ignition RY1941 cross to 22761222?
Yes. 22761222 is listed as an interchange number for Standard Ignition RY1941, along with R7444, AR7445, 23188752 and 23506648.
