Cooling Fan Switch for 1987-1991 Toyota Camry & More - Standard Ignition TS-184

$64.99

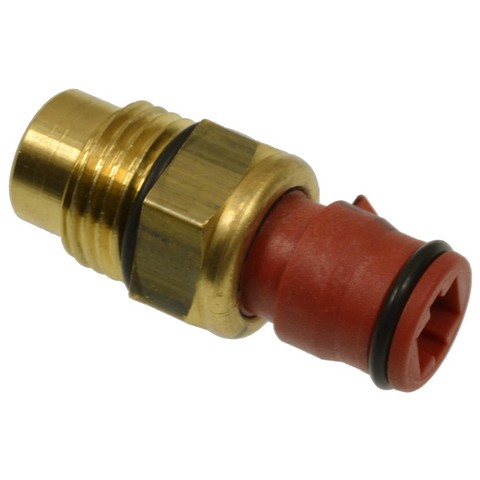

Standard Ignition Engine Cooling Fan Switch TS-184

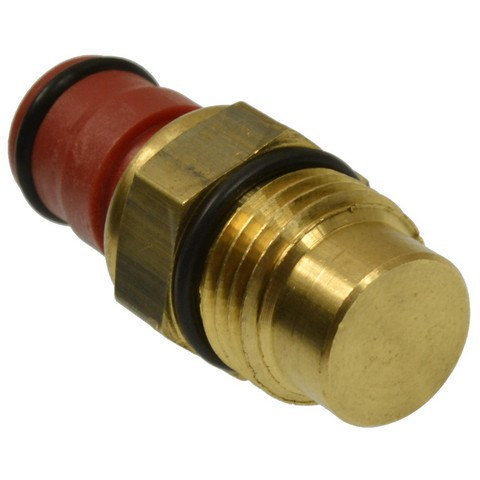

Standard Ignition Engine Cooling Fan Switch TS-184 - view 2

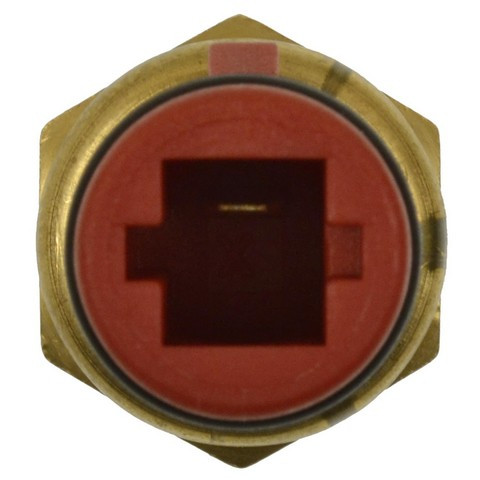

Standard Ignition Engine Cooling Fan Switch TS-184 - view 3

Part number: TS-184

UPC: 091769080082

Condition: New

Weight: 0.10 LBS

Item Package Quantity: 1

$64.99

Current Stock: 95

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Standard Ignition Engine Cooling Fan Switch P/N:TS-184

$64.99

Description

Keep your engine's cooling fan cycling on cue with the Standard Ignition Engine Cooling Fan Switch TS-184, a coolant-temperature-activated Standard Ignition switch built as a direct-fit replacement for the listed applications. It fits many vehicles, among them the 1987-1991 Toyota Camry, 1987-1993 Toyota Tercel and 1992 Toyota Paseo; see the "Vehicles it fits" section for the full list.

It reads engine coolant temperature and closes an electrical contact at its calibrated set point, telling the fan controller to run the cooling fan.

Wax-actuated design: a custom wax formulation expands when heated to activate a snap-action electrical contact and transfer the signal to the fan controller.
Factory-calibrated: every thermal switch is calibrated and tested to confirm actuation at its specified lower-temperature set point.
Bimetallic contact arm: a creep-action device that uses the different expansion rates of two fused metals for precise contact movement.
Robust build: high-grade materials engineered to meet the demands of today's service professional.

A cooling fan that won't switch on, one that runs constantly, or engine overheating can be signs this switch may need replacing—if a failed switch is the cause, this replaces it. Diagnose the cause before ordering.

Interchange: 17-1099
171099 · 19021197 · TFS560 · 8508 · SW539 · FS211 · TS184T · 8942810090 · 8942810100 · 8942810110 · 8942820060

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

19021197, TFS560, 8508, SW539, FS211, 17-1099, TS-184, TS184T, 8942810090, 8942810100, 8942810110, 8942820060

Buyer's Q&A

Frequently Asked Questions

What does the Standard Ignition TS-184 cooling fan switch do?

It senses engine coolant temperature and closes an electrical contact at its calibrated set point, signaling the fan controller to switch the cooling fan on.

Which vehicles does the TS-184 fit?

It fits many vehicles, including the 1987-1991 Toyota Camry, 1987-1993 Toyota Tercel and 1992 Toyota Paseo. See the "Vehicles it fits" section for the full list and to confirm your engine.

What are signs this switch may need replacing?

A cooling fan that won't turn on, one that runs constantly, or engine overheating can point to the switch, though other causes are possible—diagnose before replacing.

How is this switch activated?

A custom wax formulation expands when heated to trigger a snap-action contact, and a bimetallic creep-action arm provides precise movement, transferring the signal to the fan controller.

What numbers does the TS-184 replace?

It interchanges with 17-1099, 171099, 19021197, TFS560, 8508, SW539, FS211, TS184T, 8942810090, 8942810100, 8942810110 and 8942820060.
