Cooling Fan Switch for 1994-1996 Jaguar XJ12 & More - Standard Ignition TS-526

$103.99

Standard Ignition Engine Cooling Fan Switch TS-526

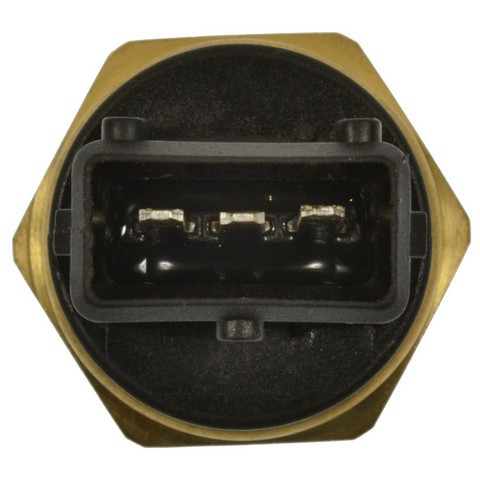

Standard Ignition Engine Cooling Fan Switch TS-526 - view 2

Standard Ignition Engine Cooling Fan Switch TS-526 - view 3

Part number: TS-526

UPC: 091769804756

Condition: New

Weight: 0.10 LBS

Item Package Quantity: 1

$103.99

Current Stock: 8

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

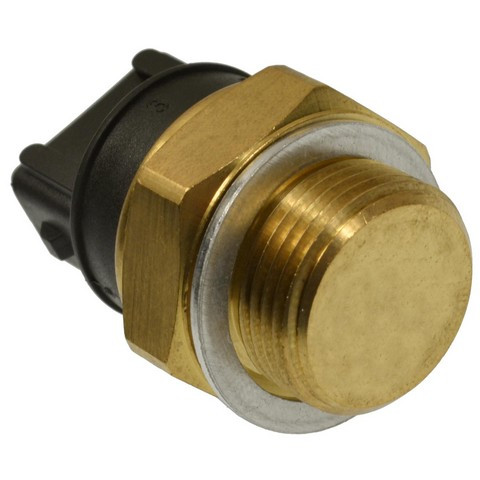

Standard Ignition Engine Cooling Fan Switch P/N:TS-526

$103.99

Description

Standard Ignition TS-526 cooling fan switch for the 1994-1996 Jaguar XJ12 and other vehicles signals the fan controller when the engine reaches the switch's set temperature.

Custom wax formulation expands when heated and triggers a snap-action electrical contact
Wax pellets are formed for each temperature range specification
Every unit is calibrated and tested to confirm switch actuation at its specified temperature
Plug-in attachment with a rectangular female connector

Quick facts

Part: Standard Ignition TS-526 cooling fan switch
Also called: engine cooling fan switch
Fits: 1994-1996 Jaguar XJ12 and other vehicles
Material: Metal housing
Condition: New

A fan that never starts, one that runs all the time, or a temperature reading that climbs at idle can mean the switch is failing. These signs alone do not prove the switch is the problem; a blown fan fuse is another common cause.

Fits

This cooling fan switch is a direct-fit replacement for the 1994-1996 Jaguar XJ12 and the 1990-1996 Jaguar XJ6.

Specifications

Fit and size

Quantity per vehicle: 1
Thread size: 22MMX1.50
Overall width: 21.336 mm (0.84 in)
Voltage: 12 V
Terminals: 3, male blade
Connector: 1, rectangular, female

Build and materials

Housing material: Metal
Finish: Brass, plastic
Attachment method: Plug in
Open at idle: Yes
Condition: New
Country of origin: Spain

In the box

One cooling fan switch. The wiring harness, mounting hardware and mounting bracket are not included. This listing holds one switch, and either Jaguar needs just one.

Interchange: TFS601 · SW4374 · FS246 · DBC10013

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

TFS601, SW4374, FS246, DBC10013, TS-526

Buyer's Q&A

Frequently Asked Questions

Does the Standard Ignition TS-526 fit the 1994-1996 Jaguar XJ12 and the 1990-1996 Jaguar XJ6?

Yes. The Standard Ignition TS-526 cooling fan switch fits the 1994-1996 Jaguar XJ12 and the 1990-1996 Jaguar XJ6, and either car needs just one switch.

Does this Standard Ignition switch come with a wiring harness?

No. The listing is one cooling fan switch. The wiring harness, mounting hardware and mounting bracket are not included.

What thread does this engine cooling fan switch have?

The Standard Ignition TS-526 has a 22MMX1.50 thread. It connects through a plug-in rectangular connector with three blade terminals and works on 12 volts.

What makes the switch close at the right temperature?

Wax pellets formed for a given temperature range expand when heated and trigger a snap-action electrical contact. Each unit is calibrated and tested to actuate at its specified temperature.

Can a fan that never switches on come from a faulty cooling fan switch?

It can, if the switch is faulty. A fan stuck off or running all the time can be a sign, and a shop can test the switch.
