Left VVT Sprocket for 1998-2001 Toyota Corolla & More - Standard Ignition VVT529

$252.99

Vehicles this part fits

    Part number: VVT529
    UPC: 727943808073
    Condition: New
    Weight: 2.30 LBS
    Item Package Quantity: 1
    $252.99
    Adding to cart… The item has been added

    Have questions?

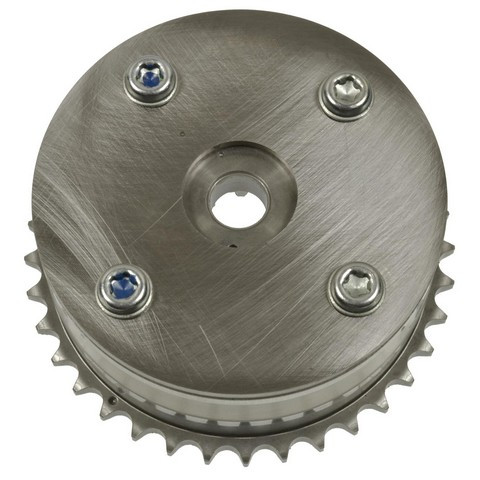

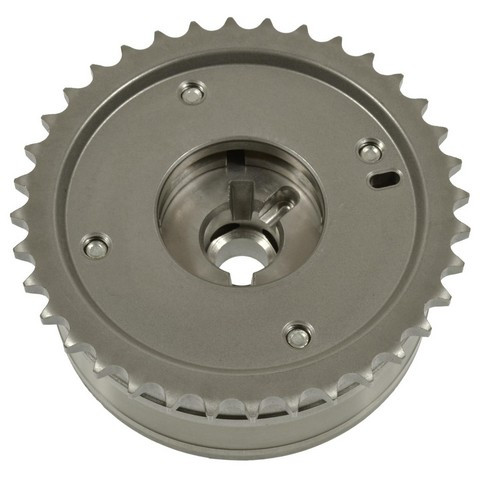

    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT529
    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT529
    $252.99
    $252.99

    Standard Ignition VVT529 VVT sprocket for the 1998-2001 Toyota Corolla 4-cylinder 1.8L and other vehicles is the toothed sprocket in the engine's variable valve timing system. It is a direct-fit OE replacement, and some catalogs list it as an engine variable valve timing vvt sprocket.

    • Precision-machined for accurate variable valve timing
    • 36 teeth with profiles shaped for quiet operation
    • Designed to lower leakage and lash for noise-free operation
    • 100% end-of-line testing

    Quick facts

    • Part: Standard Ignition VVT529 VVT sprocket
    • Also called: engine variable valve timing vvt sprocket
    • Fits: 1998-2001 Toyota Corolla 4-cylinder 1.8L and other vehicles
    • Material: Metal
    • Condition: New

    A rough idle, drivability problems or noise from the timing area can mean the sprocket is worn. Before you replace it, rule out other causes with similar signs, such as ignition or vacuum faults, so the sprocket is not changed for nothing.

    Fits

    The 1998-2001 Toyota Corolla 4-cylinder 1.8L, the 2003-2008 Toyota Matrix 4-cylinder 1.8L and the 2003-2008 Pontiac Vibe 4-cylinder 1.8L take this sprocket, and so do other vehicles. Each takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Number of teeth: 36
    • Outside diameter: 93.218 mm (3.67 in)
    • Inside diameter: 33.782 mm (1.33 in)
    • Lug hole diameter: 11.176 mm (0.44 in)
    • Thickness: 4.064 mm (0.16 in)
    • Mounting hole quantity: 1

    Build and materials

    • Material: Metal
    • Keyway notch: Yes
    • Number of timing marks: 1
    • Condition: New
    • Country of origin: China

    In the box

    One VVT sprocket and one bolt. A washer is not included.

    Installation notes

    • The bolt is OE-style, which eases installation where applicable.

    Interchange: 35-1329
    VV5029 · VVTB10148 · ECP1734 · 19205532 · 88974840 · 94859425 · 94859426 · 94859529 · 130500D010 · 1305022010 · 1305022011 · 1305022012

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    VV5029, VVTB10148, ECP1734, 19205532, 88974840, 94859425, 94859426, 94859529, 35-1329, VVT529, 130500D010, 1305022010, 1305022011, 1305022012

    Frequently Asked Questions

    Is the Standard Ignition VVT529 VVT sprocket right for a 2003-2008 Toyota Matrix 4-cylinder 1.8L?

    Yes. Standard Ignition VVT529 fits the 2003-2008 Toyota Matrix 4-cylinder 1.8L, one per engine. If your car is not named on this page, look it up in the "Vehicles it fits" section.

    Does the VVT529 sprocket come with a bolt?

    Yes. This VVT sprocket comes with one installation bolt. A washer is not included.

    How many teeth does the Standard Ignition VVT529 have?

    Standard Ignition VVT529 has 36 teeth, a 93.218 mm (3.67 in) outside diameter and a 33.782 mm (1.33 in) inside diameter.

    Why would an engine with a worn VVT sprocket idle rough?

    A worn or damaged sprocket can upset valve timing, which can show up as a rough idle or noise from the timing area. Tests that need the engine running are best left to a shop.

    Is 130500D010 an interchange number for this VVT sprocket?

    Yes. 130500D010 is on this sprocket's interchange list, along with 35-1329, VV5029 and several other numbers shown at the end of the page.
