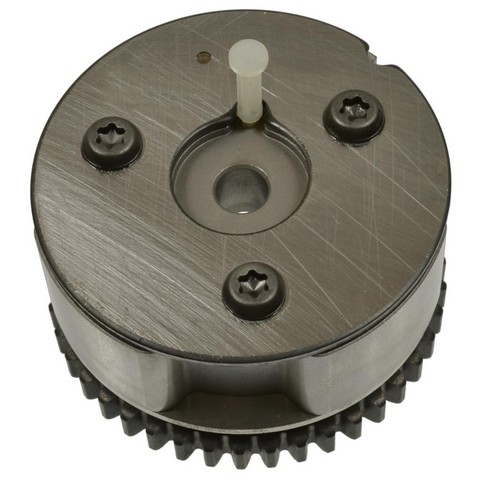

Standard Ignition VVT540 VVT sprocket for the 2009-2015 Nissan Versa 4-cylinder 1.6L and other vehicles replaces the intake sprocket in the engine's variable valve timing system. Some catalogs list it as an engine variable valve timing VVT sprocket.
- Precision-machined for accurate variable valve timing
- Designed to lower leakage and lash for noise-free operation
- 42-tooth profile for quiet operation
- 100% end-of-line testing on every sprocket
Quick facts
- Part: Standard Ignition VVT540 VVT sprocket
- Also called: engine variable valve timing VVT sprocket
- Fits: 2009-2015 Nissan Versa 4-cylinder 1.6L and other vehicles
- Position: Intake
- Material: Metal
- Condition: New
A rough idle, a rattle from the timing area or a valve-timing warning light can point to a worn sprocket. These signs alone do not prove the sprocket is at fault, since a stretched timing chain can produce similar symptoms. The engine takes one sprocket, on the intake side.
Fits
It is a direct-fit replacement for the 2009-2015 Nissan Versa 4-cylinder 1.6L and the 2014-2015 Nissan Versa Note 4-cylinder 1.6L.
Specifications
Fit and size
- Position: Intake
- Quantity per vehicle: 1
- Number of teeth: 42
- Outside diameter: 82.296 mm (3.24 in)
- Inside diameter: 27.686 mm (1.09 in)
- Thickness: 8.382 mm (0.33 in)
- Mounting holes: 1
- Lug hole diameter: 9.906 mm (0.39 in)
- Timing marks: 4
Build and materials
- Material: Metal
- Keyway notch: Yes
- Adjustable: No
- Condition: New
- Country of origin: Japan
In the box
One VVT sprocket. Mounting hardware is not included, so plan on new bolts, since the old ones may not be reusable.
Interchange: 35-1338
VV5040 · VVTB10153 · ECP1742 · 13025ED000 · 13025ED00B
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
VV5040, VVTB10153, ECP1742, 13025ED000, 13025ED00B, 35-1338, VVT540
Frequently Asked Questions
Is the Standard Ignition VVT540 VVT sprocket right for the 2014-2015 Nissan Versa Note 4-cylinder 1.6L?
Yes. Standard Ignition VVT540 fits the 2014-2015 Nissan Versa Note 4-cylinder 1.6L, as well as the 2009-2015 Nissan Versa 4-cylinder 1.6L.
Does the VVT540 come with an installation bolt?
No. This listing is one VVT sprocket and hardware is not included, so plan on new bolts rather than reusing the old ones.
How many teeth does this VVT sprocket have?
It has 42 teeth in one row, with an outside diameter of 82.296 mm (3.24 in) and an inside diameter of 27.686 mm (1.09 in).
Does the VVT540 sprocket replace number 13025ED000?
Yes. 13025ED000 is one of the numbers this Standard Ignition VVT540 sprocket replaces, and 13025ED00B is another.
Is each Standard Ignition VVT540 sprocket tested at the end of the line?
Yes. Each Standard Ignition VVT540 sprocket goes through 100% end-of-line testing, and its 42-tooth profile is made for quiet operation.
