VVT Sprocket for 2005-2019 Nissan Frontier & More - Standard Ignition VVT548

$679.99

Vehicles this part fits

    Part number: VVT548
    UPC: 727943967695
    Condition: New
    Weight: 3.76 LBS
    Item Package Quantity: 1
    $679.99
    Adding to cart… The item has been added

    Have questions?

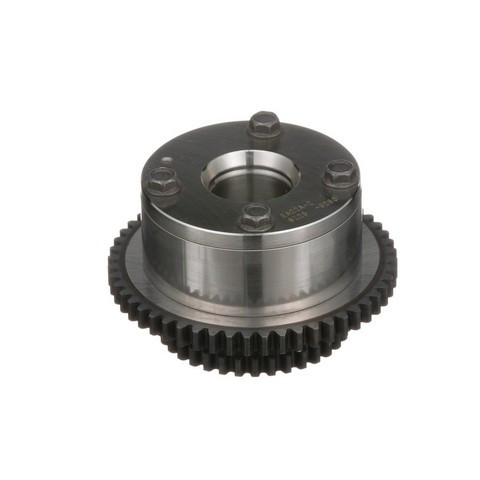

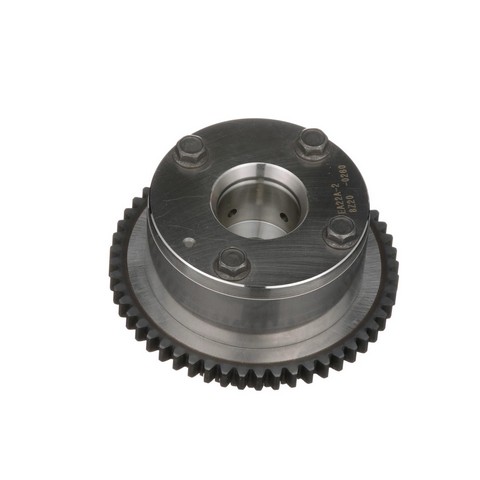

    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT548
    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT548
    $679.99
    $679.99

    Standard Ignition VVT548 VVT sprocket for the 2005-2019 Nissan Frontier V6 4.0L and other vehicles adjusts valve timing on the intake side. This direct-fit OE replacement is intended to help restore drivability, lower emissions and improve efficiency when a worn sprocket is the cause. Some catalogs list it as an engine variable valve timing VVT sprocket.

    • 52 teeth with tooth profiles matched for quiet operation
    • Designed to lower leakage and lash for noise-free operation
    • Precision-machined for accurate variable valve timing
    • Every sprocket undergoes 100% end-of-line testing

    Quick facts

    • Part: Standard Ignition VVT548 VVT sprocket
    • Also called: engine variable valve timing vvt sprocket
    • Fits: 2005-2019 Nissan Frontier V6 4.0L and other vehicles
    • Position: Intake
    • Material: Metal
    • Condition: New

    Rough idle, a rattle at the front of the engine or a check engine light can come from a worn VVT sprocket, but they have other causes too. Find the cause first: with the engine off and cool, look at the sprocket teeth for chips or wear where you can reach them, and leave running tests to a shop.

    Fits

    The vehicles it fits include the 2005-2019 Nissan Frontier V6 4.0L, the 2005-2012 Nissan Pathfinder V6 4.0L and the 2012-2021 Nissan NV3500 V6 4.0L, and all of them take two sprockets, so order two.

    Specifications

    Fit and size

    • Position: Intake
    • Quantity per vehicle: 2
    • Number of teeth: 52
    • Outside diameter: 102.616 mm (4.04 in)
    • Inside diameter: 28.702 mm (1.13 in)
    • Lug hole diameter: 11.43 mm (0.45 in)
    • Thickness: 8.128 mm (0.32 in)
    • Tooth width: 8.128 mm (0.32 in)
    • Mounting hole quantity: 1

    Build and materials

    • Material: Metal
    • Number of timing marks: 4
    • Condition: New
    • Country of origin: China

    In the box

    One VVT sprocket. Mounting hardware is not included, so plan on new bolts.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the Standard Ignition VVT548 fit a 2012-2021 Nissan NV3500 V6 4.0L?

    Yes. Standard Ignition VVT548 is listed for the 2012-2021 Nissan NV3500 V6 4.0L, which takes two. Use the "Vehicles it fits" section to check your own vehicle if it is not named here.

    How many teeth and what outside diameter does this VVT sprocket have?

    This VVT sprocket has 52 teeth and a 102.616 mm (4.04 in) outside diameter. Its inside diameter is 28.702 mm (1.13 in) and its thickness is 8.128 mm (0.32 in).

    Does the Standard Ignition VVT548 come with mounting bolts?

    No. Standard Ignition VVT548 is one VVT sprocket, and mounting hardware is not included, so plan on new bolts.

    Can a rough idle come from a worn VVT sprocket?

    Yes, it can, but a rough idle has other causes too. A rattle or a check engine light are other signs, and a shop can test the system with the engine running.

    Is each VVT sprocket tested before sale?

    Yes. Every sprocket goes through 100% end-of-line testing, and its tooth profiles are designed for quiet operation.
