Right VVT Sprocket for 2017-2018 Toyota 86 - Standard Ignition VVT684

$395.99

Vehicles this part fits

    Part number: VVT684
    UPC: 033086397573
    Condition: New
    Weight: 3.40 LBS
    Item Package Quantity: 1
    $395.99
    Adding to cart… The item has been added

    Have questions?

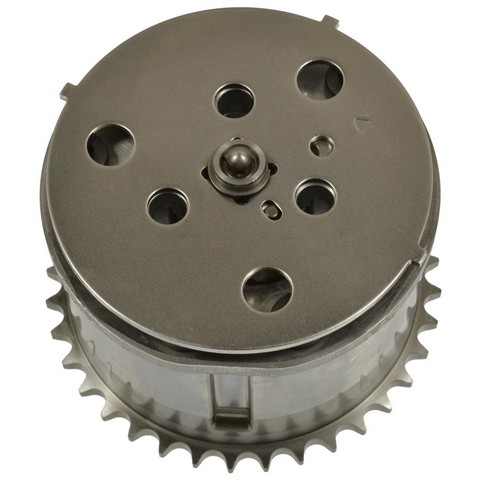

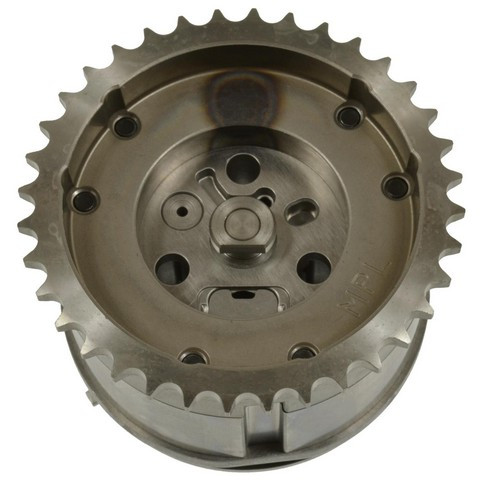

    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT684
    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT684
    $395.99
    $395.99

    Standard Ignition VVT684 right VVT sprocket for the 2017-2018 Toyota 86 H4 2.0L adjusts camshaft timing as engine conditions change. If a worn sprocket is behind a rough idle or poor drivability, this one replaces it.

    • Precision-machined for accurate variable valve timing
    • Designed to lower leakage and lash, which supports noise-free operation
    • 36-tooth profile made for quiet operation
    • 100% end-of-line testing on every sprocket

    Quick facts

    • Part: Standard Ignition VVT684 VVT sprocket
    • Also called: engine variable valve timing VVT sprocket
    • Fits: 2017-2018 Toyota 86 H4 2.0L
    • Position: Intake (right)
    • Material: Metal
    • Condition: New

    A worn or failing VVT sprocket can show up as a rough idle, a rattle at start-up or a check engine light. These signs alone do not prove the sprocket is at fault, since a failing VVT solenoid can produce similar ones.

    Fits

    This sprocket is a direct-fit replacement for the 2017-2018 Toyota 86 H4 2.0L, in the right intake position.

    Specifications

    Fit and size

    • Position: Intake (right)
    • Quantity per vehicle: 1
    • Outside diameter: 93.726 mm (3.69 in)
    • Inside diameter: 45.212 mm (1.78 in)
    • Thickness: 4.064 mm (0.16 in)
    • Number of teeth: 36
    • Mounting hole quantity: 1
    • Number of timing marks: 5

    Build and materials

    • Material: Metal
    • Number of rows: 1
    • Keyway notch: Yes
    • Condition: New
    • Country of origin: Japan

    In the box

    One VVT sprocket. This listing is one sprocket, and the right intake side of the 2017-2018 Toyota 86 H4 2.0L takes one. Mounting hardware is not included, so plan on new bolts, since the old ones may not be reusable.

    Interchange: 35-1481
    VV5189 · VVTC20064 · ECP1886 · SU00306450 · SU00311395

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    VV5189, VVTC20064, ECP1886, 35-1481, VVT684, SU00306450, SU00311395

    Frequently Asked Questions

    Does the Standard Ignition VVT684 sprocket fit the 2017-2018 Toyota 86 H4 2.0L?

    Yes. Standard Ignition VVT684 is a direct-fit replacement for the 2017-2018 Toyota 86 H4 2.0L, in the right intake position.

    Does this VVT sprocket come with mounting bolts?

    No. Mounting hardware is not included, so plan on new bolts. This listing is one sprocket for the right intake side.

    How many teeth does this engine variable valve timing VVT sprocket have?

    The Standard Ignition VVT684 has 36 teeth in one row, with a keyway notch. It is not adjustable.

    What does a worn right-side VVT sprocket sound or feel like?

    Rough idle, a rattle at start-up or a check engine light can mean a worn VVT sprocket. A shop can confirm it, because testing the VVT system needs the engine running.

    What are the diameter and thickness of the Standard Ignition VVT684?

    Outside diameter is 93.726 mm (3.69 in), inside diameter is 45.212 mm (1.78 in) and thickness is 4.064 mm (0.16 in).
