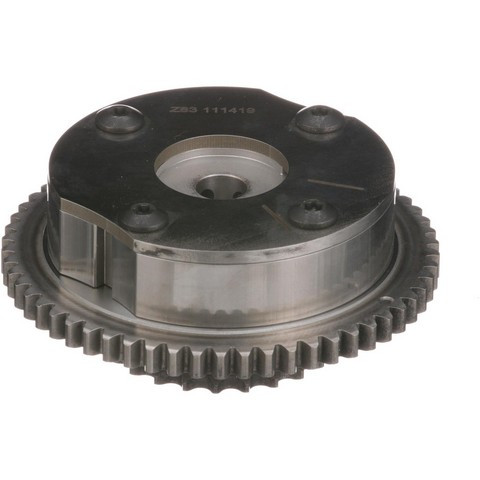

Standard Ignition VVT555 VVT sprocket for the 2011-2014 Ford F-150 V6 3.7L, the 2011-2017 F-150 V6 3.5L, the 2018-2023 F-150 V6 3.3L and other vehicles is the toothed intake-side sprocket in the engine's variable valve timing system.
- Designed to lower leakage and lash for noise-free operation
- 58 teeth with tooth profiles built for quiet operation
- Precision-machined for accurate variable valve timing
- 100% end-of-line testing
Quick facts
- Part: Standard Ignition VVT555 VVT sprocket
- Also called: engine variable valve timing vvt sprocket
- Fits: 2011-2014 Ford F-150 V6 3.7L, the 2011-2017 F-150 V6 3.5L, the 2018-2023 F-150 V6 3.3L and other vehicles
- Position: Intake
- Material: Metal
- Condition: New
A worn sprocket can show up as a rough idle, a rattle near the timing drive or a timing-related warning light. A variable timing solenoid or a sensor can be behind the same signs, so find the cause before you buy. Some catalogs list this part as an engine variable valve timing vvt sprocket.
Fits
This listing is one sprocket, a direct-fit OE replacement for vehicles that include the 2011-2019 Ford Explorer V6 3.5L, the 2020-2023 Explorer V6 3.3L, the 2021 Explorer V6 3.0L and the 2011-2017 Ford Mustang V6 3.7L. Most take two per vehicle and a few take one. If your car isn't named here, open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Intake
- Quantity per vehicle: 2 on most applications, 1 on some
- Outside diameter: 114.554 mm (4.51 in)
- Inside diameter: 34.798 mm (1.37 in)
- Thickness: 8.128 mm (0.32 in)
- Number of teeth: 58
- Lug hole diameter: 12.7 mm (0.5 in)
- Mounting hole quantity: 1
Build and materials
- Material: Metal
- Keyway notch: Yes
- Number of timing marks: 4
- Condition: New
- Country of origin: China
In the box
One VVT sprocket with its OE-style installation bolt. A washer is not included.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is the Standard Ignition VVT555 sprocket right for a 2011-2014 Ford F-150 V6 3.7L?
Yes. Standard Ignition VVT555 fits the 2011-2014 Ford F-150 V6 3.7L, and also the 2011-2017 F-150 V6 3.5L and the 2018-2023 F-150 V6 3.3L.
How many VVT555 sprockets does a 2011-2017 Ford Mustang V6 3.7L take?
The 2011-2017 Ford Mustang V6 3.7L takes two. This Standard Ignition VVT555 listing is one sprocket.
Does the Standard Ignition VVT555 VVT sprocket come with a bolt?
Yes. It comes with an OE-style installation bolt. A washer is not included.
How many teeth and what diameters does this intake VVT sprocket have?
It has 58 teeth, a 114.554 mm (4.51 in) outside diameter and a 34.798 mm (1.37 in) inside diameter, plus a keyway notch.
Is the VVT555 sprocket tested before use?
Yes. Standard Ignition puts the VVT555 through 100% end-of-line testing to meet or exceed OE performance.
