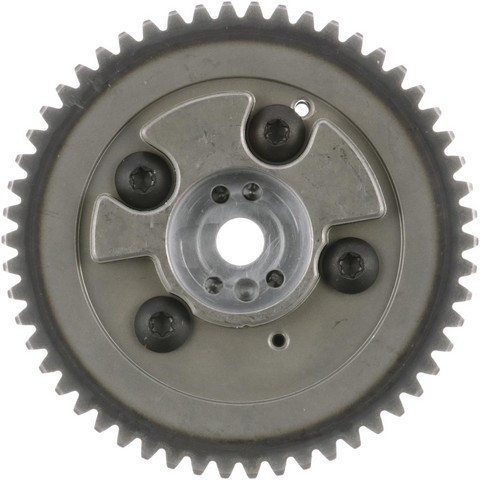

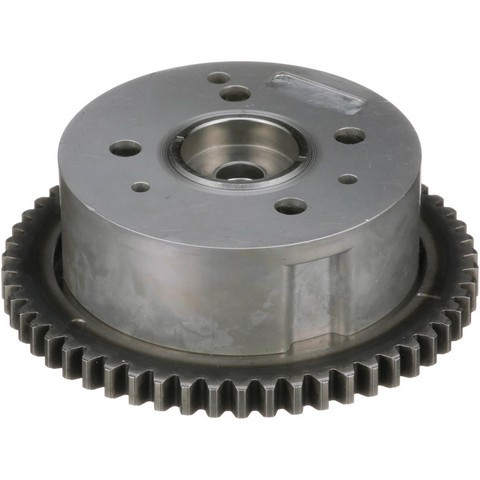

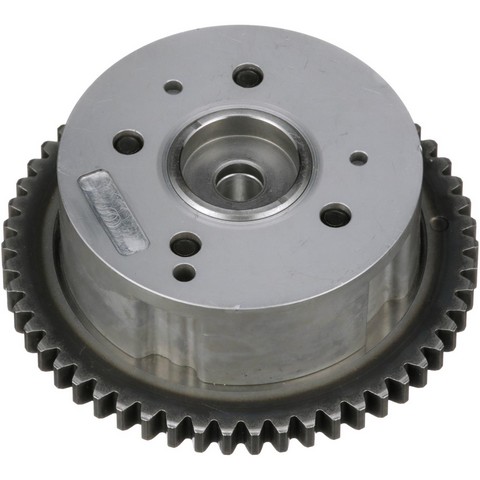

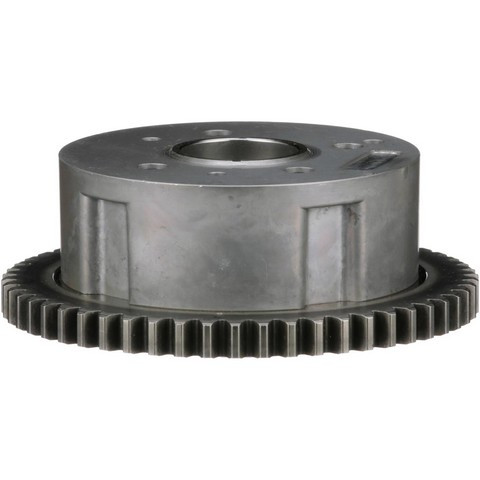

Standard VVT557 VVT sprocket for the 2009-2018 Dodge Journey 4-cylinder 2.4L and other vehicles helps the engine adjust intake valve timing. It is also called an engine variable valve timing VVT sprocket.
- Designed to lower leakage and lash for quieter running
- 54 teeth with tooth profiles made for quiet operation
- Precision-machined for accurate variable valve timing
- Every sprocket goes through 100% end-of-line testing
Quick facts
- Part: Standard VVT557 VVT sprocket
- Also called: engine variable valve timing vvt sprocket
- Fits: 2009-2018 Dodge Journey 4-cylinder 2.4L and other vehicles
- Position: Intake
- Material: Metal
- Condition: New
A rough idle, noise from the timing area or poor drivability can mean the sprocket is worn, though a faulty VVT solenoid or camshaft position sensor can be behind the same complaints, so find the cause before you replace anything.
Fits
This sprocket is listed across Dodge, Jeep and Chrysler models, including the 2007-2017 Jeep Compass 4-cylinder 2.0L or 2.4L and the 2007-2017 Jeep Patriot 4-cylinder 2.0L or 2.4L, as a direct-fit replacement. This listing is one sprocket, and the 2009-2018 Dodge Journey 4-cylinder 2.4L takes one. If your car is not named here, look it up by year and engine on the Buyer's Guide tab.
Specifications
Fit and size
- Position: Intake
- Quantity per vehicle: 1
- Outside diameter: 106.68 mm (4.2 in)
- Inside diameter: 31.75 mm (1.25 in)
- Lug hole diameter: 10.414 mm (0.41 in)
- Thickness: 8.128 mm (0.32 in)
- Tooth width: 8.128 mm (0.32 in)
- Number of teeth: 54
- Mounting hole quantity: 1
- Number of timing marks: 3
Build and materials
- Material: Metal
- Keyway notch: Yes
- Condition: New
- Country of origin: China
In the box
One VVT sprocket. The installation bolt is not included, so plan on a new one, since the old bolt may not be reusable.
