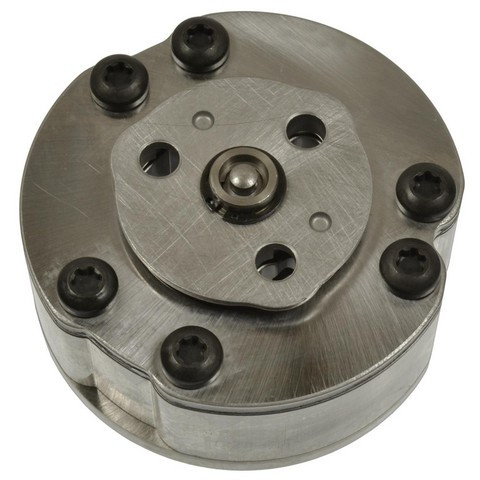

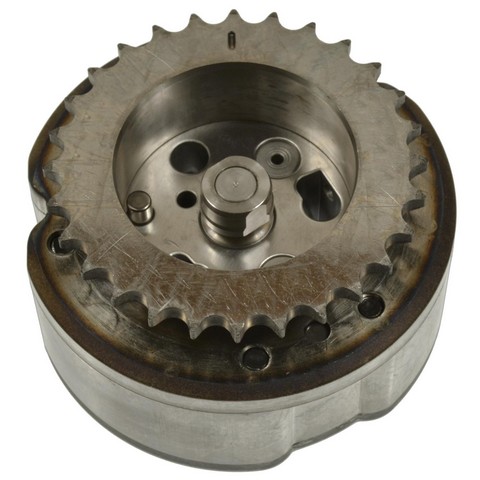

Standard Ignition VVT575 VVT sprocket for the 2015-2020 Ford F-150 V8 5.0L and other vehicles helps adjust intake valve timing. It is also called an engine variable valve timing VVT sprocket.
- Designed to lower leakage and lash, which supports quiet operation
- 30-tooth sprocket with a tooth profile made for quiet operation
- Precision-machined for accurate variable valve timing
- Every sprocket goes through 100% end-of-line testing
Quick facts
- Part: Standard Ignition VVT575 VVT sprocket
- Also called: engine variable valve timing VVT sprocket
- Fits: 2015-2020 Ford F-150 V8 5.0L and other vehicles
- Position: Intake
- Material: Metal
- Condition: New
A rough idle, noise from the timing area or poor drivability can come from a worn VVT sprocket, but other parts cause the same signs. Before replacing it, look over the timing cover area with the engine off and cool for oil leaks. A shop can test VVT operation, which needs the engine running.
Fits
It is a direct-fit OE replacement for the 2015-2020 Ford F-150 V8 5.0L, the 2023-2025 F-150 V8 5.2L, the 2015-2017 Ford Mustang V8 5.2L, the 2015-2019 Mustang V8 5.0L and the 2020-2022 Mustang V8 5.2L. The quantity per vehicle is two, and this listing is one sprocket.
Specifications
Fit and size
- Position: Intake
- Quantity per vehicle: 2
- Outside diameter: 85.852 mm (3.38 in)
- Inside diameter: 45.212 mm (1.78 in)
- Thickness: 4.064 mm (0.16 in)
- Tooth width: 4.064 mm (0.16 in)
- Number of teeth: 30
- Mounting holes: 6
- Timing marks: 3
Build and materials
- Material: Metal
- Number of rows: 1
- Keyway notch: Yes
- Condition: New
- Country of origin: China
In the box
One VVT sprocket. Mounting bolts are not included, so plan on new bolts rather than reusing the old ones.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is the Standard Ignition VVT575 the right VVT sprocket for a 2015-2020 Ford F-150 V8 5.0L?
Yes. Standard Ignition VVT575 is a direct-fit OE replacement for the 2015-2020 Ford F-150 V8 5.0L, and it also fits the 2023-2025 F-150 V8 5.2L.
Does this VVT sprocket fit the 2020-2022 Ford Mustang V8 5.2L?
Yes. Standard Ignition VVT575 fits the 2020-2022 Ford Mustang V8 5.2L, and it also covers the 2015-2019 Mustang V8 5.0L.
Does the VVT575 sprocket come with mounting bolts?
No. This listing is one sprocket with no hardware, so plan on new bolts rather than reusing the old ones.
How many teeth and mounting holes does this intake VVT sprocket have?
It has 30 teeth and 6 mounting holes. The outside diameter is 85.852 mm (3.38 in) and the inside diameter is 45.212 mm (1.78 in).
How is the Standard Ignition VVT575 tested before it ships?
Each sprocket goes through 100% end-of-line testing to meet or exceed OE performance. Its OE-matching tooth profile is made for quiet operation.
