VVT Sprocket for 2018-2023 Chevrolet Equinox & More - Standard Ignition VVT632

$214.99

Vehicles this part fits

    Part number: VVT632
    UPC: 033086321929
    Condition: New
    Weight: 1.48 LBS
    Item Package Quantity: 1
    $214.99
    Adding to cart… The item has been added

    Have questions?

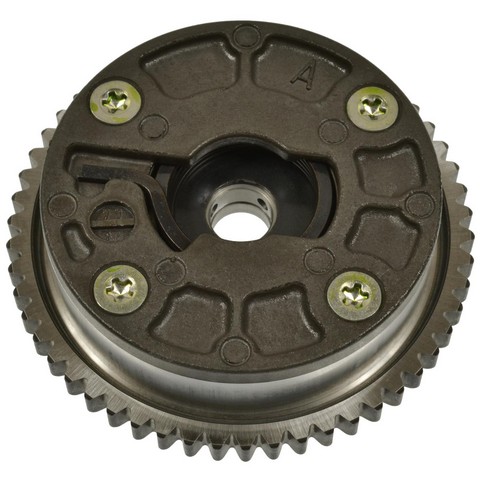

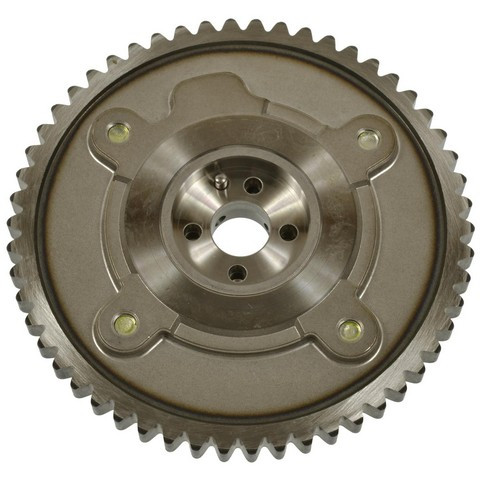

    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT632
    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT632
    $214.99
    $214.99

    Standard Ignition VVT632 VVT sprocket for the 2018-2023 Chevrolet Equinox 4-cylinder 1.5L and other vehicles is part of the engine's variable valve timing system, which adjusts when the valves open and close. It is also sold as an engine variable valve timing VVT sprocket.

    • Designed to lower leakage and lash for noise-free operation
    • 54-tooth profile shaped for quiet operation
    • Precision-machined for accurate variable valve timing
    • 100% end-of-line testing on every unit
    • Four timing marks and a keyway notch

    Quick facts

    • Part: Standard Ignition VVT632 VVT sprocket
    • Also called: engine variable valve timing vvt sprocket
    • Fits: 2018-2023 Chevrolet Equinox 4-cylinder 1.5L and other vehicles
    • Position: Intake, exhaust
    • Material: Metal
    • Condition: New

    A rough idle, a rattle from the timing area or reduced power can be signs of a worn sprocket. Before you replace it, rule out a stretched timing chain, a sticking VVT solenoid and engine oil that is low or dirty, because those problems can look alike from the driver's seat.

    Fits

    Listed for a wide range of Chevrolet, Buick and GMC models, this sprocket is a direct-fit OE replacement for the 2018-2023 Chevrolet Equinox 4-cylinder 1.5L, which takes one, and for the 2016-2023 Chevrolet Malibu 4-cylinder 1.5L and the 2016-2019 Chevrolet Cruze 4-cylinder 1.4L, which take two each. This listing is one sprocket. If your car is another model, look it up by year and engine in the Vehicles it fits section.

    Specifications

    Fit and size

    • Position: intake, exhaust
    • Quantity per application: 1 or 2, depending on the vehicle
    • Number of teeth: 54, one row
    • Outside diameter: 106.68 mm (4.2 in)
    • Inside diameter: 30.734 mm (1.21 in)
    • Lug hole diameter: 13.208 mm (0.52 in), 1 mounting hole
    • Thickness: 8.128 mm (0.32 in)

    Build and materials

    • Type: variable valve timing sprocket
    • Material: metal
    • Keyway notch: yes
    • Adjustable: no
    • Condition: new
    • Country of origin: China

    In the box

    One VVT sprocket. Mounting hardware is not included, so plan on new bolts.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is the Standard Ignition VVT632 the right VVT sprocket for a 2018-2023 Chevrolet Equinox 4-cylinder 1.5L?

    Yes. Standard Ignition VVT632 is listed for the 2018-2023 Chevrolet Equinox 4-cylinder 1.5L, which takes one. For another model, look up your year and engine in the Vehicles it fits section.

    Does this VVT sprocket come with mounting bolts?

    No. The box holds one sprocket and mounting hardware is not included, so plan on new bolts.

    How many teeth does the Standard Ignition VVT632 have, and how big is it?

    Standard Ignition VVT632 has 54 teeth, a 106.68 mm (4.2 in) outside diameter and a 30.734 mm (1.21 in) inside diameter.

    What can a worn VVT sprocket sound or feel like?

    A rough idle, a rattle from the timing area or reduced power can be signs. A shop can test the VVT system to confirm the cause.

    What is the VVT632 sprocket made of, and where is it made?

    This sprocket's material is listed as metal, and its country of origin is China.
